R E D 3 - A X I S S Y S T E M O P E R AT I O N G U I D E
D

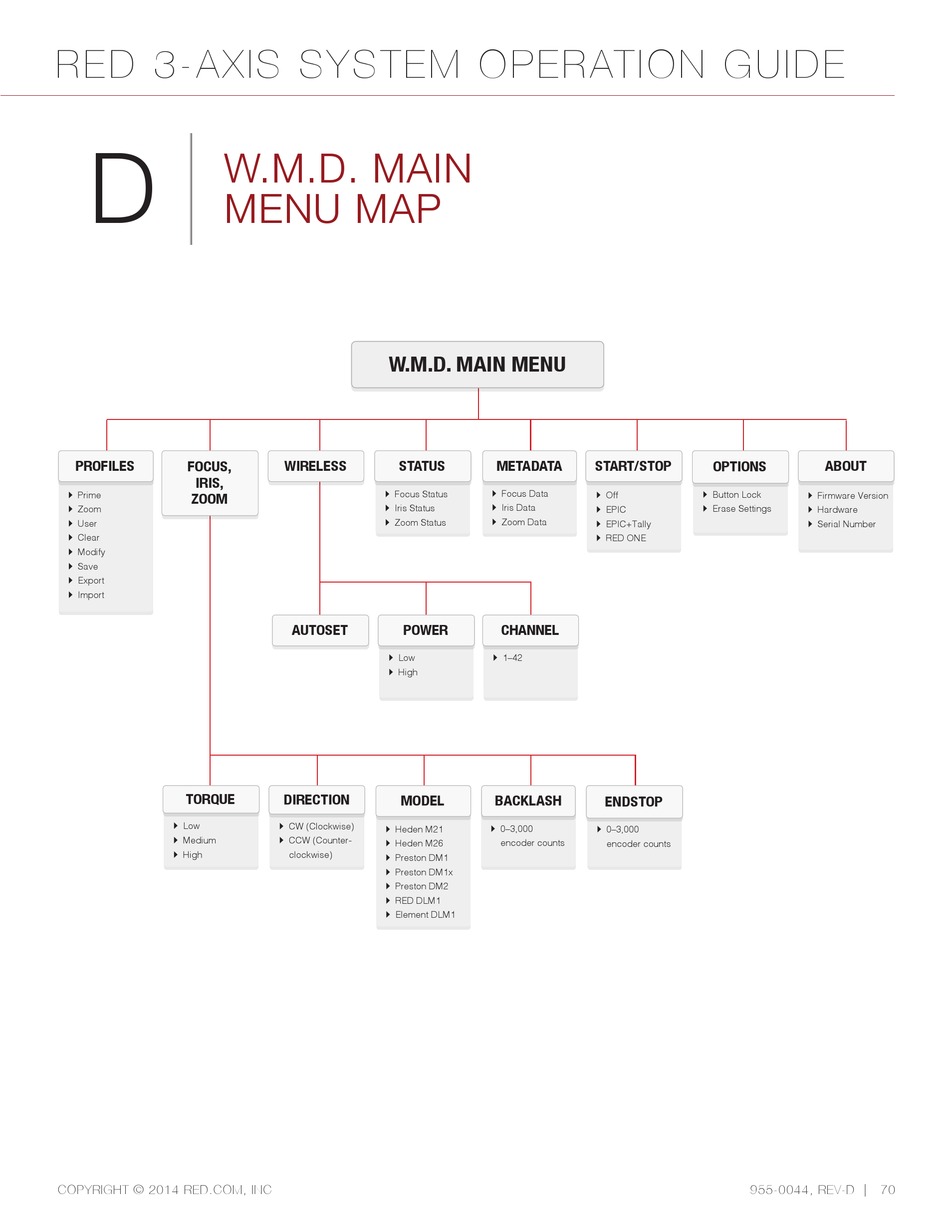

W.M.D. MAIN
MENU MAP
PROFILES
FOCUS,
IRIS,
} Prime
ZOOM
} Zoom
} User
} Clear
} Modify
} Save
} Export
} Import
TORQUE
} Low
} Medium
} High
COPYRIGHT © 2014 RED.COM, INC
W.M.D. MAIN MENU
WIRELESS STATUS
} Focus Status
} Iris Status
} Zoom Status
AUTOSET POWER
} Low
} High
DIRECTION
MODEL
} CW (Clockwise)
} Heden M21
} CCW (Counter-
} Heden M26
clockwise)
} Preston DM1
} Preston DM1x
} Preston DM2
} RED DLM1
} Element DLM1
METADATA START/STOP
} Focus Data
} Off
} Iris Data
} EPIC
} Zoom Data
} EPIC+Tally
} RED ONE
CHANNEL
} 1–42
BACKLASH
ENDSTOP
} 0–3,000
} 0–3,000
encoder counts
encoder counts
ABOUT
OPTIONS
} Button Lock } Firmware Version
} Erase Settings
} Hardware
} Serial Number
