SET A LENS LOCK

The W.M.D. can support wireless communication with up to two (2) T.H.C. units at any given time. Use the lens
function lock feature on the T.H.C. to prevent accidental/unwanted manipulation of that lens function on your
T.H.C. unit.
1. Press and hold the Limit button for the desired lens function for three (3) seconds. DO NOT make adjust-
ments to the knob/slider during this time.
2. Release the Limit button when the corresponding LED flashes green slowly.
The lens function is now locked for that T.H.C. unit. The lens function LED will flash green to signal an ac-
tive lens lock.

REMOVE A LENS LOCK

1. Press and hold the Limit button for the desired lens function for three (3) seconds.
2. Release the Limit button once the corresponding LED becomes solid.
The lens function is now unlocked.
RECORD START/STOP WITH THE T.H.C.
The Battery/Tally LED, near the top of the T.H.C., flashes when the camera is recording.
1. Press and release the Run button to start recording.
2. Press and release the Run button again to stop recording.
NOTE: The Battery/Tally LED serves a dual purpose on the T.H.C. Flashing indicates that the camera is roll-
ing, color indicates battery charge level.
COPYRIGHT © 2014 RED.COM, INC

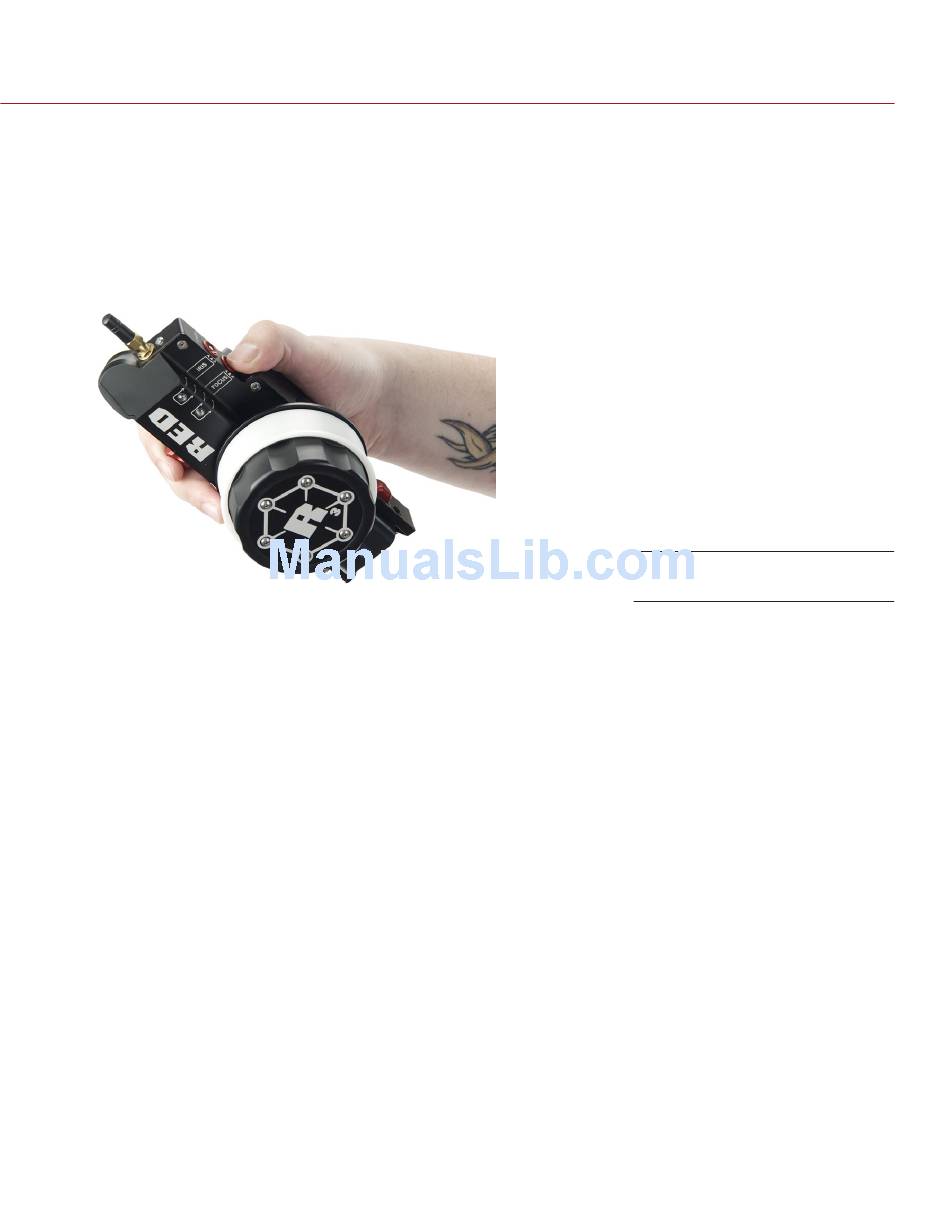

Hold Limit Button for 3 sec
