RED Motion Mount TI PL Operation Manual

Dsmc motion mount
Hide thumbs Also See for Motion Mount TI PL:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
DSMC MOTION MOUNT
O P E R AT I O N G U I D E
M O T I O N M O U N T T I P L
|
M O T I O N M O U N T T I C A N O N
R E D . C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Motion Mount TI PL and is the answer not in the manual?

Questions and answers

Related Manuals for RED Motion Mount TI PL

Summary of Contents for RED Motion Mount TI PL

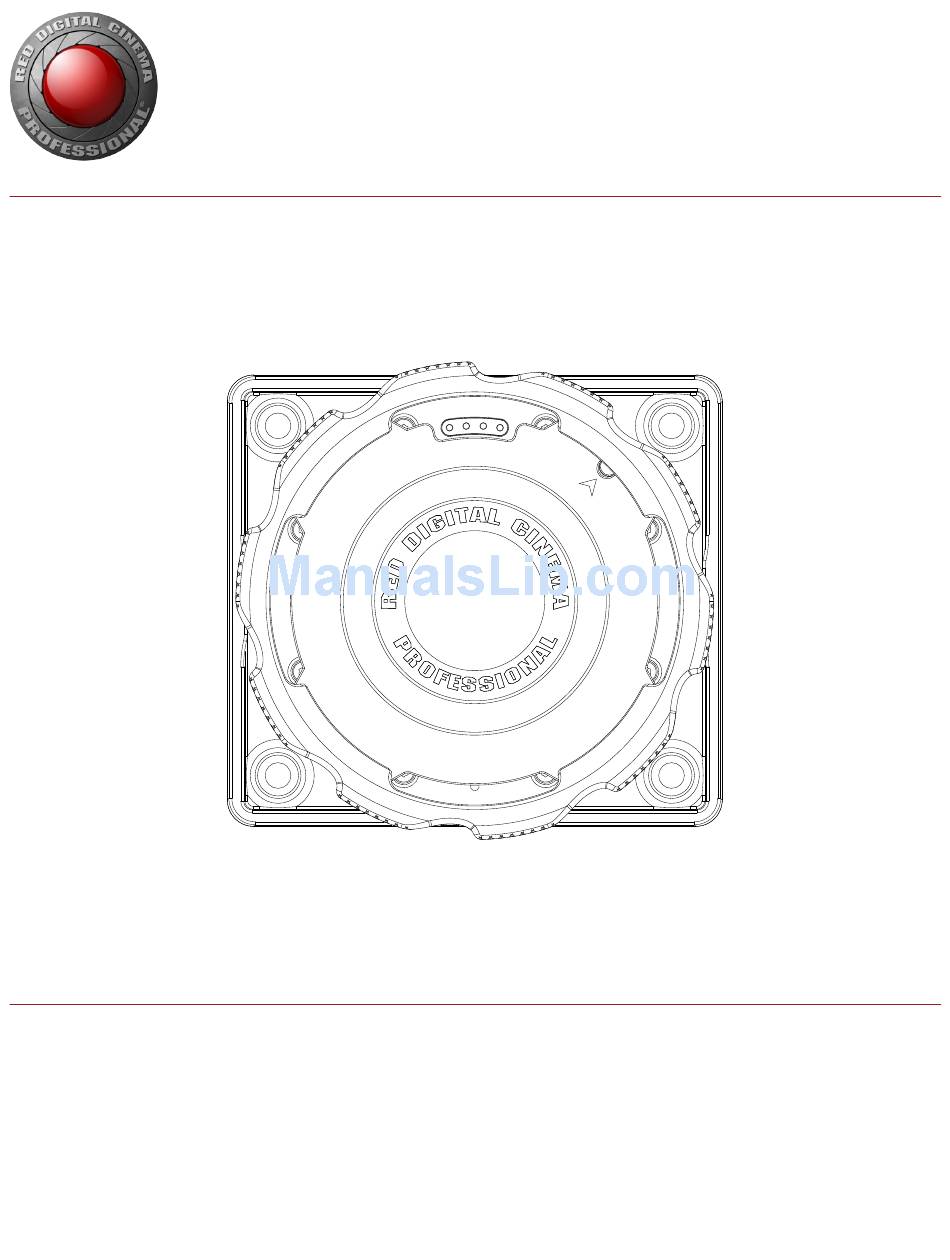

  • Page 1 DSMC MOTION MOUNT O P E R AT I O N G U I D E M O T I O N M O U N T T I P L M O T I O N M O U N T T I C A N O N R E D .

  • Page 2: Table Of Contents

    Chapter 4: MOTION MOUNT Maintenance Clean MOTION MOUNT Glass Storage Appendix A: Technical Specifications MOTION MOUNT TI PL Technical Specifications MOTION MOUNT TI CANON Technical Specifications ND and Shutter Specifications Appendix B: Compatible Lenses and Devices Compatible PL Lenses and Devices Compatible Canon Lenses COPYRIGHT ©...

  • Page 3: Disclaimer

    RED.COM, INC. user’s interpretation of the language used herein that is different from that intended by RED. All safety and general information is...

  • Page 4: Safety Instructions

    DO NOT use the lens mount near water. Avoid exposing your lens mount to moisture. The unit is not waterproof, so contact with water could cause permanent damage to the unit as well COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...

  • Page 5: Chapter 1: Motion Mount Overview

    “square shutter”) eliminates rolling shutter artifacts, such as partial illumination caused by strobes. The global shutter ensures uniform exposure throughout your image, regardless of strobes or motion. For more information about global shutters, check out the Global & Rolling Shutters article available at www.red.com/learn/red-101/ global-rolling-shutter. COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...

  • Page 6: Motion Mount Components

    If there is any physical damage to any of these components or if you are missing any components, please file a support ticket at https://support.red.com. NOTE: The filter and shutter in the MOTION MOUNT TI PL and the MOTION MOUNT TI CANON are identical. The only difference between the two mounts is their lens compatibility.

  • Page 7: Chapter 2: Install Motion Mount

     DSMC AL CANON MOUNT  DSMC AL LEICA MOUNT  DSMC TI NIKON MOUNT  DSMC AL NIKON MOUNT  DSMC MOTION MOUNT TI PL  DSMC MOTION MOUNT TI CANON REMOVE MOUNT Follow the instructions below to remove the lens mount: 1.
  • Page 8 MOTION MOUNT within a few minutes of powering off your DSMC, the glass is yellow and slowly develops blue spots. After a few minutes, the entire glass is blue again. This transition of color from yellow to blue after turn- ing off the DSMC is normal behavior. COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...

  • Page 9: Install Motion Mount

    D S M C M O T I O N M O U N T O P E R AT I O N G U I D E INSTALL MOTION MOUNT Follow the instructions below to install the MOTION MOUNT TI PL or the MOTION MOUNT TI CANON: 1. Turn off the DSMC and remove the lens, power supplies, cables, and any DSMC accessories that may ob- struct access to the lens mount.

  • Page 10: Chapter 3: How To Use The Motion Mount

    Square: The MOTION MOUNT square shutter takes over shuttering duties, and the MOTION MOUNT ‒ continues to function as an ND filter. For more information about the square shutter, go to “Square Shutter” on page MOTION MOUNT Settings COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...

  • Page 11: Neutral Density (Nd) Settings

    Motion Mount screen: “High ND with wide apertures may cause bokeh asymmetry”. For more information about possible bokeh asymmetry, go to “Out-of-Focus Field Modification” on page MOTION MOUNT Settings COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...
  • Page 12 1/45.25 1.66 5.50 1/50.91 1.71 5.67 1/64.00 1.81 6.00 1/81.01 1.91 6.34 1/90.51 1.96 6.50 1/101.83 2.01 6.67 1/128.00 2.11 7.00 1/162.02 2.21 7.34 1/181.02 2.26 7.50 1/203.66 2.31 7.67 1/256.00 2.40 8.00 COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...
  • Page 13 If you select an ND value over 4.00 stops while in ND Only mode, the ND value on the main screen overlay turns yellow, and the following message displays on the Motion Mount screen: “High ND with wide apertures may cause bokeh asymmetry”. High ND Notification COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...

  • Page 14: Shutter Modes

    Square: The MOTION MOUNT square shutter takes over shuttering duties, and the MOTION MOUNT continues to function as an ND filter. For more information about the square shutter, go to “Square Shutter” on page 3. Select the Shutter Angle and Integration Time. Shutter Settings COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...
  • Page 15 The soft shutter angle ranges from 22.5° to 194.4°. The available shutter angle range at any given time depends on the selected frame rate. For the most natural and realistic motion, use a shutter angle of 194.4° when in soft shutter mode. Then, adjust the shutter angle if needed. COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...
  • Page 16 SOFT SHUTTER: STROBE SAFE OPERATION The table below shows the recommended maximum shutter angles when filming strobe lights using the soft shutter mode. RESOLUTION None None None None None None None None None None COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...
  • Page 17 The square shutter angle ranges from 22.5° to 180°. The available shutter angle range at any given time de- pends on the selected frame rate. For the most natural and realistic motion, use a shutter angle of 180° when in square shutter mode. Then, ad- just the shutter angle if needed. COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...
  • Page 18 SQUARE SHUTTER: STROBE SAFE OPERATION The table below shows the recommended maximum shutter angles when filming strobe lights using the square shutter mode. RESOLUTION None None None None None None None None None COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...

  • Page 19: Display Effective Iso

    2. For the Motion Mount ISO Pull setting, select one of the following: On: Display the effective ISO. ‒ ‒ Off: Display actual ISO. 3. After you enable the setting, navigate back to the main screen. The effective ISO is displayed in yellow. COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...
  • Page 20 ISO changes the camera’s native ISO, and NOT the ND value. To view or change the camera’s native ISO, press and hold the ISO value, and the Advanced ISO menu dis- plays. The native ISO is the first value. COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...

  • Page 21: Display Nd Settings

    Motion Mount screen: “High ND with wide apertures may cause bokeh asymmetry”. For more information about possible bokeh asymmetry, go to “Out-of-Focus Field Modification” on page COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...

  • Page 22: Map Keys To Adjust Motion Mount Settings

    Motion Mount: ND Only Changes the Shutter Type to ND ONLY. Motion Mount: Soft Shutter Changes the Shutter Type to Soft. Motion Mount: Square Shutter Changes the Shutter Type to Square. Map Keys for MOTION MOUNT COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...

  • Page 23: Chapter 4: Motion Mount Maintenance

    Do NOT reuse swabs or wipes, since the swab may have picked up dirt or debris from the glass, or from the surface where it was stored. STORAGE When not in use, place the MOTION MOUNT in the DSMC MOUNT BACK CAP that ships with the mount. COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...

  • Page 24: Appendix A: Technical Specifications

    D S M C M O T I O N M O U N T O P E R AT I O N G U I D E TECHNICAL SPECIFICATIONS NOTE: All specifications in this appendix exclude the DSMC MOUNT BODY CAP and DSMC MOUNT BACK CAP. MOTION MOUNT TI PL TECHNICAL SPECIFICATIONS Dimensions Height: 82.0 mm Width: 82.0 mm Depth: 36.2 mm...

  • Page 25: Nd And Shutter Specifications

    Optical Density Range 0.48–2.40 (1.60–8.00 stops) (in ND Only mode) Square Shutter (Global Shutter) 22.5°–180° Angle Range Soft Shutter Angle Range 22.5°–194.4° Maximum Frame Rate 120 fps (when MOTION MOUNT shutter is enabled) COPYRIGHT © 2013 RED.COM, INC 955-0013, REV-C...

  • Page 26: Appendix B: Compatible Lenses And Devices

     18 mm RED PRO PRIME: The extended PL Cover Ring of the 18 mm RED PRO PRIME comes in contact with the ridges of the inner core of the MOTION MOUNT TI PL, preventing the installation of the lens with the mount.
  • Page 27 COPYRIGHT© 2013 RED.COM, INC. All trademarks, trade names, logos, icons, images, written material, code and product names used in associa- tion with the accompanying product are the copyrights, trademarks or other intellectual property owned and controlled exclusively by RED.COM, INC.

This manual is also suitable for:

Motion mount ti canon
