3-AXIS SYSTEM CABLES

RED W.M.D. MOTOR CABLE (FOCUS, IRIS, ZOOM)

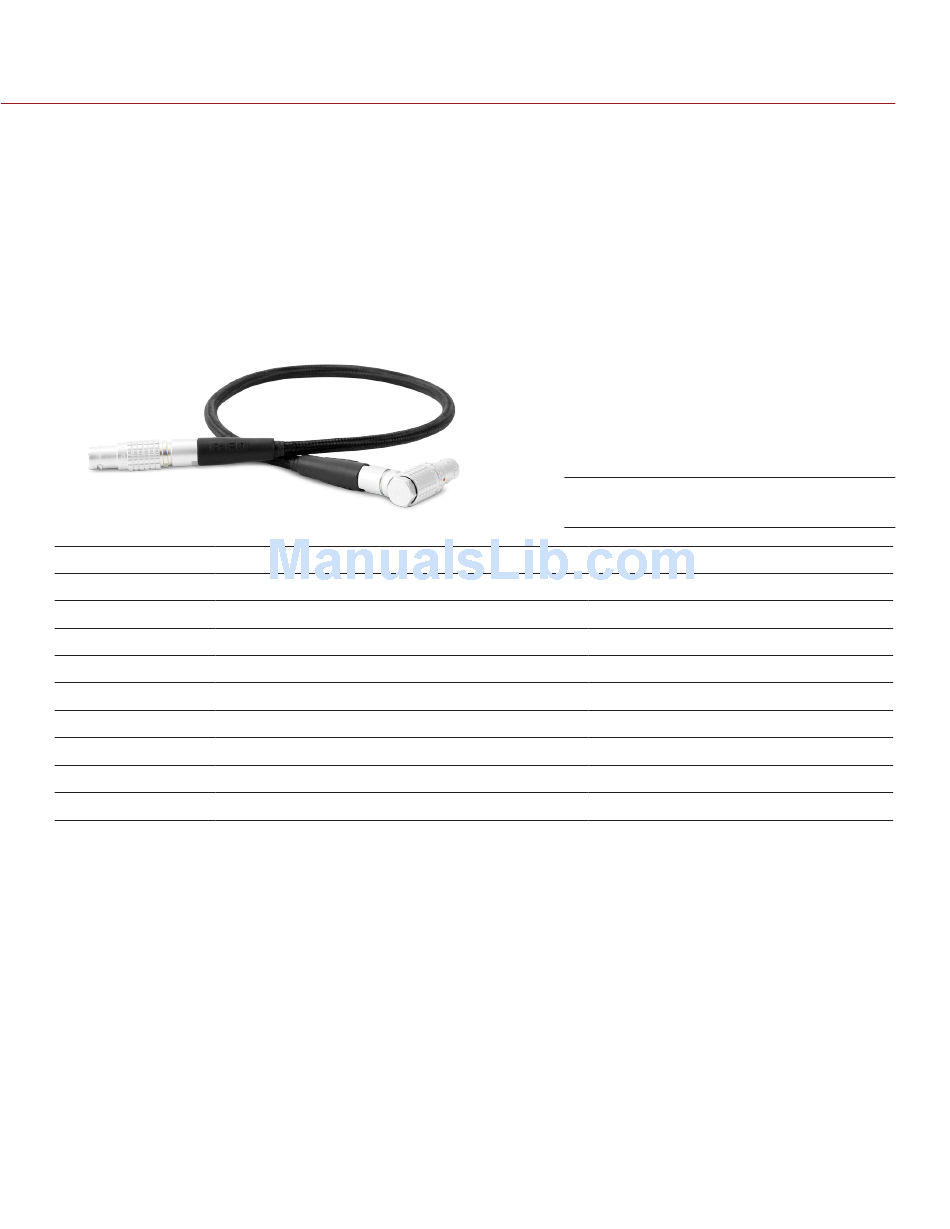

The RED W.M.D. Motor Cable is a 7-pin 1B to 7-pin 1B LEMO cable used to connect RED Lens Control Motors
to the W.M.D. Cables are available in 12", 18", and 24".
NOTE: The RED Lens Control Motor is also compatible with third-party systems using an appropriate RED motor
cable with the proper internal identification resistor. For more information, visit the
red.com/store or contact your Bomb Squad representative.
W.M.D.
FGG-1B.307.CLAD62Z
PIN
1
2
3
4
5
6
7
COPYRIGHT © 2014 RED.COM, INC
SIGNAL
Motor (+)
Motor (-)
Encoder A
+5 V
GND
Encoder B
Motor ID
RED W.M.D. Motor Cable (12")
WIRING
1-1
2-2
3-3
4-4
5-5
6-6
7-7
RED Store at http://www.
LENS CONTROL MOTOR
FGG-1B.307.CLAD62Z
PIN SIGNAL
1 Motor (+)
2 Motor (-)
3 Encoder A
4 +5 V
5 GND
6 Encoder B
7 Motor ID
