DSMC POWER
O P E R AT I O N G U I D E
D S M C P O W E R M O D U L E S
|
C H A R G E R S
B AT T E R I E S
|
A C C E S S O R I E S
R E D . C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSMC Power and is the answer not in the manual?

Questions and answers

Related Manuals for RED DSMC Power

Summary of Contents for RED DSMC Power

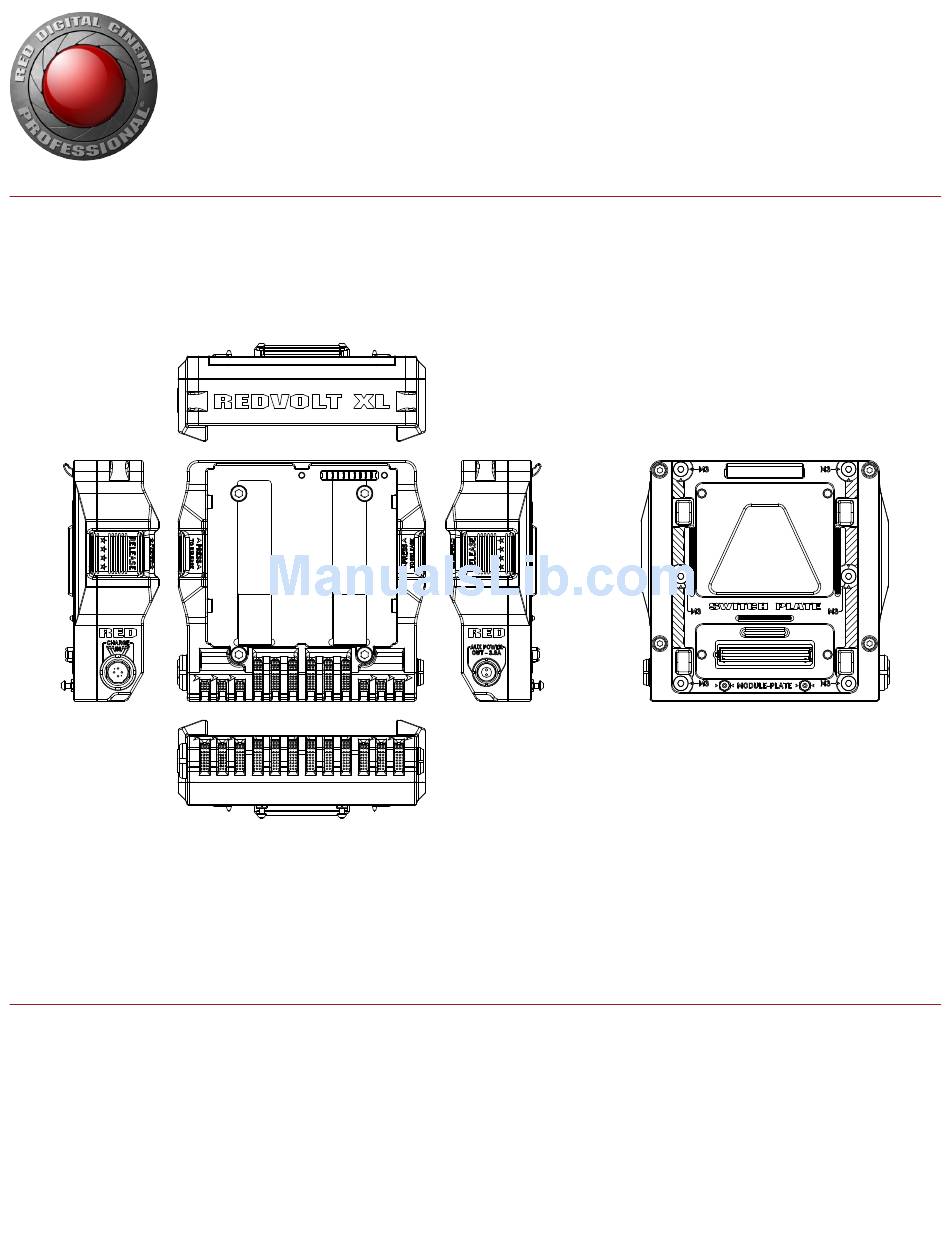

  • Page 1 DSMC POWER O P E R AT I O N G U I D E D S M C P O W E R M O D U L E S C H A R G E R S B AT T E R I E S A C C E S S O R I E S R E D .

  • Page 2: Table Of Contents

    Copyright Notice Trademark Disclaimer Compliance Statements Safety Instructions Battery Operation and Handling Warnings Shipping Disclaimer Chapter 1: DSMC Power Overview DSMC Power Modules REDVOLT and RED BRICK Batteries RED Chargers Cables, Adaptors, and Accessories Additional Resources Chapter 2: DSMC Power Modules...

  • Page 3: Disclaimer

    While thought to be accurate, the informa- code, and product names used in association with the accompa- tion in this document is provided strictly “as is” and RED will not nying product are the copyrights, trademarks or other intellectual be held responsible for issues arising from typographical errors or property owned and controlled exclusively by RED.COM, INC.
  • Page 4 For business users in the European Union, if you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. RESPONSIBLE PARTY: RED Digital Cinema 34 Parker Irvine, CA 92618 COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A...

  • Page 5: Safety Instructions

    CAUTION: Refer all service and repair to ‒ Operating range: 0°C to 40°C (32°F to 104°F) qualified RED service personnel. To reduce ‒ Storage range: -20°C to +50°C (-4°F to +122°F) the risk of electric shock, and damage to...

  • Page 6: Battery Operation And Handling Warnings

    Dangerous Goods, Class 9-certified shipper If the battery leaks and the electrolyte reaches the eyes, do to assist you with a shipment that includes a RED BRICK (or not rub them. Instead, rinse the eyes with clean running water other regulated lithium ion batteries).

  • Page 7: Chapter 1: Dsmc Power Overview

     REDVOLT XL MODULE WARNING: DO NOT USE more than one DSMC power module at a time. Using more than one DSMC power mod- ule may cause damage to the DSMC BRAIN. Damage to the DSMC or components of the DSMC system caused by using more than one DSMC power module at a time will not be covered under warranty.

  • Page 8: Redvolt And Red Brick Batteries

     RED BRICK (153 Wh) RED CHARGERS RED Chargers keep REDVOLT, REDVOLT XL, and RED BRICK batteries charged, letting you focus on shoot- ing footage. The RED CHARGER, REDVOLT CHARGER (QUAD) and DSMC TRAVEL CHARGER replenish your depleted RED lithium-ion rechargeable batteries.

  • Page 9: Cables, Adaptors, And Accessories

    D S M C P O W E R O P E R AT I O N G U I D E CABLES, ADAPTORS, AND ACCESSORIES RED power cables, adaptors and accessories are handmade and expertly crafted to the highest standards and are available in a variety of lengths for monitoring, audio and power supply requirements. RED performance cables feature robust industry-standard LEMO connectors, as well as a variety of connector sizes to support all of your displays, add-on modules and third party accessories.

  • Page 10: Chapter 2: Dsmc Power Modules

    Adaptors attach directly to the camera BRAIN, enabling rapid attachment of other modules using the quick locking mechanism on the bottom of the adaptors. Some DSMC power modules, such as the REDVOLT XL MODULE, offer unique features such as direct DSMC attachment and charging capabilities.

  • Page 11: Dsmc Adaptor Modules

    The MODULE ADAPTOR enables DSMC modules to connect the DSMC BRAIN for expandable functionality. The MODULE ADAPTOR features additional 1/4-20 mounting points on top for further add-ons and configuration support. Most RED DSMC modules require a MODULE ADAPTOR or +1 ADAPTOR MODULE to attach to your DSMC BRAIN.
  • Page 12 Connector ules WARNING: DO NOT USE the EVF/LCD port if a RED PRO I/O MODULE is connected to the DSMC BRAIN. NOTE: The default Auxiliary Power Output setting is ON. Use the on-screen menu to toggle this setting ON/OFF. In the menu screen, go to: Power > Power_Out > +1_PWR. After a DSMC firmware upgrade or factory reset, the default Auxiliary Power Output setting will be turned “ON”.

  • Page 13: Module And Adaptor Operations

    Use the instructions in this section to install and remove DSMC adaptor modules and power modules. INSTALL THE MODULE ADAPTOR In order to attach most DSMC power modules, a MODULE ADAPTOR or +1 ADAPTOR MODULE must be in- stalled to the back of the camera BRAIN. These module adaptors are sold separately from DSMC modules.
  • Page 14 2. Use a T20 Torx driver to loosen the four (4) captive screws attaching the MODULE ADAPTOR to the camera BRAIN. Loosen MODULE ADAPTOR 3. Remove the MODULE ADAPTOR from the camera BRAIN. COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...
  • Page 15 3. Align the +1 ADAPTOR MODULE with the back of the DSMC BRAIN. Install +1 ADAPTOR MODULE 4. Insert the HDMI connector into the DSMC BRAIN. Insert the HDMI Connector to DSMC BRAIN COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...
  • Page 16 5. Use a T20 Torx driver to tighten four (4) captive screws. Tighten screws in a cross pattern approximately two (2) turns each. DO NOT FULLY TIGHTEN. Tighten the screws in an “X” pattern 6. Fully tighten four (4) screws in a cross pattern. DO NOT OVERTIGHTEN. COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...
  • Page 17 2. Using a T20 Torx driver, loosen four (4) captive mounting screws attaching the +1 ADAPTOR MODULE to the DSMC BRAIN. Loosen the screws in an “X” pattern 3. Disconnect the HDMI connector from the DSMC BRAIN. 4. Remove the +1 ADAPTOR MODULE from the DSMC BRAIN. COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...
  • Page 18 3. While applying steady pressure to hold the module against the MODULE ADAPTOR, use a T20 Torx driver to rotate the MODULE ADAPTOR locking mechanism clockwise to the “Lock” position in order to secure the module. COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...
  • Page 19 3. Rotate the module upwards (as shown below) and away from the MODULE ADAPTOR to disengage the lip at the top of the module from the MODULE ADAPTOR. Remove Module 4. Fully remove the module from the DSMC BRAIN. COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...

  • Page 20: Pro Battery Module (Dual)

    WARNING: DO NOT USE more than one DSMC battery module at a time. Using more than one DSMC battery module will damage the DSMC BRAIN and will not be covered under RED warranty. NOTE: A MODULE ADAPTOR or +1 ADAPTOR MODULE is required to mount this module to the DSMC BRAIN.

  • Page 21: Pro Battery Module (Quad)

    WARNING: DO NOT USE more than one DSMC battery module at a time. Using more than one DSMC battery module will damage the DSMC BRAIN and will not be covered under RED warranty. NOTE: A MODULE ADAPTOR or +1 ADAPTOR MODULE is required to mount this module to the DSMC BRAIN.

  • Page 22: Redvolt Xl Module

    D S M C P O W E R O P E R AT I O N G U I D E REDVOLT XL MODULE The REDVOLT XL MODULE is a flexibly designed DSMC power module that provides power from a connected REDVOLT XL battery. The REDVOLT XL MODULE uses a reversible Switch Plate design, enabling the module to connect directly to the camera BRAIN or other DSMC modules.
  • Page 23 For more information on installation with the Switch Plate, check out the REDVOLT XL MODULE Installation Video on our website at http://www.red.com/store/products/redvolt-xl-module. INSTALL THE REDVOLT XL MODULE The REDVOLT XL MODULE installs directly to the DSMC BRAIN in the same way the MODULE ADAPTOR and +1 ADAPTOR MODULE are installed.
  • Page 24 Power In 6-pin 1B LEMO Provides power to the REDVOLT XL MODULE, the AUX “Charge” POWER OUT port, and an approximate 2 A charge cur- rent to an attached REDVOLT XL battery COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...
  • Page 25 NOTE: Auxiliary Out Port is always enabled whenever a REDVOLT XL battery is attached to the module, regard- less of camera state or presence of other DC power source. REDVOLT XL MODULE Aux Power Out SIGNAL Ground +12 VDC COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...
  • Page 26 Alternating flash; half second green followed by half second green flash red, repeat Lamp Self Test Flash red/green Self test at power up; half second red followed by half sec- ond green Battery Discharge Pulsing red flash Heartbeat (red) pulse once per minute; indicating that the...
  • Page 27 1. Press both of the battery release buttons on the sides of the REDVOLT XL MODULE to eject the battery. 2. When the battery is ejected, guide it out and remove it from the REDVOLT XL MODULE. Remove a REDVOLT XL Battery COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...

  • Page 28: Quickplate Module

    D S M C P O W E R O P E R AT I O N G U I D E QUICKPLATE MODULE The QUICKPLATE MODULE attaches to a +1 ADAPTOR MODULE or MODULE ADAPTOR to provide RED BRICK power support for the DSMC BRAIN. Unlike the BACKPACK QUICKPLATE, this product does not require the use of a LEMO connector cable or BACKPACK BASEPLATE.

  • Page 29: Backpack Quickplate

    2 A out of one port, you can pull up to 1.8 A out of the other port.) NOTE: When connecting a cable to an auxiliary connector, align the key and red mark on the auxiliary connector with the corresponding key on the cable connector.
  • Page 30 3.8 A. For example, if you’re pulling 2 A out of one port, you can pull up to 1.8 A out of the other port. NOTE: When connecting a cable to an auxiliary connector, align the key and red mark on the auxiliary connector with the corresponding key on the cable connector.
  • Page 31 4. Secure the BACKPACK QUICKPLATE by turning the BACKPACK BASE PLATE wingnut clockwise until it stops turning. DO NOT OVERTIGHTEN. 5. Slide the RED BRICK onto the back of the BACKPACK QUICKPLATE so that it fits into the V-Mount on the back of the BACKPACK QUICKPLATE.

  • Page 32: Chapter 3: Red Rechargeable Batteries

    REDVOLT and REDVOLT XL batteries are lightweight and rechargeable batteries designed to power the DSMC BRAIN. REDVOLT batteries can be mounted to DSMC power modules for extended mobile shooting, or inserted into the DSMC SIDE HANDLE for low profile shorter term power.
  • Page 33 REDVOLT LED Array CHARGE A REDVOLT BATTERY REDVOLT batteries can only be charged using the following approved RED chargers:  DSMC TRAVEL CHARGER  REDVOLT CHARGER (QUAD)  REDVOLT XL MODULE (REDVOLT XL only) COPYRIGHT ©...
  • Page 34 +50°C (-4°F to +122°F). For more information about storage and operational requirements, refer to the Techni- cal Specifications section on “RED Batteries” on page WARNING: DO NOT USE OR CHARGE the battery in extreme temperature environments outside of 0°C to 40°C (32°F to 104°F). COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...

  • Page 35: Red Brick

    The RED BRICK uses multiple lithium-ion rechargeable battery cells to provide long-term battery power to the DSMC BRAIN for extended shooting sessions. RED BRICK batteries can be fastened to the DSMC BRAIN or equipment using a V-Mount battery plate and can also be used to power specific DSMC modules.
  • Page 36 BATTERY LED ARRAY The RED BRICK battery LED array consists of five LEDs and a button. When the button is pressed RED BRICK LEDs illuminate and display the current battery charge levels in 20% steps. If a single LED blinks or no LEDs illuminate when the button is pressed, then the battery is depleted and requires charging.

  • Page 37: Chapter 4: Red Battery Chargers

    NOTE: Batteries may become warm during charging. DSMC TRAVEL CHARGER The RED DSMC TRAVEL CHARGER is a compact and portable charger designed to charge a single REDVOLT lithium-ion battery. The DMSC TRAVEL CHARGER is designed to charge a single REDVOLT lithium-ion battery.
  • Page 38 COLOR PATTERN DESCRIPTION Solid red Charger ON, no battery connected Flashing yellow Charger ON, battery connected and charging Solid green Charger ON, battery fully charged Flashing red/green (alternating) Charger ON, fail condition COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...
  • Page 39 The RED CHARGER is designed to provide rechargeable support for RED BRICK (153 Wh) lithium-ion batter- ies. The RED CHARGER is capable of delivering up to four (4) Amperes in constant current mode, making this charger particularly suitable to users requiring a fast turnaround from their RED BRICK batteries. The RED CHARGER can power up to two RED BRICK batteries sequentially in approximately eight (8) hours.
  • Page 40 Eject battery from charger Ventilation Battery Contact Connector RED BRICK seating connector AC Main Input IEC power cable in Rotating Support Foot 90° rotation for free standing operation with one or two batter- ies connected COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...

  • Page 41: Battery Compatibility And Operations

    RED CHARGER will resume the charging sequence from the point of interruption. INSERT RED BRICK BATTERIES 1. Align the V-plate adaptor on the RED BRICK with the V-plate mount on the RED CHARGER. 2. Lower the RED BRICK onto the RED CHARGER.

  • Page 42: Chapter 5: Adaptors, Cables, And Accessories

     MINI-XLR ADAPTOR  REDVOLT AA (4-PACK and 80-PACK)  REDVOLT CASE  REDVOLT XL CASE For more information, as well as RED ONE specific power products, visit the RED store at www.red.com/store. COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...

  • Page 43: Power Adaptors And Accessories

    These power adaptors are sold separately as options to provide power support for DSMC BRAINS. AC POWER ADAPTOR (DSMC) The RED AC POWER ADAPTOR is available to keep the DSMC BRAIN shooting continuously via an AC power outlet. An industry-standard 2B LEMO connector attaches directly to the DSMC BRAIN.
  • Page 44 D S M C P O W E R O P E R AT I O N G U I D E RED STATION AC POWER ADAPTOR The RED STATION AC POWER ADAPTOR provides +5 V/2 A power to the RED STATION REDMAG 1.8”, RED STATION REDMAG 1.8” (MINI), RED STATION REDMAG 2.5”, or RED STATION COMPACT FLASH readers.
  • Page 45 2B-TO-1B POWER ADAPTOR CABLE is required for use with the DSMC BRAIN. RED QUICKPLATE RED CRADLE The RED CRADLE allows you to simultaneously mount a RED BRICK and RED DRIVE or RED RAM. A 2B-TO-1B POWER ADAPTOR CABLE is required for use with the DSMC BRAIN. RED CRADLE COPYRIGHT ©...
  • Page 46 The DSMC BATTERY BELT CLIP provides a portable power solution for lightweight hand-held configurations. The attached 1B power cable separates this model from the previous (RED ONE) and allows you to plug directly into a DSMC BRAIN without the use of a 2B-TO-1B POWER ADAPTOR CABLE. The robust clip allows you to connect it directly to a belt.

  • Page 47: Cables And Other Accessories

    D S M C P O W E R O P E R AT I O N G U I D E CABLES AND OTHER ACCESSORIES RED cables and accessories are hand-assembled to the highest standards and are available in a variety of lengths for monitoring, audio, and power supply requirements to meet your changing needs.
  • Page 48 LCD/EVF CABLES LCD and EVF CABLES are braided cables that provide a clean video feed from an LCD/EVF port to a RED LCD or EVF display. These cables are available in a variety of lengths and connector options to fit your configuration needs.
  • Page 49 XLR audio equipment. MINI-XLR ADAPTOR REDVOLT AA (4-PACK AND 80-PACK) REDVOLT AA batteries provide multi-purpose power for devices that require AA battery support. REDVOLT AA 4-PACK (left) and REDVOLT AA 80-PACK (right) COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...
  • Page 50 Laser-cut foam meets the precise dimensions of each battery, giving you a convenient way to safely store and transport REDVOLT XL batteries. REDVOLT XL CASE For more products and information, as well as RED ONE specific power products, visit the RED store at www. red.com/store.

  • Page 51: Appendix A: Technical Specifications

    PWR (4-pin 0B LEMO), 2.0 Amp continuous load at 11.5-17 VDC Firmware Requirement DSMC Firmware v4.0.8 or later WARNING: DO NOT USE the EVF/LCD port on the +1 ADAPTOR MODULE if a RED PRO I/O MODULE is con- nected to the DSMC BRAIN. COPYRIGHT © 2013 RED.COM, INC...
  • Page 52 0°C to 40°C (32°F to 104°F) Storage Temperature -30°C to +70°C (-22°F to +158°F) Connectors CHARGE IN (6-pin 1B LEMO) AUX POWER OUT (2-pin 0B LEMO) Firmware Requirement DSMC Firmware v5.1.29 or later COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...
  • Page 53 0°C to 40°C (32°F to 104°F) Storage Temperature -30°C to +70°C (-22°F to +158°F) Connectors AUX 1 (2-pin 0B LEMO) AUX 2 (2-pin 0B LEMO) Firmware Requirement DSMC Firmware v5.1.14 or later COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...

  • Page 54: Red Batteries

    Battery Type Rechargeable Lithium-ion Battery Battery Capacity 153 Wh / 10.4 Ah Output Voltage 14.8 VDC Operating Temperature 0˚C to 40˚C (32˚F to 104˚F) Storage Temperature -20˚C to +50˚C (-4˚F to +122˚F) COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...

  • Page 55: Red Chargers

    Approx 2.56 lbs. (1,163 g), Charger only Auxiliary Power Output 13.8 V, 100 W (max) Operating Temperature 0˚C to 40˚C (32˚F to 104˚F) Storage Temperature -20˚C to +50˚C (-4˚F to + 122˚F) Compatibility RED BRICK COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...

  • Page 56: Appendix B: Dsmc Module Compatibility

    MAXIMUM SUPPORTED MODULES RED recommends that a maximum supported module limit of four (4). It is not recommended to use more than four (4) modules at any time as this may cause power distribution problems or even structural issues such as: bowing, damage to connectors, or damage to the DSMC BRAIN itself.
  • Page 57 1. Only one (1) DSMC display out port is available at a time. DO NOT USE the EVF/LCD port on the +1 ADAPTOR MODULE, when support- ing this configuration. Instead, use the provided EVF/LCD port on the PRO I/O MODULE. COPYRIGHT © 2013 RED.COM, INC 955-0038, REV-A |...
  • Page 58 COPYRIGHT© 2013 RED.COM, INC. All trademarks, trade names, logos, icons, images, written material, code and product names used in associa- tion with the accompanying product are the copyrights, trademarks or other intellectual property owned and controlled exclusively by RED.COM, INC.
