R E D 3 - A X I S S Y S T E M O P E R AT I O N G U I D E

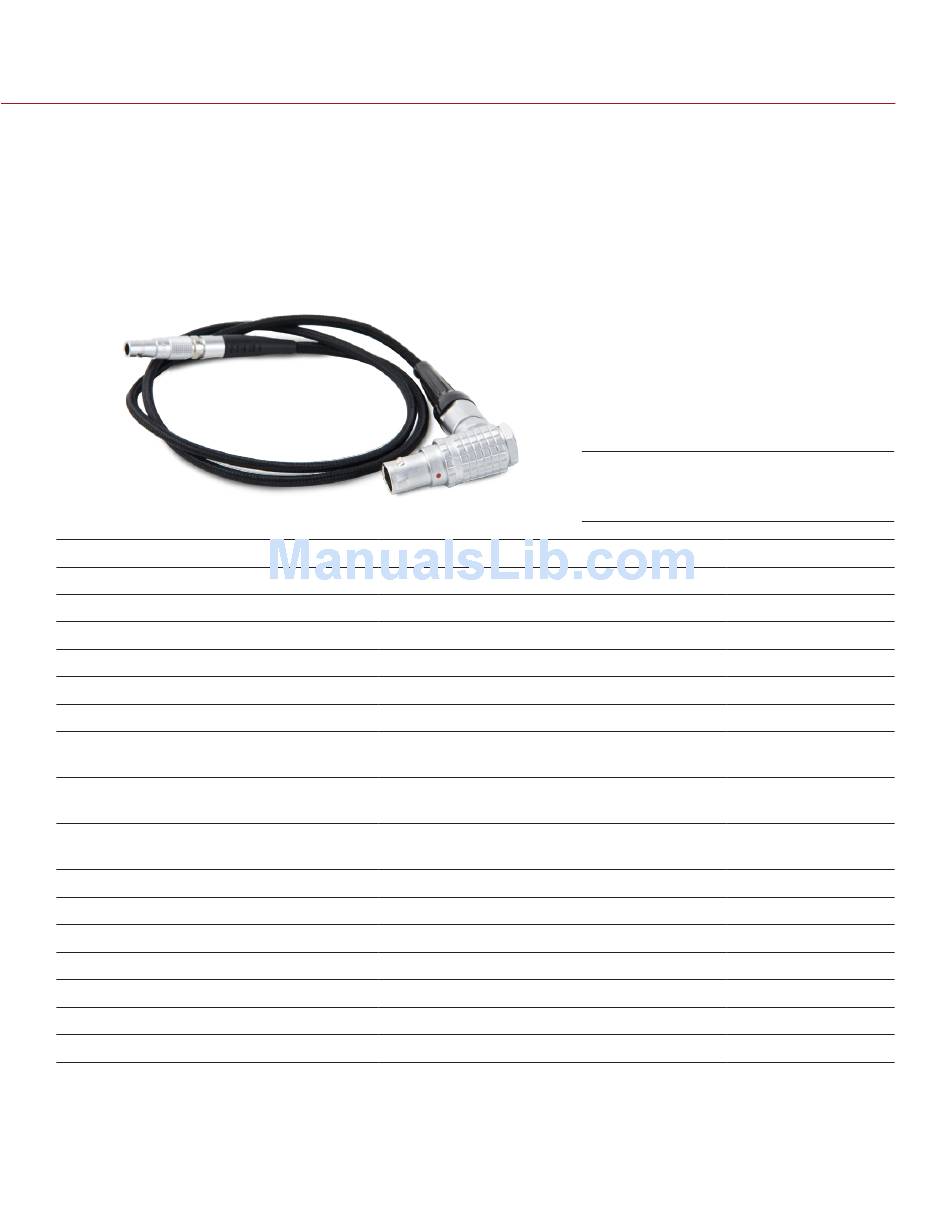

RED START/STOP CABLE (1B TO 00B SYNC)
The RED Start/Stop Cable (1B to 00B Sync) supports Start/Stop functionality through the RED W.M.D. This
cable connects to the EXP port on the W.M.D. and to the SYNC port of your DSMC and is ideal for run-and-gun
shooters who want convenient Start/Stop capability only.
NOTE: When using the RED Start/Stop Cable (1B to 00B Sync), you must configure the W.M.D. for EPIC start/
stop operation only. On the W.M.D., go to Select > Start/Stop > EPIC.
NOTE: For use for direct Start/Stop applications. Eliminates Timecode, Genlock, and Tally options.
W.M.D. EXPANSION PORT
FGG-1B.314.CLAD42Z
PIN
1
2
3
4
5
6
7
8 AUX GPIO 1_3.3
9
10
11
12 AUX GPIO 2_3.3
13
14
COPYRIGHT © 2014 RED.COM, INC
SIGNAL
GND
232 Rx_In
+12 V
232 Tx-Out
Start/Stop
Contact Pin
Start/Stop
Status in 3V3
Epic Start/Stop
3.3 Con Pin
+3.3 V
Cable ID
-
-
-
RED Start/Stop Cable (1B to 00B
Sync)
WIRING
1-1
-
-
-
-
-
7-2
-
-
-
-
-
-
-
EPIC START/STOP
FGG-00.304.CLAD35Z
PIN SIGNAL
1 GND
2 EPIC Start/Stop
3 Timecode In
4 Genlock
- -
- -
- -
- -
- -
- -
- -
- -
- -
- -
955-0044, REV-D | 69
