RED 3-AXIS
LENS CONTROL SYSTEM

OPERATION GUIDE

W.M.D.
|
T.H.C.
|
RED LENS CONTROL MOTOR
RED.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W.M.D. and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RED W.M.D.

Summary of Contents for RED W.M.D.

  • Page 1: Operation Guide

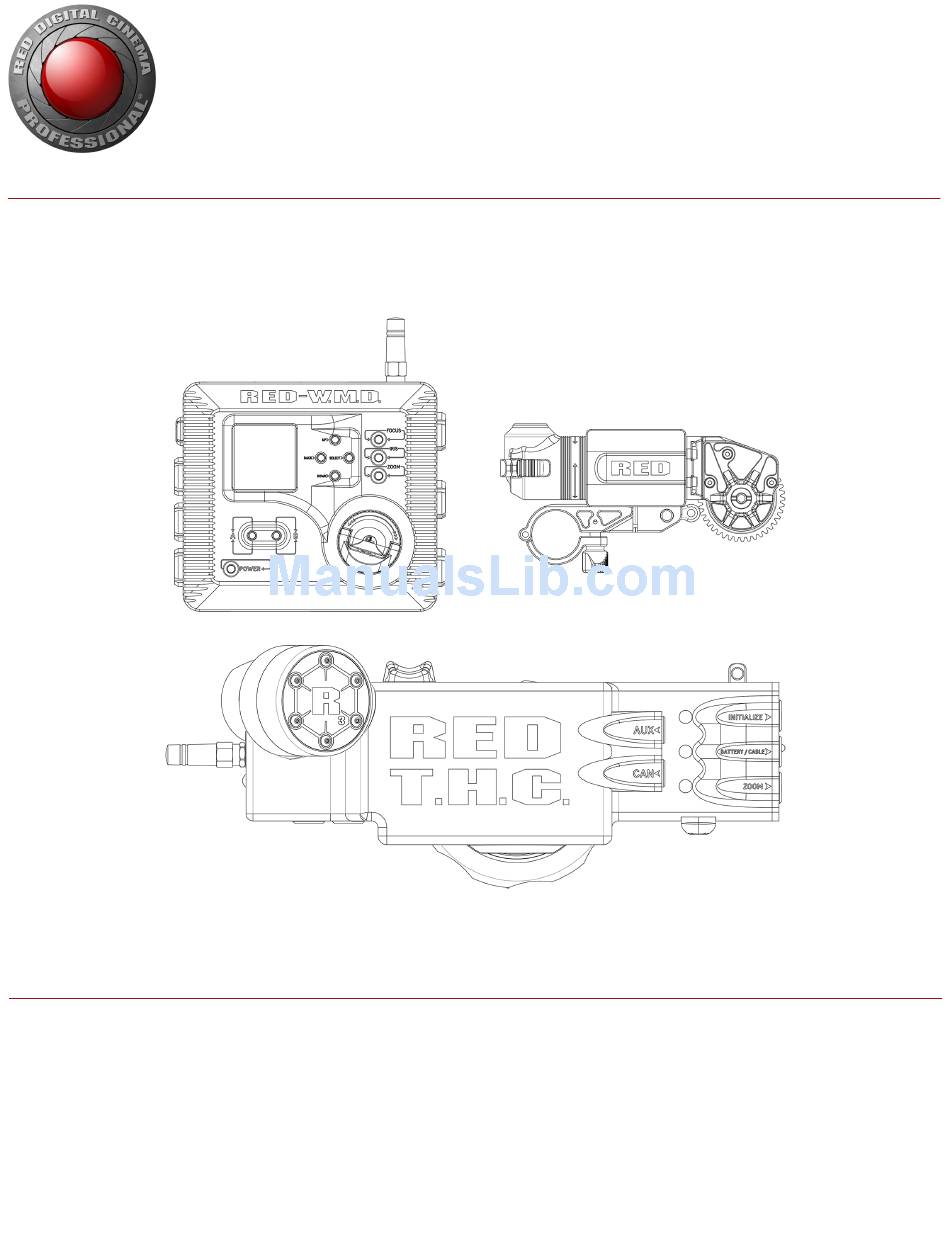

    RED 3-AXIS LENS CONTROL SYSTEM OPERATION GUIDE W.M.D. T.H.C. RED LENS CONTROL MOTOR RED.COM...

  • Page 2: Table Of Contents

    Configure Focus, Iris, and Zoom Motors CHAPTER 5: Lens Control Motor Configure Wireless Settings RED Lens Control Motor Overview View Motor Status RED Lens Control Motor Mounting Bracket Configure Start/Stop, Genlock, Timecode, 19mm-to-15mm Rod Reducers Tally Lens Drive Gears W.M.D. Lens Profiles...
  • Page 3 RED 3-AXIS SYSTEM OPERATION GUIDE CHAPTER 6: System Maintenance Clean 3-Axis System Components Store the 3-Axis System CHAPTER 7: Upgrade Firmware MicroSD Card Preparation Verify Current W.M.D. Firmware Upgrade W.M.D. Verify Current T.H.C. Firmware Upgrade T.H.C. CHAPTER 8: Troubleshoot the System General Topics Troubleshoot the W.M.D.

  • Page 4: Disclaimer

    While thought to be accurate, the information in this document is tout brouillage radioélectrique subi, même si le brouillage est provided strictly “as is” and RED will not be held responsible for issues susceptible d’en compromettre le fonctionnement.Cet appareil arising from typographical errors or user’s interpretation of the numérique de la classe B est conforme à...
  • Page 5 EN 61000-3-3 (IEC610000) – Power Line Flicker EN 60065 (IEC60065) – Product Safety AUSTRALIA AND NEW ZEALAND STATEMENTS WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) RED declares that the radio equipment described in this document Waste Electrical Electronic comply with the following international standards.

  • Page 6: Safety Instructions

    If there are any performance issues with your camera or accessories when operating within this temperature range, please 34 Parker file a support ticket on https://support.red.com. Irvine, CA 92618 Modules, expanders, and lens mounts are NOT HOT SWAPPABLE, meaning you cannot remove or install them while the camera is turned on.

  • Page 7: Battery Storage And Handling

    40% to 60%. If batteries will be stored for long periods of time, requires that all rechargeable batteries must be recycled by an RED recommends that you check the charge level at least once every authorized recycle center. Storing batteries fully charged or in...

  • Page 8: Shipping Disclaimer

    Unless you have been certified to ship dangerous goods, you must work with a Dangerous Goods, Class 9-certified shipper to assist you with a shipment that includes a RED BRICK (or other regulated lithium ion batteries). Please note that applicable laws prohibit the shipping of batteries that are physically damaged.

  • Page 9: Chapter 1: 3-Axis System Overview

    The T.H.C. cannot pair directly to the WEAPON , SCARLET-W, and RED RAVEN™ cameras. To use the T.H.C. with WEAPON, SCARLET-W, or RED RAVEN, the T.H.C. needs to be connected to the W.M.D. (either wired or wirelessly). For more information about WEAPON/SCARLET-W, see the camera operation guides at www.red.com/downloads.

  • Page 10: 3-Axis System Components

    RED 3-AXIS SYSTEM OPERATION GUIDE 3-AXIS SYSTEM COMPONENTS RED offers the following RED 3-Axis Lens Control System components individually, enabling you to customize your lens control setup. For more information, visit the RED Store at www.red.com/store. ITEM PART NUMBER RED 3-Axis Lens Control System 760-0147 RED W.M.D.

  • Page 11: Additional Resources

    790-0421 BNC-to-BNC Adaptor 790-0435 ADDITIONAL RESOURCES ® The following resources offer additional information about RED, the DSMC system, and the RED community: RED.com: Check the official RED website for the latest information about RED products. RED Learn Articles: RED offers...

  • Page 12: Chapter 2: 3-Axis System Launch Sequence

    CHAPTER 2: 3-AXIS SYSTEM LAUNCH SEQUENCE ® This section offers condensed installation and operating instructions to help you get started using the RED 3-Axis Lens Control System. WARNING: The camera must be turned off during any installation process. RECOMMENDED EQUIPMENT...

  • Page 13: Install The 3-Axis System

    RED 3-AXIS SYSTEM OPERATION GUIDE INSTALL THE 3-AXIS SYSTEM These instructions show a tactical cage or other cheeseplate. For more information and other installation methods, go "Mount the W.M.D." on page 23 1. Mount the W.M.D. A. Remove the guide pin from the recessed storage location on the bottom of the unit.

  • Page 14: Connect The 3-Axis System

    A. Push the lock button on the RED Lens Control Motor Mounting Bracket to disengage the locking mechanism. B. Slide the dove-tail rail on the RED Lens Control Motor Mounting Bracket into the dove-tail slot on the RED Lens Control Motor.
  • Page 15 A. Connect the RED Start/Stop cable to the W.M.D. EXP port. B. Connect the RED Start/Stop cable to the appropriate SYNC and/or CTRL ports on the camera. WARNING: DO NOT connect to the SYNC connector to the CTRL port. This may cause the camera to crash.

  • Page 16: Configure The 3-Axis System

    "Initialize the System" on the next page. The RED 3-Axis Lens Control System is now successfully setup and ready for wireless operation. The remainder of this section offers further guidance on initialization. C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...
  • Page 17 W.M.D. without initializing again. Initialization needs to be performed if something changes with the the physical setup. W.M.D. LEDs display motor initialization status. Red LEDs indicate a motor error, solid green LEDs indicate motors that are initialized, and flashing green LEDs indicate that an initialization process is in progress. No LEDs indicate that a motor is not detected.

  • Page 18: Chapter 3: Wireless Motor Driver (W.m.d.)

    Expansion ports, tool-free installation, and start/stop connectivity make the W.M.D. versatile and easy to use. NOTE: DO NOT USE the Pro I/O Module to power the RED W.M.D. The Pro I/O Module does not provide enough power and is not designed to support the W.M.D.

  • Page 19: Controls

    RED 3-AXIS SYSTEM OPERATION GUIDE W.M.D. CONTROLS Figure: W.M.D. Controls # CONTROL DESCRIPTION 1 LCD display View the W.M.D. menus 2 A button Return to home screen; Toggles button lock 3 B button Short press initializes motors that are in an error state; long press initializes all motors 4 Up button Navigate up through the W.M.D.

  • Page 20: Leds

    RED 3-AXIS SYSTEM OPERATION GUIDE W.M.D. LEDS Figure: W.M.D. LEDs COLOR/FLASHING DESCRIPTION Power No power connected Green Power on; Firmware upgraded Green flashing Firmware upgrading Amber flashing System boot indicator or initialization in progress Power error Focus, No motor connected...

  • Page 21: Connectors

    PART NUMBERS Wireless antenna Removeable antenna RED T.H.C./W.M.D. Antenna 790-0420 Focus connector (7- Connect the W.M.D. to RED W.M.D. Motor Cable 7-Pin Straight 790-0434 ® pin 1B LEMO the Focus RED Lens to 7-Pin Right (12") Control Motor RED W.M.D. Motor Cable 7-Pin Straight 790-0406 to 7-Pin Right (18")
  • Page 22 Serial port to communicate with third- (10-pin LEMO) party devices PWR connector Power in RED W.M.D. Power Cable 2-Pin 1B to 2- 790-0410 Pin 0B (18") (2-pin 1B LEMO) RED W.M.D. Power Cable 2-Pin 1B to 4- 790-0411 Pin XLR (8') ®...

  • Page 23: Mount The W.m

    RED 3-AXIS SYSTEM OPERATION GUIDE MOUNT THE W.M.D. The W.M.D. is designed to support various mounting requirements, enabling you to customize your setup for your own camera configuration. ATTACH THE W.M.D. TO THE DSMC TACTICAL RIGHT PLATE ® When the V-LOCK is removed from the back of the W.M.D., it can be attached to a DSMC Tactical Right Plate using the built-in thumbscrew and guide pin.
  • Page 24 RED 3-AXIS SYSTEM OPERATION GUIDE 4. Place the W.M.D. against the Tactical Plate so that the guide pin and 1/4-20 screw each align with a 1/4-20 screw hole. 5. Tighten the W.M.D. 1/4-20 thumbscrew. WARNING: DO NOT OVERTIGHTEN. Figure: Push and Turn Thumbscrew MOUNT THE W.M.D.

  • Page 25: Power The W.m

    RED 3-AXIS SYSTEM OPERATION GUIDE POWER THE W.M.D. 1. Connect the 2-pin 1B LEMO connector of a RED W.M.D. Power Cable to the PWR port on the W.M.D. 2. Connect the opposite end to a 12 VDC power source with sufficient amperage.

  • Page 26: Main Menu

    Regardless of the setting, holding and pressing the A button locks the W.M.D. Go to Options > Button Lock and disable the auto-lock. CONFIGURE FOCUS, IRIS, AND ZOOM MOTORS After initializing the W.M.D. with a RED Lens Control Motor, you may need to adjust the following settings: Torque Direction...
  • Page 27 ADJUST BACKLASH The RED Lens Control Motor offers next to zero backlash when properly installed. However, you may experience backlash with third-party motors, or certain lens and motor combinations. The W.M.D. allows you to compensate for any backlash. Select an anti-backlash setting in the range of 0 to 3,000 encoder counts.

  • Page 28: Configure Wireless Settings

    5. Deselect the digits and return to the menu. CONFIGURE WIRELESS SETTINGS In order for the T.H.C. to wirelessly control the W.M.D., the RED 3-Axis Lens Control System uses a Frequency- Hopping Spread Spectrum (FHSS) wireless link and offers 42 channels.

  • Page 29: View Motor Status

    RED 3-AXIS SYSTEM OPERATION GUIDE VIEW MOTOR STATUS This section describes each motor status and provides tips on how to resolve issues if an error occurs. In the W.M.D. main menu, select Status to view the state of each motor.

  • Page 30: Configure Start/Stop, Genlock, Timecode, Tally

    1. Configure Start/Stop in the camera menu. A. Go to Menu > Settings > Setup > GPIO/Sync > Brain GPIO. B. Select General Purpose In from the Camera In drop-down menu. 2. Connect a RED Start/Stop Cable(s) for the configuration that you want. FUNCTIONS CABLE...

  • Page 31: Lens Profiles

    Leica Summilux-C: 21mm, 25mm, 40mm, 50mm, 75mm, 100mm RED PRO PRIME: 18mm, 25mm, 35mm, 50mm, 85mm, 100mm, 300mm C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC 9 5 5 - 0 0 4 4 , R EV - H...

  • Page 32: Select A Lens Profile

    Alura: 18-80mm T2.6 Fujinon Cine: 14.5-45mm T2, 19-90mm RED ZOOM: 17-50mm, 18-85mm, 18-50mm T3, 50-150mm T3 SELECT A LENS PROFILE Default lens profiles are located in the Prime or Zoom menus. Modified lens profiles are saved in the User menu.

  • Page 33: Modify A Lens Profile

    RED 3-AXIS SYSTEM OPERATION GUIDE MODIFY A LENS PROFILE The W.M.D. allows you to modify the encoder position related to a specific data point to fine-tune the active lens profile. 1. Select Profiles in the W.M.D. main menu. 2. Select Modify.

  • Page 34: Export Lens Profiles

    MANAGE LENS PROFILES The W.M.D. automatically reads lens information and renames the profile on import. This effectively removes any custom profile names. For this reason, RED recommends saving .pfl files in custom named folders, rather than changing the lens profile name.

  • Page 35: Erase Settings On The W.m

    3. Go to Options > EXP Port > R.C.P. in the W.M.D. main menu. 4. A red ‘R’ icon displays on the W.M.D. when the EXP port is configured for R.C.P. communication. 5. Go to Settings > Setup > Communication > Serial in the camera menu.

  • Page 36: Funjinon Lens Control

    STREAMING METADATA You can stream metadata to an external device if the W.M.D. is not connected to a RED camera. Streaming metadata exports data at a rate of 25 updates per second. To configure streaming metadata, follow the instructions below: 232/422 Port: Go to Options >...

  • Page 37: Chapter 4: Tactical Hand Controller (T.h.c.)

    ® The RED Tactical Hand Controller (T.H.C.) works with the RED Wireless Motor Driver (W.M.D.) and RED Lens Control Motor to provide wireless operation of lens adjustments (Focus, Iris, Zoom). The T.H.C. delivers on-the-fly precision tuning with independent Focus, Iris, and Zoom adjustment controls.

  • Page 38: Controls

    RED 3-AXIS SYSTEM OPERATION GUIDE T.H.C. CONTROLS Figure: T.H.C. Controls Figure: T.H.C. Controls CONTROL DESCRIPTION Run button Record button for mobile Start/Stop Iris slider Adjusts motor connected to Iris port Zoom wheel Adjusts motor connected to Zoom port Initialize Press and hold for two (2) seconds to initialize the system; OR press and release...

  • Page 39: Leds

    Press to release the rechargeable battery from the T.H.C. release 1. Focus, Iris, and Zoom controls can be used interchangeably by connecting the RED Lens Control Motor to a lens function connector that you want on the W.M.D. T.H.C. LEDS Figure: T.H.C.
  • Page 40 RED 3-AXIS SYSTEM OPERATION GUIDE # LED COLOR/FLASHING DESCRIPTION 2 Iris Limit Function active; no limits set Green flashing (slow) Actively setting limit (User is holding the limit button down) Green flashing (fast) Function locked: no position updates are sent to the W.M.D.

  • Page 41: Connectors

    790-0420 WIRED OPERATION 1. Connect the T.H.C. to the W.M.D. using the RED CAN Command Cable (provided). C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC 9 5 5 - 0 0 4 4 , R EV - H...

  • Page 42: Pair The T.h

    NOTE: The RED CAN Command Cable also provides power to the T.H.C. up to approximately 500 ft. When using a cable longer than 500 ft, insert a battery and toggle the T.H.C. power switch to Battery to provide sufficient power.

  • Page 43: Wireless Settings

    RED 3-AXIS SYSTEM OPERATION GUIDE 3. After a few seconds, release the Focus Limit button. Iris Limit and Focus Limit LEDs flash corresponding to the current channel setting: Iris Limit: Flashes to represent the tens. Focus Limit: Flashes to represent the ones.

  • Page 44: Set A Lens Limit

    RED 3-AXIS SYSTEM OPERATION GUIDE SET A LENS LIMIT The T.H.C. enables precision on-the-fly adjustments for lens functions. 1. Adjust a lens function knob/slider (Focus, Iris, or Zoom) to the min/max position. For example, zoom out to capture full setting.

  • Page 45: Set A Lens Lock

    RED 3-AXIS SYSTEM OPERATION GUIDE SET A LENS LOCK The W.M.D. can support wireless communication with up to two (2) T.H.C. units at any given time. Use the lens function lock feature on the T.H.C. to prevent conflicting commands from two (2) T.H.C. units.

  • Page 46: Chapter 5: Lens Control Motor

    The RED Lens Control Motor is also compatible with third-party motor drivers using the appropriate RED motor cable with the proper resistance identification. For more information, visit the RED Store www.red.com/store...

  • Page 47: Red Lens Control Motor Mounting Bracket

    RED LENS CONTROL MOTOR MOUNTING BRACKET Mount the RED Lens Control Motor to 15mm or 19mm support rods using the flexible and tool-free RED Lens Control Motor Mounting Bracket. The bracket securely attaches to the built-in dove-tail mounting rails on the RED Lens Control Motor.

  • Page 48: Lens Drive Gears

    Figure: RED Lens Drive Gear M 0.8 ATTACH THE RED LENS CONTROL MOTOR MOUNTING BRACKET 1. Align the dove-tail bracket on the RED Lens Control Motor Mounting Bracket with a mounting rail on the RED Lens Control Motor. 2. Insert the RED Lens Control Motor Mounting Bracket and compress the locking guide pin to attach.

  • Page 49: Connect The Red Lens Control Motor

    REMOVE A RED LENS DRIVE GEAR 1. Push on the RED Lens Drive Gear axle to eject the RED Lens Drive Gear from the RED Lens Control Motor. Alternatively, grasp the RED Lens Drive Gear by the gear teeth and pull to disengage and remove the RED Lens Drive Gear.

  • Page 50: Chapter 6: System Maintenance

    Clean ONLY using a dry cloth. When cleaning your RED Lens Control Motor, T.H.C., W.M.D., or other accessory, remember that the components are not waterproof and moisture can damage electronic circuitry. WARNING: DO NOT rinse or immerse any part of the RED Lens Control Motor, T.H.C., W.M.D., or other accessory. Keep components dry at all times.

  • Page 51: Chapter 7: Upgrade Firmware

    Use the provided microSD card and SD card adaptor for best results when upgrading firmware. Other brands or models of microSD cards and SD card adaptors may not be compatible with the RED 3-Axis Lens Control System. VERIFY CURRENT W.M.D. FIRMWARE The current firmware version can be found in the W.M.D.

  • Page 52: Verify Current T.h.c. Firmware

    RED 3-AXIS SYSTEM OPERATION GUIDE 10. Remove the microSD card. VERIFY CURRENT T.H.C. FIRMWARE There is currently no way to verify current firmware version. If you are experiencing problems, upgrade to the latest firmware version available at www.red.com/downloads. UPGRADE T.H.C.

  • Page 53: Chapter 8: Troubleshoot The System

    RED 3-AXIS SYSTEM OPERATION GUIDE CHAPTER 8: TROUBLESHOOT THE SYSTEM GENERAL TOPICS W.M.D. SHUTDOWN SYMPTOM The Wireless Motor Driver (W.M.D.) shuts off while driving multiple motors on a stiff lens. EXPLANATION ® The 12 V auxiliary (AUX) port(s) on many camera power modules, including the REDVOLT XL Module, provide a maximum of 3.8 A of current and is sufficient for most operating conditions.

  • Page 54: Troubleshoot The W.m

    Ensure that the proper gear pitch is correct for the installed lens. Ensure that support rods are firmly and properly installed. Ensure that the RED Lens Control Motor and RED Lens Control Motor Mounting Bracket are properly installed and tightened on the support rod.

  • Page 55: Troubleshoot Wireless Operations

    The T.H.C. retains the MAC address for the W.M.D. (or other controller) that it is paired to. POTENTIAL RESOLUTION Connect the T.H.C. to the W.M.D. using the RED CAN Command Cable: ® 1. Connect one end of the 4-pin 0B LEMO CAN connector cable to the CAN port on the W.M.D.
  • Page 56 25 feet) to the W.M.D., select Low. When the T.H.C. is farther away (more than 25 feet) from the W.M.D., select High. Ensure that the RED T.H.C. and W.M.D. Antenna is securely connected to the T.H.C. and W.M.D. Ensure that the T.H.C. is fully charged.

  • Page 57: Troubleshoot Firmware Upgrade

    Ensure that there is no other data on the microSD card besides the upgrade file. Use the microSD card provided by RED. If you are unable to use the microSD card provided by RED, you may need to experiment with different brands or models of microSD cards or SD card adaptors.

  • Page 58: Appendix A: Technical Specifications

    RED 3-AXIS SYSTEM OPERATION GUIDE APPENDIX A: TECHNICAL SPECIFICATIONS TACTICAL HAND CONTROLLER (T.H.C.) Dimensions Height (with antenna): 9.00" (228.6 mm) Height (without antenna): 8.08" (205.2 mm) Width: 3.50" (88.9 mm) Depth: 4.32" (109.7 mm) Weight 32.1 oz (885 g) Material...

  • Page 59: Wireless Motor Driver (W.m.d.)

    25 W 1. The operating temperature range represents the low and high ambient temperature that the RED Lens Control Motor operates in without user- intervention and is consistent with most other professional electronic imaging equipment. Extreme conditions require adequate preparation and on-set handling.

  • Page 60: Red Li Battery 7.2V

    RED 3-AXIS SYSTEM OPERATION GUIDE RED LI BATTERY 7.2V Dimensions Height: 1.50" (38.1 mm) Width: 0.80" (20.3 mm) Depth: 2.20" (55.8 mm) Weight 2.8 oz (78 g) Battery Capacity 2200 mAh at 7.2 V Nominal Energy 15 Wh Run Time...

  • Page 61: Appendix B: 3-Axis System Compatibility

    Hedén M26VE Preston DM1 Preston DM1x Preston DM2 COMPATIBLE MOTOR DRIVERS RED Lens Control Motors are compatible with the following motor drivers, which require a 3.3KΩ resistance, using the RED Lens Motor Cable (3.3KΩ version): ® Bartech Focus Device, single-axis system...

  • Page 62: Compatible Lenses

    0.6 M As with most lens control motors, there are some lenses that are too large, too heavy, or too stiff for the RED DLM1 motor. Additionally, cold ambient temperatures may also make it more difficult for the motor to rotate the lens.

  • Page 63: Appendix C: Connector And Cable Pinouts

    (W.M.D.), RED Tactical Hand Controller (T.H.C.), RED Lens Control Motor, and RED connector cables that are used with the system components. NOTE: When connecting a cable to a connector, align the key and red marker on the cable connector with the corresponding key and marker on the device connection.

  • Page 64: Connectors

    RED 3-AXIS SYSTEM OPERATION GUIDE W.M.D. CONNECTORS Figure: W.M.D. Connections # CONNECTOR CONNECTOR TYPE CONNECTOR FUNCTION ® 1 FOCUS 7-pin 1B LEMO Lens motor drive support; Focus control knob on T.H.C. 2 IRIS 7-pin 1B LEMO Lens motor drive support; Iris control knob on T.H.C.
  • Page 65 RED 3-AXIS SYSTEM OPERATION GUIDE W.M.D. LENS MOTOR CONNECTOR The W.M.D. Lens Motor connector is an industry-standard 7-pin 1B LEMO connector. Figure: W.M.D. 7-Pin 1B Lens Drive Connector 7-PIN 1B LEMO LENS DRIVE CONNECTOR SIGNAL Motor (+) Motor (–) Encoder A...
  • Page 66 RED 3-AXIS SYSTEM OPERATION GUIDE W.M.D. CAN CONNECTOR The W.M.D. CAN connector is a 4-pin 0B LEMO connector that provides power and CAN communications between the W.M.D. and T.H.C., or other auxiliary devices. Figure: W.M.D. 4-Pin 0B CAN Connector 4-PIN 0B LEMO CAN CONNECTOR...
  • Page 67 RED 3-AXIS SYSTEM OPERATION GUIDE W.M.D. START/STOP/TALLY EXPANSION CONNECTOR The W.M.D. Start/Stop/Tally expansion connector is a 14-pin 1B connector that provides expansion (EXP) support for the RED 3-Axis Lens Control System. Figure: W.M.D. 14-Pin Start/Stop and Tally Connector 14-PIN 1B LEMO START/STOP EXPANSION CONNECTOR...
  • Page 68 RED 3-AXIS SYSTEM OPERATION GUIDE W.M.D. AUX CONNECTOR The W.M.D. AUX connector is a 10-pin 1B connector used for RS-232 communication and power with other third-party systems and accessories. Figure: W.M.D. 10-pin 0B RS232 Connector 6-PIN 0B LEMO AUX CONNECTOR...
  • Page 69 RED 3-AXIS SYSTEM OPERATION GUIDE W.M.D. POWER CONNECTOR The W.M.D. PWR connector is a 2-pin 1B LEMO power connector to supply power to the W.M.D. from your camera or other power modules. Figure: W.M.D. 2-Pin 1B Power Connector 2-PIN 1B LEMO POWER CONNECTOR...

  • Page 70: Connectors

    RED 3-AXIS SYSTEM OPERATION GUIDE T.H.C. CONNECTORS Figure: T.H.C. Connections CONNECTOR CONNECTOR TYPE CONNECTOR FUNCTION 6-pin 0B LEMO RS-232 communication to auxiliary devices 4-pin 1B LEMO CAN communication and power from the W.M.D. C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...
  • Page 71 RED 3-AXIS SYSTEM OPERATION GUIDE T.H.C. AUX CONNECTOR The T.H.C. AUX connector is a 6-pin 0B LEMO connector on the T.H.C. used for RS-232 communications and power with third-party systems and accessories. NOTE: The T.H.C. Auxiliary (AUX) connector is for future development and is not currently needed for operation.
  • Page 72 RED 3-AXIS SYSTEM OPERATION GUIDE T.H.C. CAN CONNECTOR The T.H.C. CAN connector is a 4-pin 0B LEMO connector that provides power and CAN communications between the W.M.D. and T.H.C., or other auxiliary devices. Figure: T.H.C. 4-Pin 0B CAN Connector 4-PIN 0B LEMO CAN CONNECTOR...

  • Page 73: Red Lens Control Motor Connectors

    RED 3-AXIS SYSTEM OPERATION GUIDE RED LENS CONTROL MOTOR CONNECTORS Figure: RED Lens Control Motor Connection CONNECTOR TYPE CONNECTOR FUNCTION 7-pin 1B LEMO Lens motor drive support C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...
  • Page 74 RED 3-AXIS SYSTEM OPERATION GUIDE RED LENS CONTROL MOTOR CONNECTOR The RED Lens Control Motor connector is an industry-standard 7-pin 1B LEMO connector. Figure: RED Lens Control Motor 7-Pin 1B Connector 7-PIN 1B LEMO LENS DRIVE CONNECTOR PING SIGNAL Motor (+) Motor (–)

  • Page 75: 3-Axis System Cables

    This section provides the pinout information for each side of each cable. RED W.M.D. MOTOR CABLE (FOCUS, IRIS, ZOOM) The RED W.M.D. Motor Cable is a 7-pin 1B to 7-pin 1B LEMO cable used to connect your RED Lens Control Motor to your RED W.M.D. RED offers the following cables: 790-0434: RED W.M.D.
  • Page 76 RED 3-AXIS SYSTEM OPERATION GUIDE RED W.M.D. MOTOR CABLE (FOCUS, IRIS, ZOOM) PINOUT Figure: Front Face View J1 (Left) RED W.M.D. MOTOR CABLE (FOCUS, IRIS, ZOOM) SIGNAL WIRE COLOR J1-1 J2-1 Motor (+) J1-2 J2-2 Motor (–) Black J1-3 J2-3 Encoder A...
  • Page 77 RED LENS CONTROL MOTOR CABLE (3.3KΩ 0VERSION) The RED Lens Control Motor Cable (3.3KΩ Version) provides a 7-pin 1B to 7-pin 1B LEMO cable used to connect RED Lens Control Motors to compatible third- party motor drivers. This cable provides a 3.3k ohms (Ω) resistance identification to the motor driver.
  • Page 78 RED 3-AXIS SYSTEM OPERATION GUIDE RED LENS CONTROL MOTOR CABLE (3.3KΩ VERSION) PINOUT Figure: Front Face View J1 (Left) RED W.M.D. MOTOR CABLE (FOCUS, IRIS, ZOOM) SIGNAL WIRE COLOR J1-1 J2-1 Motor (+) J1-2 J2-2 Motor (–) Black J1-3 J2-3 Encoder A...
  • Page 79 The RED CAN Command Cable is a 4-pin 0B to 4-pin 0B LEMO cable that provides CAN communications and power from the W.M.D. to the T.H.C. It is used for wired operation and wireless pairing of T.H.C. units. RED offers the...
  • Page 80 RED 3-AXIS SYSTEM OPERATION GUIDE RED CAN COMMAND CABLE PINOUT Figure: Front Face View J1 (Left) RED CAN COMMAND CABLE SIGNAL WIRE COLOR J1-1 J2-1 Black J1-2 J2-2 CANL Yellow J1-3 J2-3 CANH Green J1-4 J2-4 J1-SHELL J2-SHELL GND (Shield) Braid Shield C O PYR I G HT ©...
  • Page 81 RED 3-AXIS SYSTEM OPERATION GUIDE R.C.P. DEVELOPER KIT-TO-T.H.C. CONNECTOR CABLE The R.C.P.™-to-T.H.C. Connector Cable (3') is a 6-pin 0B to 6-pin 0B LEMO cable that enables you to pair the T.H.C. ® ® to the R.C.P. Bridge to control the iris and focus of motorized Canon and Nikon lenses.
  • Page 82 RED 3-AXIS SYSTEM OPERATION GUIDE R.C.P.-TO-T.H.C. CONNECTOR CABLE PINOUT Figure: Front Face View J1 (Left) R.C.P.-TO-T.H.C. CONNECTOR CABLE SIGNAL WIRE COLOR J1-1 J2-1 Black J1-2 J2-3 Green J1-3 J2-2 Yellow J1-4 J1-5 J1-6 J1-SHELL J2-SHELL GND (Shield) Braid Shield C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...
  • Page 83 W.M.D. POWER CABLE 2-PIN 1B TO 2-PIN 0B The W.M.D. Power Cable 2-Pin 1B to 2-Pin 0B (18") connects your RED W.M.D. to a standard 12 V 2-pin 0B LEMO accessory port (found on the QUICKPLATE Module and REDVOLT XL Module) to power the RED 3-Axis Lens Control System.
  • Page 84 W.M.D. POWER CABLE 2-PIN 1B TO 4-PIN XLR The RED W.M.D. Power Cable 2-Pin 1B to 4-Pin XLR (8') connects your RED W.M.D. to a 12v 4-pin XLR standard accessory port to power the RED 3-AXIS Lens Control System. RED offers the following cable: 790-0411: W.M.D.
  • Page 85 RED 3-AXIS SYSTEM OPERATION GUIDE W.M.D. POWER CABLE 2-PIN 1B TO 4-PIN XLR PINOUT Figure: Front Face View of J1 (Left) and J2 (Right) W.M.D. POWER CABLE 2-PIN 1B TO 4-PIN XLR SIGNAL WIRE COLOR J1-1 J2-1 Black J1-2 J1-3...
  • Page 86 NOTE: When using the RED Start/Stop Cable (1B to Sync, CTRL, BNC), you must configure the W.M.D. for DSMC start/stop operation only. On the W.M.D., go to Select > Start/Stop > DSMC.
  • Page 87 RED 3-AXIS SYSTEM OPERATION GUIDE RED START/STOP CABLE (1B TO SYNC, CTRL, BNC) PINOUT Figure: Front Face View J1 (Left) and J3 (Right) RED START/STOP CABLE (1B TO SYNC, CTRL, BNC) SIGNAL WIRE COLOR J1-1 J2-1 J3-1 Yellow J1-2 J3-4 232_Rx...
  • Page 88 RED START/STOP CABLE (1B TO BNC) The RED Start/Stop Cable (1B to BNC) is used with the Sync Cable to provide start/stop support and allow external timecode and genlock to be connected to the camera. This cable connects to the EXP port on the W.M.D. and an auxiliary device for start/stop, genlock, and timecode.
  • Page 89 RED 3-AXIS SYSTEM OPERATION GUIDE RED START/STOP CABLE (1B TO BNC) PINOUT Figure: Front Face View of J1 (Left) RED START/STOP CABLE (1B TO BNC) SIGNAL WIRE COLOR J1-1 J2-1 (SHELL) Yellow J1-2 232 Rx J1-3 +12 VDC J1-4 232 Tx...
  • Page 90 790-0428: RED Start/Stop Cable (1B to 00B Sync) NOTE: When using the RED Start/Stop Cable (1B to 00B Sync), you must configure the W.M.D. for DSMC start/stop operation only. On the W.M.D., go to Select > Start/Stop > DSMC.
  • Page 91 RED 3-AXIS SYSTEM OPERATION GUIDE RED START/STOP CABLE (1B TO 00B SYNC) PINOUT Figure: Front Face View of J1 (Left) and J2 (Right) RED START/STOP CABLE (1B TO 00B SYNC) SIGNAL WIRE COLOR J1-1 J2-1 Yellow J1-2 232 Rx J1-3 +12 VDC...

  • Page 92: Appendix D: W.m.d. Main Menu Map

    RED 3-AXIS SYSTEM OPERATION GUIDE APPENDIX D: W.M.D. MAIN MENU MAP W.M.D. MAIN MENU PROFILES WIRELESS STATUS METADATA START/STOP OPTIONS ABOUT FOCUS, IRIS, } Prime } Focus Status } Focus Data } Off } Button Lock } Radio } Firmware Version...

This manual is also suitable for:
