Summary of Contents for RED DSMC SIDE HANDLE

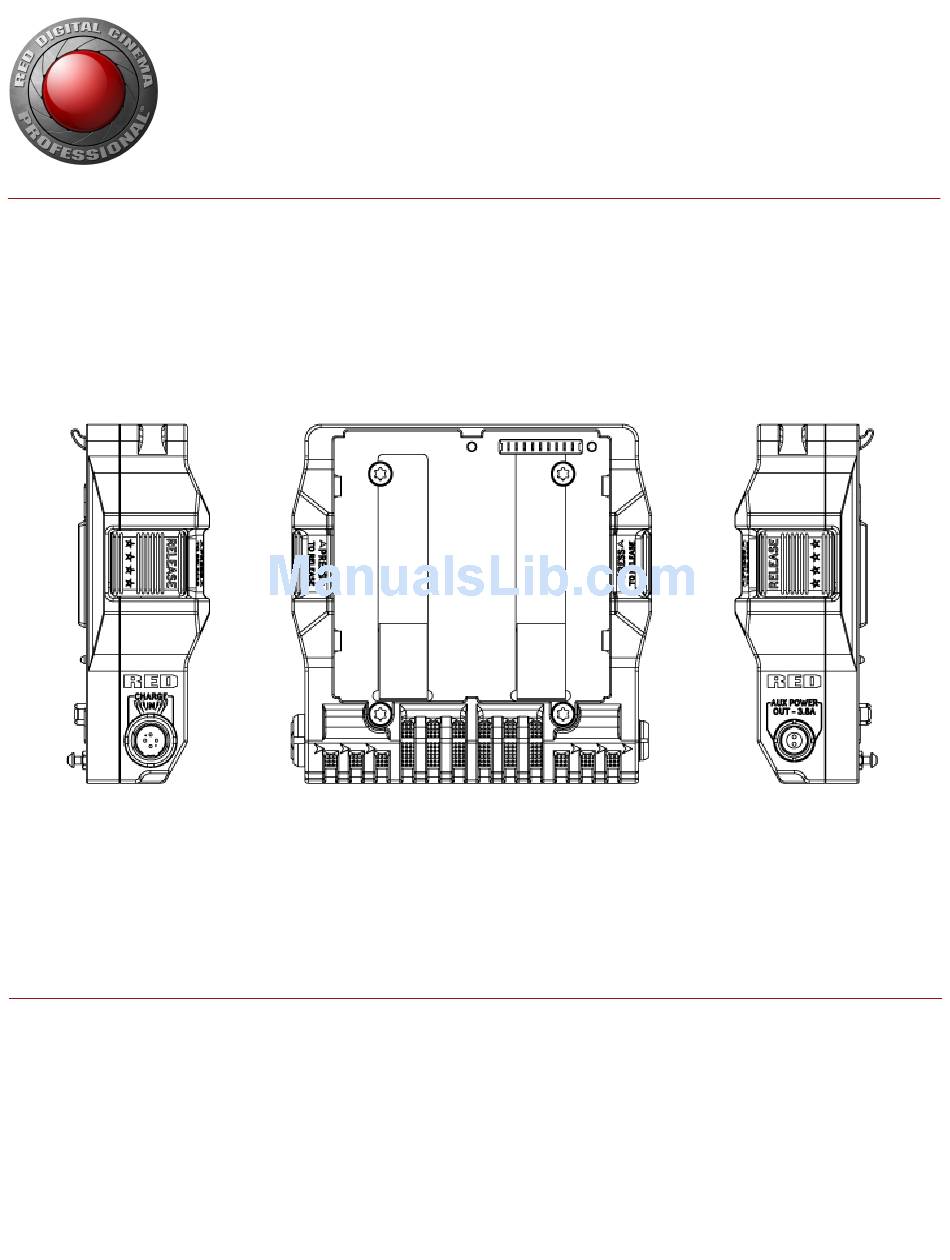

  • Page 1: Operation Guide

    RED DSMC POWER OPERATION GUIDE POWER MODULES CHARGERS BATTERIES CABLES ACCESSORIES RED.COM...
  • Page 2: Table Of Contents

    RED DSMC POWER OPERATION GUIDE TABLE OF CONTENTS REDVOLT-V Table of Contents Disclaimer 6 RED Chargers Copyright Notice REDVOLT Travel Charger Trademark Disclaimer REDVOLT Charger (Quad) Compliance Statements RED BRICK Charger Safety Instructions 7 Power Adaptors, Cables, and Accessories Battery Storage and Handling...
  • Page 3: Disclaimer

    Class B digital information. While thought to be accurate, the information in this device, pursuant to part 15 of the FCC Rules. document is provided strictly “as is” and RED will not be held These limits...
  • Page 4 RED DSMC POWER OPERATION GUIDE JAPAN STATEMENTS   This is a Class B product based on the WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) standard of the Voluntary Control Council Waste Electrical Electronic for Interference (VCCI) for information Equipment (WEEE) mark applies only to technology equipment.
  • Page 5: Safety Instructions

    CAUTION: Refer all service and repair to If there are any performance issues when operating within this qualified RED service personnel. To reduce the temperature range, please file a support ticket at risk of electric shock, and damage to the https://support.red.com.
  • Page 6: Battery Storage And Handling

    (32˚F to 104˚F). and remember to charge batteries to a capacity level of 40% to 60%. If batteries will be stored for long periods of time, RED recommends RED recommends that you only use RED chargers to recharge that you check the charge level at least once every six (6) months, RED batteries.
  • Page 7: Power Introduction

    Failure to do so may result in damage to the item or camera that is not covered under warranty. READ BEFORE YOU SHOOT Read this operation guide carefully and in its entirety before assembling or operating your camera or other RED accessories. To see additional RED operation guides, go to RED Downloads at www.red.com/downloads.
  • Page 8: Turn On The Camera

    The Power Status LED then illuminates green to confirm that the camera is turned on and ready to use. NOTE: The Power Status LED flashes red when there is less than five (5) minutes of operating time remaining. TURN OFF THE CAMERA Use one of the following methods to turn off the camera: Go to Menu >...
  • Page 9: Epic/Scarlet Power Operations

    ® NOTE: Additionally, one (1) REDVOLT battery may be used in conjunction with the DSMC Side Handle to provide short term power and support hot-swapping of other power sources. C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...
  • Page 10 REDVOLT-V™: Powers the camera and accessories for approximately 35 minutes. REDVOLT XL: Powers the camera and accessories for approximately 90 minutes. RED BRICK: Powers the camera and accessories for approximately 120 minutes. C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...
  • Page 11: Dsmc2 Power Operations

    WARNING: While third-party batteries may be mechanically compatible with the camera system, the manufacturer is responsible for the performance and stability of third-party options, not RED. Damage to the camera system or third- party devices caused by using third-party power options is not covered under warranty. The camera may be unable to determine and display the voltage or remaining battery capacity of third-party power options.
  • Page 12 DSMC2 POWER CONSUMPTION The WEAPON, SCARLET-W, RAVEN, and EPIC-W draw approximately 3.3 A (50 W) when configured with the DSMC2 Base Expander, DSMC2 RED Touch 7.0" LCD, and RED MINI-MAG 512GB. Under typical conditions batteries provide the following operating time: REDVOLT: Powers the camera and accessories for approximately 30 minutes.
  • Page 13 WARNING: While third-party batteries may be mechanically compatible with the camera system, the manufacturer is responsible for the performance and stability of third-party options, not RED. Damage to the camera system or third- party devices caused by using third-party power options is not covered under warranty. The camera may be unable to determine and display the voltage or remaining battery capacity of third-party power options.
  • Page 14 RED DSMC POWER OPERATION GUIDE AUTO BOOT ON POWER The DSMC2 Jetpack Expander, DSMC2 Jetpack-SDI Expander, DSMC2 REDVOLT Expander, and the DSMC2 V-Lock I/O Expander feature a selector switch that enables the camera to automatically boot when power is provided via the DC IN connector on the expander.
  • Page 15: Basic Battery Operations

    PERFORM A FULL CHARGE RED recommends that you perform a full charge, also known as a deep charge, at least once every 10 battery charge cycles. A full charge consists of discharging a battery completely, and then recharging it to maximum capacity.
  • Page 16: Additional Resources

    (3) to four (4) LEDs are illuminated on a RED BRICK. For long term storage over six (6) months, RED recommends that you check the charge level at least once every six (6) months, and recharge batteries to a capacity level of 40% to 60%.
  • Page 17: Power Components

    RED DSMC POWER OPERATION GUIDE POWER COMPONENTS Figure: REDVOLT XL Power Pack ® This chapter provides an overview of the DSMC power components, including: "EPIC/SCARLET Power Modules" on the next page "DSMC2 Power Modules" on page 19 "RED Chargers" on page 21 "Power Adaptors, Cables, and Accessories"...
  • Page 18: Epic/Scarlet Power Modules

    EPIC/SCARLET modules enable you to configure your camera for your exact shooting requirements and are designed ® ® to support REDVOLT , REDVOLT-V™, REDVOLT XL, and RED BRICK batteries. Most modules require an adaptor ® module to attach to the BRAIN .
  • Page 19: Dsmc2 Power Modules

    RED EPIC-W Figure: DSMC2 REDVOLT XL Module DSMC2 modules enable you to configure your camera for your exact shooting requirements and are designed to support REDVOLT, REDVOLT-V, REDVOLT XL, and RED BRICK batteries. For more information, go to "DSMC2 Power Modules" on page 47.
  • Page 20: Red Batteries

     4. A DSMC2 V-Lock I/O Expander, Battery Belt Clip, RED Quickplate, RED Cradle, DSMC2 V-Lock Battery Module, or DSMC2 V-Lock Battery Module Pro is required to use a RED BRICK battery with these cameras. The RED Quickplate and RED Cradle require a 2B-to-1B Power Adaptor Cable.
  • Page 21: Red Chargers

    RED DSMC POWER OPERATION GUIDE RED CHARGERS This section describes RED chargers used to recharge RED lithium-ion batteries. Figure: REDVOLT Travel Charger RED chargers are used to REDVOLT, REDVOLT XL, and RED BRICK lithium-ion batteries. For more information, go to "RED Chargers" on page 67.
  • Page 22: Power Adaptors, Cables, And Accessories

    POWER ADAPTORS, CABLES, AND ACCESSORIES This section describes power adaptors, cables, and other accessories. Figure: DSMC AC Power Adaptor RED power adaptors, cables, and accessories are hand-made and expertly crafted to the highest standards. RED ® performance cables feature robust industry-standard LEMO connectors, and are available in a variety of connector sizes and lengths to support displays, modules, and other camera accessories.
  • Page 23 Power Cable (10') EPIC-W  1. While the 2B-to-1B Adaptor Cable is compatible with WEAPON, SCARLET-W, RAVEN, and EPIC-W cameras, RED does not recommend using it with these cameras. If using the RED BRICK Charger, use the RED 2B-To-1B LEMO Power Cable instead.
  • Page 24: Epic/Scarlet Power Modules

    EPIC/SCARLET cameras. This chapter describes installation and operation information for the following EPIC/SCARLET power modules: "DSMC Side Handle" on the next page "Module Adaptor" on page 26 "+1 Adaptor Module" on page 26 "Pro Battery Module (Dual)"...
  • Page 25: Dsmc Side Handle

    Any DSMC Side Handle that is upgraded to v5.3 can only be used with cameras running v5.2 or later. In order to use a DSMC Side Handle with v5.1 after you have upgraded it to v5.3, first downgrade to v5.2, and then downgrade to v5.1.
  • Page 26: Epic/Scarlet Adaptor Modules

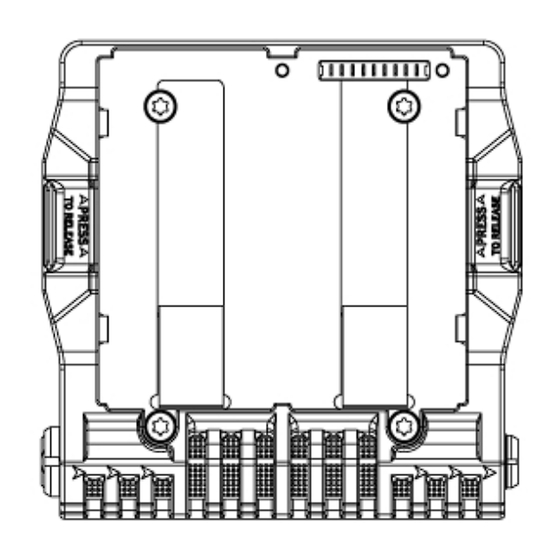

    RED DSMC POWER OPERATION GUIDE EPIC/SCARLET ADAPTOR MODULES This section describes the EPIC/SCARLET adaptor modules. MODULE ADAPTOR The Module Adaptor mounts to the back of the EPIC/SCARLET BRAIN and provides power and support for connected modules. The Module Adaptor includes 1/4-20 mounting holes for customized configuration support. Most EPIC/SCARLET modules require the use of an adaptor module.
  • Page 27 RED EVF or LCD; Pinout not published Auxiliary power 4-pin 0B LEMO Supplies unregulated (+) 11.5 to 17 VDC battery pass-through; out (PWR) Connect to 2-pin LEMO accessories with RED 4-Pin to 2-Pin Adaptor Cable; Max sustained current is 2 A ® REDMOTE dock...
  • Page 28 RED DSMC POWER OPERATION GUIDE AUXILIARY POWER OUT (PWR) The auxiliary power output supplies unregulated +11.5 to +17 VDC battery pass- through power. The maximum sustained current draw is 2.0 A. Figure: Front Face of the Power (PWR) Connector 4-PIN 0B LEMO PWR CONNECTOR...
  • Page 29: Epic/Scarlet Adaptor Operations

    RED DSMC POWER OPERATION GUIDE EPIC/SCARLET ADAPTOR OPERATIONS This section describes the installation and removal of EPIC/SCARLET module adaptors. INSTALL THE +1 ADAPTOR MODULE ® REQUIRED TOOL(S): T20 TORX driver  1. Turn off the camera.  2. Remove the REDMOTE, if attached.
  • Page 30 RED DSMC POWER OPERATION GUIDE  5. Apply pressure and tighten the four (4) captive screws in a cross pattern (“X” pattern) approximately two (2) turns each using a T20 TORX driver. DO NOT FULLY TIGHTEN. Figure: Install Screws  6. Fully tighten the four (4) screws in a cross pattern (“X” pattern).
  • Page 31: Epic/Scarlet Power Module Operations

    RED DSMC POWER OPERATION GUIDE EPIC/SCARLET POWER MODULE OPERATIONS This section describes the attachment and removal of EPIC/SCARLET modules. These instructions are applicable to all EPIC/SCARLET modules, except adaptor modules. The Pro Battery Module (Quad) is shown. WARNING: DSMC modules attach to an adaptor module. DSMC modules DO NOT attach directly to the BRAIN.
  • Page 32 RED DSMC POWER OPERATION GUIDE  3. Rotate the module down flush with the rear of the adaptor module. Figure: Press Module Flush  4. Apply pressure and use a T20 TORX driver to rotate the lock on the adaptor module clockwise to the Lock position.
  • Page 33: Pro Battery Module (Dual)

    RED DSMC POWER OPERATION GUIDE PRO BATTERY MODULE (DUAL) Figure: Pro Battery Module (Dual) The Pro Battery Module (Dual) provides power to the EPIC/SCARLET camera using two (2) REDVOLT batteries. The Pro Battery Module (Dual) also supports hot swapping of REDVOLT batteries. Attaching outrigger handles and other tactical gear is convenient using the 1/4-20 mounting points on the top of the module.
  • Page 34: Pro Battery Module (Quad)

    RED DSMC POWER OPERATION GUIDE INSERT A BATTERY  1. Align and insert the REDVOLT battery.  2. Apply pressure to the battery until a click is heard, signalling the battery is properly seated. REMOVE A BATTERY  1. Press the Eject button to release the REDVOLT from the module.
  • Page 35 RED DSMC POWER OPERATION GUIDE PRO BATTERY MODULE (QUAD) LEDS Each battery compartment has an LED and battery eject button to show the corresponding battery status. COLOR/FLASHING DESCRIPTION No battery Green Battery is charged, but is not in use Green flashing...
  • Page 36: Redvolt Xl Module

    When the module is attached to the EPIC/SCARLET, a connected REDVOLT XL battery powers the system. Batteries can also be hot-swapped, as long as power is provided from a REDVOLT-equipped DSMC Side Handle or a DSMC AC Power Adaptor is connected to the DC IN port on the EPIC/SCARLET. The on-board 2-pin 0B AUX port provides a convenient 3.8 A power source for additional camera accessories.
  • Page 37 RED DSMC POWER OPERATION GUIDE REDVOLT XL MODULE CONNECTIONS Figure: REDVOLT XL Module # CONNECTOR CONNECTOR TYPE CONNECTOR FUNCTION 1 AUX POWER 2-pin 0B LEMO Provides 3.8 A max current out for 2-pin based accessories OUT - 3.8 A when the module is receiving power...
  • Page 38 Serial battery bus clock NOTE: Mating connector is FGJ.1B.306.CWLD72Z. COMPATIBLE CABLES 790-0138: RED 2B-to-1B LEMO Power Adaptor Cable 790-0164: XLR Power Cable (10') 790-0165: XLR Power Cable (30') C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...
  • Page 39 Battery is fully charged Green flashing Charging; half second on, half second off Green/Red flashing Lamp self test at power up; half second red, half second green Green/Red flashing (alternating) Error; alternating, half second green, half second red, repeat Red flashing Battery discharge alert;...
  • Page 40 RED DSMC POWER OPERATION GUIDE INSTALL THE REDVOLT XL MODULE The REDVOLT XL Module is designed with a reversible switch plate, enabling direct installation to the EPIC/SCARLET BRAIN or mounting to other modules. For more information on installing and removing the REDVOLT XL Module, go to: "EPIC/SCARLET Adaptor Operations"...
  • Page 41 RED DSMC POWER OPERATION GUIDE INSERT A REDVOLT XL  1. Align and insert the REDVOLT XL.  2. Apply pressure to the battery until a click is heard, signaling the battery is properly seated. Figure: Insert a REDVOLT XL Battery REMOVE A REDVOLT XL  1.
  • Page 42: Quickplate Module

    The Quickplate Module also provides two (2) auxiliary ports to provide power for camera accessories. AUX ports draw power from an attached RED BRICK or REDVOLT-V if one (1) is attached. If a RED BRICK or REDVOLT-V is not attached, ports draw power from the BRAIN through the SEARAY connector.
  • Page 43 2 A, the other can provide up to 1.8 A. NOTE: Align the key and red mark on the AUX port with the key on the cable connector to connect. Figure: Front Face of Quickplate Module AUX Connector...
  • Page 44: Backpack Quickplate (Short)

    Figure: Backpack Quickplate (Short) and Backpack Base Plate The Backpack Quickplate and Backpack Quickplate (Short) attach to the Backpack Base Plate to support a RED BRICK or REDVOLT-V. The Backpack Quickplate provides power to the DC IN rear power connector on the BRAIN using the attached 6-pin 1B LEMO cable.
  • Page 45 RED DSMC POWER OPERATION GUIDE CAN BACKPACK QUICKPLATE (SHORT) CONNECTORS The Backpack Quickplate (Short) offers two (2) 0B 2-pin AUX ports that provide a maximum combined output of 3.8 A. Figure: Backpack Quickplate (Short) AUX Connector 2-PIN 0B LEMO AUX CONNECTORS...
  • Page 46 NOTE: The release button is black on the Backpack Quickplate and red on the Backpack Quickplate (Short). INSERT A BATTERY  1. Slide the RED BRICK or REDVOLT-V onto the back of the Backpack Quickplate so that it fits into the V-Mount on the back of the Backpack Quickplate.
  • Page 47: Dsmc2 Power Modules

    Before installing or removing these items, you MUST turn off the camera. Failure to do so may result in damage to the item or camera that is not covered under warranty. NOTE: This chapter documents power modules only. To see additional RED operation guides, go to RED Downloads at www.red.com/downloads.
  • Page 48: Dsmc2 Redvolt Xl Module

    RED DSMC POWER OPERATION GUIDE DSMC2 REDVOLT XL MODULE Figure: DSMC2 REDVOLT XL Module The DSMC2 REDVOLT XL Module mounts seamlessly to the back of the WEAPON, SCARLET-W, RAVEN, or EPIC- W—and select other I/O expanders—to provide support for long-lasting and rechargeable REDVOLT XL batteries. The DSMC2 REDVOLT XL Module features a smaller, more ergonomic design compared to the REDVOLT XL Module with one (1) dual-action release button for removing an attached battery.
  • Page 49 RED DSMC POWER OPERATION GUIDE DSMC2 REDVOLT XL MODULE CONNECTIONS Figure: DSMC2 REDVOLT XL Module # CONNECTOR CONNECTOR TYPE CONNECTOR FUNCTION 1 AUX POWER OUT - 3.8 A 2-pin 0B LEMO Provides a combined 3.8 A max current out for 2- pin based accessories when the module is...
  • Page 50 RED DSMC POWER OPERATION GUIDE AUX POWER OUT The 2-pin 0B LEMO AUX POWER OUT port provides a combined maximum 3.8 A of current for camera accessories. That total current is provided through one AUX POWER OUT port, or split between the two ports.
  • Page 51 Serial battery bus clock NOTE: Mating connector is FGJ.1B.306.CWLD72Z. COMPATIBLE CABLES 790-0138: RED 2B-to-1B LEMO Power Adaptor Cable 790-0164: XLR Power Cable (10') 790-0165: XLR Power Cable (30') C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...
  • Page 52 (alternating) Red flashing Battery discharge alert; heartbeat (red) pulse once per minute indicates that the battery is discharging and should be removed from module  1. The DSMC2 REDVOLT XL Module draws a small amount of power any time a battery is attached, when there is no charging source available.
  • Page 53: Dsmc2 V-Lock Battery Module

    The DSMC2 V-Lock Battery Module is a low profile cable-free module that enables you to power your DSMC2 BRAIN and camera accessories using RED BRICK or REDVOLT-V and third-party batteries. The V-Lock and protected release button ensure ongoing power even during mobile shoots.
  • Page 54 RED DSMC POWER OPERATION GUIDE DSMC2 V-LOCK BATTERY MODULE CONNECTOR The DSMC2 V-Lock Battery Module offers one (1) P-Tap connector that provides power (3.0 A max) for camera accessories. Figure: DSMC2 V-Lock Battery Module P-Tap Connector 2-PIN P-TAP CONNECTOR PIN SIGNAL...
  • Page 55: Dsmc2 V-Lock Battery Module Pro

    The DSMC2 V-Lock Battery Module Pro is a low profile cable-free module that enables you to power your DSMC2 BRAIN and camera accessories using RED BRICK, REDVOLT-V, or other standard V-Lock batteries. The V-Lock mount and protected release button ensure ongoing power even during mobile shoots.
  • Page 56 RED DSMC POWER OPERATION GUIDE DSMC2 V-LOCK BATTERY MODULE PRO CONNECTORS Figure: DSMC2 V-Lock Battery Module Pro # CONNECTOR CONNECTOR TYPE CONNECTOR FUNCTION 1 AUX Power (P-TAP) - 3.8 A 2-pin Female Provides a 3.8 A max current when the module is receiving power 2 AUX POWER OUT - 3.8 A...
  • Page 57 RED DSMC POWER OPERATION GUIDE AUX POWER (P-TAP) The DSMC2 V-Lock Battery Module Pro offers one (1) P-Tap connector that provides power (3.8 A max) for camera accessories. Figure: DSMC2 V-Lock Battery Module Pro P-Tap Connector 2-PIN P-TAP CONNECTOR PIN SIGNAL...
  • Page 58 SDA-BATT Serial battery bus clock NOTE: Mating connector is FGJ.1B.306.CWLD72Z. COMPATIBLE CABLES 790-0138: RED 2B-to-1B LEMO Power Adaptor Cable 790-0164: XLR Power Cable (10') 790-0165: XLR Power Cable (30') INSTALL THE DSMC2 V-LOCK BATTERY MODULE PRO REQUIRED TOOL(S): T20 TORX driver  1.
  • Page 59 RED DSMC POWER OPERATION GUIDE INSERT A BATTERY To insert a RED BRICK, REDVOLT-V, or other standard V-Lock battery in the DSMC2 V-Lock Battery Module Pro, follow the instructions below:  1. Install the DSMC2 V-Lock Battery Module Pro. For more information, go to "Install the DSMC2 V-Lock Battery...
  • Page 60: Red Batteries

    WARNING: DO NOT overcharge batteries. Overcharging may increase internal temperature beyond the recommended limits and cause permanent damage to the battery. NOTE: Use of chargers that do not meet RED battery specs, or that apply a higher current to “fast charge” batteries, may degrade the maximum battery capacity and reduce battery life.
  • Page 61: Redvolt And Redvolt Xl

    "Pro Battery Module (Quad)" on page 34 "REDVOLT XL Module" on page 36 (REDVOLT XL only) "DSMC2 REDVOLT XL Module" on page 48 REDVOLT batteries should only be charged using the following approved RED chargers: "REDVOLT Travel Charger" on page 67 "REDVOLT Charger (Quad)" on page 68 "RED BRICK Charger" on page 70 C O PYR I G HT ©...
  • Page 62 The two (2) outside LEDs flash for three (3) seconds Battery error  1. If you receive this battery error, submit a Technical Support request at https://support.red.com. C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...
  • Page 63: Red Brick

    RED DSMC POWER OPERATION GUIDE RED BRICK Figure: RED BRICK The RED BRICK uses multiple lithium-ion rechargeable cells to provide long-term battery power to the camera for ® extended shooting sessions. RED BRICK batteries can be attached to the BRAIN or equipment using a V-Mount battery plate and can also be used to power specific DSMC modules.
  • Page 64 RED BRICK LED ARRAY Figure: RED BRICK LED Array (Approximately 60%) The RED BRICK battery LED array consists of five (5) LEDs and a status button. Press the status button to illuminate the LEDs, displaying the remaining battery charge level in 20% steps.
  • Page 65: Redvolt-V

    1 lb. Compatible with any RED V-Lock battery expander or module (V-LOCK Battery Module, V-LOCK I/O Expander). Charge the battery when you receive it with the RED BRICK Charger. For more information, go to "RED BRICK Charger"...
  • Page 66 RED DSMC POWER OPERATION GUIDE REDVOLT-V LED ARRAY The REDVOLT-V battery LED array consists of three (3) LEDs and a status button. Press the status button to illuminate the LEDs, displaying the remaining battery charge level in 33% steps. LED PATTERN...
  • Page 67: Red Chargers

    Contact our support team for assistance at https://support.red.com, or your Bomb Squad representative. WARNING: Only use a RED approved charger to charge REDVOLT, REDVOLT XL, and RED BRICK batteries. NOTE: The REDVOLT XL Module can also serve as a charger when used with the REDVOLT XL Module base.
  • Page 68: Redvolt Charger (Quad)

    RED DSMC POWER OPERATION GUIDE REDVOLT TRAVEL CHARGER LED INDICATOR The REDVOLT Travel Charger LED indicator displays a specific color and pattern indicating the state of charge. COLOR PATTERN DESCRIPTION Green Charger on, battery fully charged Green/Red flashing (alternating) Charger on, fail condition...
  • Page 69 RED DSMC POWER OPERATION GUIDE REDVOLT CHARGER (QUAD) LED INDICATORS The light on the REDVOLT Travel Charger displays a specific color and pattern indicating the state of charge. COLOR PATTERN DESCRIPTION Green Charger on, battery fully charged Green/Red flashing (alternating)
  • Page 70: Red Brick Charger

    PREPARE THE RED BRICK CHARGER When the RED BRICK Charger is brand new, it may be difficult to connect and disconnect the V-plate adaptor on the RED BRICK or REDVOLT-V. RED recommends that you perform a break-in sequence with a new RED BRICK Charger.
  • Page 71 RED DSMC POWER OPERATION GUIDE RED BRICK CHARGER CONNECTIONS AND FEATURES Figure: RED BRICK Charger CONNECTOR/FEATURE DESCRIPTION Carrying handle Robust carrying handle Battery charging LEDs Indicates battery charge state Auxiliary port LED Indicates auxiliary connection state LEMO auxiliary port 13.8 V/100 W...
  • Page 72  4. Charge the battery until the LED indicator turns green, signalling a fully charged battery.  5. Press the release tab and remove the battery by pulling it up and off of the RED BRICK Charger. NOTE: When a 6-pin LEMO is connected to the auxiliary power output, the charging process is suspended. The auxiliary LED illuminates and the battery LEDs on the charger flashes green.
  • Page 73: Power Adaptors, Cables, And

    "EVF/LCD Cables" on page 76 "4-Pin to 2-Pin Adaptor Cable" on page 77 "2B-to-1B Power Adaptor Cable" on page 77 "RED 2B-To-1B LEMO Power Cable (10')" on page 77 "Pro I/O Aux Power Out + GPIO Cable (6')" on page 78 "XLR Power Cable" on page 78 C O PYR I G HT ©...
  • Page 74: Power Adaptors And Accessories

    RED CRADLE Figure: RED Cradle The RED Cradle enables you to simultaneously mount a RED BRICK and RED DRIVE or RED RAM. NOTE: Requires a 2B-to-1B Power Adaptor Cable for use with the camera. NOTE: The RED Cradle is compatible with EPIC, SCARLET, WEAPON, SCARLET-W, RAVEN, and EPIC-W cameras.
  • Page 75 The RED Quickplate provides a reliable solution for powering the camera with a RED BRICK. NOTE: Requires a 2B-to-1B Power Adaptor Cable for use with the camera. NOTE: The RED Quickplate is compatible with EPIC, SCARLET, WEAPON, SCARLET- W, RAVEN, and EPIC- W cameras.
  • Page 76: Red Cables

    RED DSMC POWER OPERATION GUIDE RED CABLES RED cables and accessories provide solutions for video monitoring, audio, and power supply requirements. EVF/LCD CABLES Figure: EVF/LCD Cable (18") EVF/LCD Cables are high quality cables with industry-standard LEMO connectors. They provide a clean video feed and power source from the EVF/LCD port on the BRAIN to an EVF or LCD display.
  • Page 77 NOTE: The 2-Pin 1B Lemo-to-Flying Lead Cable is compatible with EPIC and SCARLET cameras. 2B-TO-1B POWER ADAPTOR CABLE The 2B-to-1B Power Adaptor Cable enables support for RED ONE power accessories that use 2B LEMO connectors. NOTE: The 2B-to-1B Adaptor Cable is compatible with EPIC, SCARLET, WEAPON, SCARLET-W, RAVEN, and EPIC- W cameras.
  • Page 78 RED DSMC POWER OPERATION GUIDE PRO I/O AUX POWER OUT + GPIO CABLE (6') Figure: Pro I/O Aux Power Out + GPIO Cable (6') The Pro I/O Aux Power Out + GPIO Cable (6') connects to the 4-pin GPIO port and/or 4-pin PWR port on the Pro I/O Module.
  • Page 79: Troubleshoot Camera Power

     1. Connect the battery to the charger again to perform a “top-off” charge.  2. If the problem persists, try charging the battery with a different RED charger. This helps to determine if the problem is with the RED charger.
  • Page 80: Power-Related Issues

    RED DSMC POWER OPERATION GUIDE POWER-RELATED ISSUES LCD BLANK AT STARTUP SYMPTOM When you turn on the camera, the LCD does not show any image. POTENTIAL RESOLUTIONS Turn off the camera. Wait at least three (3) seconds, and then turn the camera back on.
  • Page 81: A Technical Specifications

    RED DSMC POWER OPERATION GUIDE TECHNICAL SPECIFICATIONS EPIC/SCARLET POWER MODULES ® This section provides the technical specifications for EPIC/SCARLET power modules. DSMC SIDE HANDLE SPECIFICATION DESCRIPTION Dimensions Height: 4.96" (126 mm) Width: 2.76" (70 mm) Depth: 3.31" (84 mm) Weight Approximately 1.01 lbs (458 g), Module only...
  • Page 82 RED DSMC POWER OPERATION GUIDE +1 ADAPTOR MODULE SPECIFICATION DESCRIPTION Dimensions Height: 4.29" (109 mm) Width: 3.54" (90 mm) Depth: 0.87" (22 mm) Weight Approximately 0.75 lbs (349 g), Module only Construction Aluminum Alloy Operating Temperature 0°C to 40°C (32 to 104°F) Storage Temperature –20°C to 50°C (–4°F to 122°F)
  • Page 83 RED DSMC POWER OPERATION GUIDE REDVOLT XL MODULE SPECIFICATION DESCRIPTION Dimensions Height: 4.29" (109 mm) Width: 4.41" (112 mm) Depth: 1.52" (39 mm) Weight Approximately 0.94 lbs (425 g), Module only Construction Aluminum Alloy Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature –20°C to 50°C (–4°F to 122°F)
  • Page 84: Dsmc2 Power Modules

    RED DSMC POWER OPERATION GUIDE BACKPACK QUICKPLATE (SHORT) MODULE SPECIFICATION DESCRIPTION Dimensions Height: 4.29" (109 mm) Width: 3.54" (90 mm) Depth: 1.28" (33 mm) Weight Approximately 0.82 lbs (371 g), Module only Construction Aluminum Alloy Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature –20°C to 50°C (–4°F to 122°F)
  • Page 85   P-Tap Aux Power output (2-Pin), 3.8 A shared Aux Power output (2-Pin 0B LEMO), 3.8 A shared Battery Compatibility RED BRICK, REDVOLT-V, and other standard V-Lock batteries Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature –20°C to 50°C (–4°F to 122°F) Firmware Requirement Compatible with all DSMC2 firmware v6.3.102 or later...
  • Page 86: Red Batteries

    RED DSMC POWER OPERATION GUIDE RED BATTERIES This section describes the technical specifications for RED batteries. REDVOLT SPECIFICATION DESCRIPTION Dimensions Height: 3.21" (82 mm) Width: 1.67" (43 mm) Depth: 1.68" (43 mm) Weight Approximately 0.55 lbs (249 g) Battery Type...
  • Page 87 –20˚C to 50˚C (–4˚F to 122˚F) Charger Compatibility RED BRICK Charger, DSMC2 V-Lock Battery Module Pro  1. Temperature stated above is optimal. Batteries continue to charge up to 50˚C (122˚F). If batteries become too hot during charging, they will stop charging until they have returned to an acceptable temperature <45˚C (<113˚F).
  • Page 88 –20˚C to 50˚C (–4˚F to 122˚F) Charger Compatibility RED BRICK Charger, DSMC2 V-Lock Battery Module Pro  1. Temperature stated above is optimal. Batteries continue to charge up to 50˚C (122˚F). If batteries become too hot during charging, they will stop charging until they have returned to an acceptable temperature <45˚C (<113˚F).
  • Page 89: Red Chargers

    RED DSMC POWER OPERATION GUIDE RED CHARGERS This section describes the technical specifications for RED chargers. REDVOLT TRAVEL CHARGER SPECIFICATION DESCRIPTION Dimensions Height: 4.29" (109 mm) Width: 4.41" (112 mm) Depth: 1.52" (39 mm) Weight Approximately 0.48 lbs (218 g), Charger only Power Supply 100-240 V, .8 A , 50-60 Hz...
  • Page 90 RED DSMC POWER OPERATION GUIDE RED BRICK CHARGER SPECIFICATION DESCRIPTION Dimensions Height: 10.25" (260 mm) Width: 3.20" (81 mm) Depth: 5.25" (133 mm) Weight Approximately 2.56 lbs (1,163 g), Charger only Auxiliary Power Output 13.8 V, 100 W (max) Operating Temperature 0˚C to 40˚C (32˚F to 104˚F)
  • Page 91: B Epic/Scarlet Module Compatibility

    RED DSMC POWER OPERATION GUIDE EPIC/SCARLET MODULE COMPATIBILITY ® This chapter provides information on EPIC/SCARLET module types, mounting priority, module restrictions, and compatibility. EPIC/SCARLET MODULE TYPES AND PRIORITY ® Attach modules to the EPIC/SCARLET BRAIN in the order outlined below to optimize power distribution, cable position, and access to batteries, media, and controls.
  • Page 92: Module Restrictions

    RED DSMC POWER OPERATION GUIDE PRO I/O MODULE Figure: Module Adaptor and Pro I/O Module When using a Pro I/O Module along with other EPIC/SCARLET modules, ensure that it is attached closest to the BRAIN, behind the Module Adaptor or +1 Adaptor Module. This improves access to cables, modules, and batteries, as well as ensuring proper power distribution.
  • Page 93: Maximum Supported Modules

    RED DSMC POWER OPERATION GUIDE MAXIMUM SUPPORTED MODULES EPIC/SCARLET supports a maximum of four (4) modules at a time, or up to one (1) of each module type. A REDMOTE or other device may be attached at the rear of the camera configuration.
  • Page 94: Epic/Scarlet Module Compatibility Matrix

    RED DSMC POWER OPERATION GUIDE EPIC/SCARLET MODULE COMPATIBILITY MATRIX DSMC MODULE  PRO BATTERY BACKPACK QUICKPLATE REDVOLT REDMOTE MODULES ADAPTOR ADAPTOR MODULE (DUAL) BATTERY QUICKPLATE MODULE MODULE MODULE (SHORT) MODULE MODULE (QUAD) √ √ √ √ √ √ √ MODULE ADAPTOR +1 ADAPTOR √...
