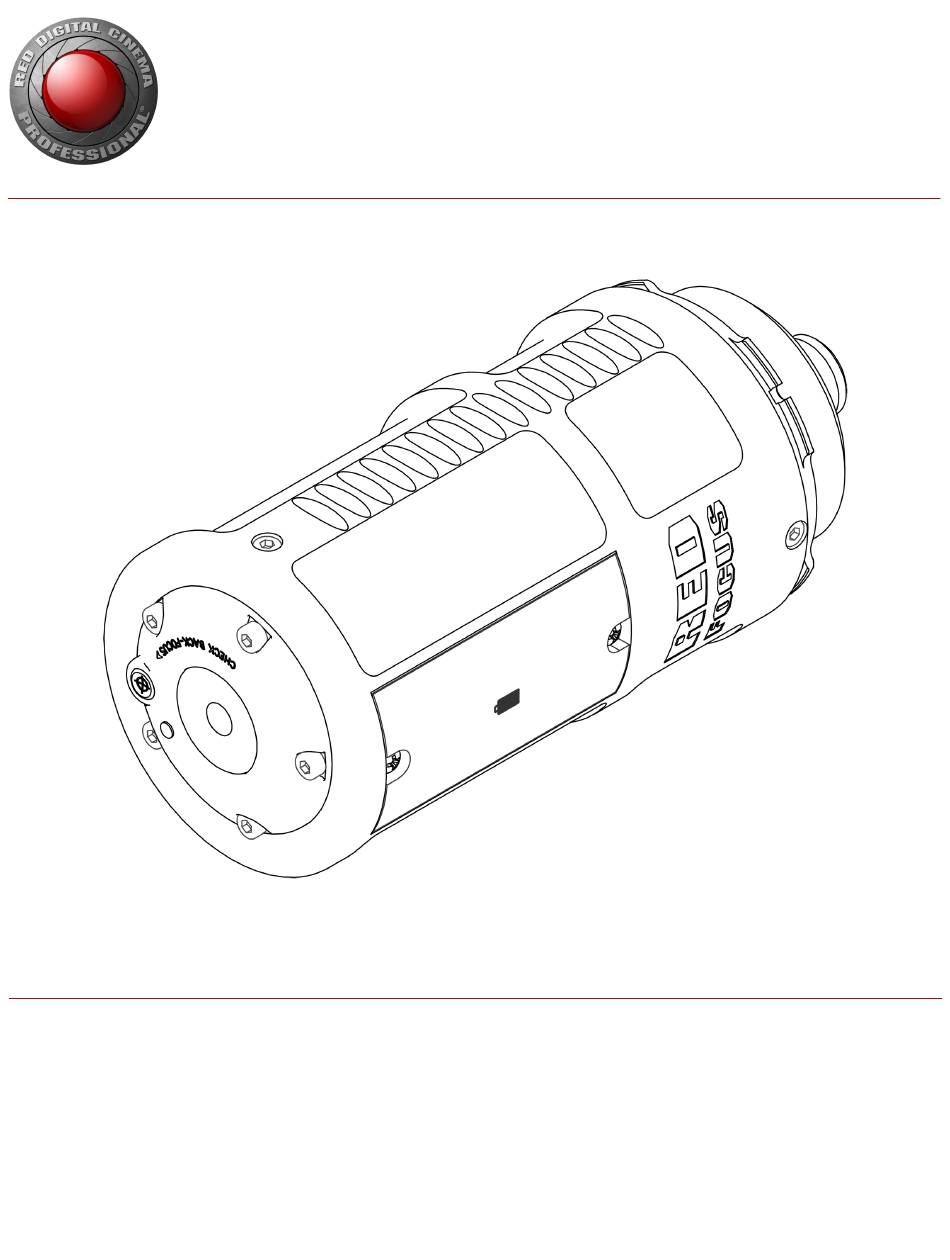

Page 1: Operation Guide
RED FOCUS OPERATION GUIDE RED ONE EPIC EPIC-W SCARLET WEAPON SCARLET-W RED.COM... -
Page 2: Table Of Contents
Power Consumption CHAPTER 3: Use with RED ONE RED ONE Back Focus Adjustment CHAPTER 4: Use with EPIC and SCARLET 13 Adjust Back Focus of EPIC and SCARLET CHAPTER 5: Use with WEAPON and SCARLET-W Adjust Back Focus of WEAPON and... -
Page 3: Disclaimer
Class B digital information. While thought to be accurate, the information in this device, pursuant to part 15 of the FCC Rules. document is provided strictly “as is” and RED will not be held These limits... - Page 4 EN 55022 (CISPR 22) – Electromagnetic Interference AUSTRALIA AND NEW ZEALAND STATEMENTS EN 55024-1 (CISPR 24) – Electromagnetic Immunity RED declares that the radio equipment described in this document EN 61000-3-2 (IEC610000-3-2) – Power Line Harmonics comply with the following international standards.
-
Page 5: Safety Instructions
RED FOCUS OPERATION GUIDE FRANCE Clean only using a dry cloth. When cleaning your camera, remember that it is not waterproof and moisture can damage Usage Restrictions - Geographic Area Where Restriction Applies : electronic circuitry. DO NOT rinse or immerse any element of the France camera, lens or other accessory, keep them dry at all times. -
Page 6: Battery Storage And Handling
40% to 60%. If batteries will be stored for long periods of time, RED recommends that you check the charge level at least once every six (6) months, and recharge batteries to a capacity level of 40% to 60%. -
Page 7: Shipping Disclaimer
REDVOLT, REDVOLT XL, and RED BRICK batteries are considered DO NOT discard the battery into fire or heat. Dangerous Goods. Other products such as REDVOLT AA and RED Li 7.2V batteries may also be classified as Dangerous Goods when DO NOT store, use, or recharge the battery near a heat source purchased in bulk. -
Page 8: Chapter 1: Red Focus Introduction
RED FOCUS OPERATION GUIDE CHAPTER 1: RED FOCUS INTRODUCTION ® The RED Focus is a self-powered, illuminated PL mount diascope used to set PL backfocus/flange distance on the ® ® ® ® ® RED ONE , EPIC, EPIC-W , SCARLET... -
Page 9: Additional Resources
RED FOCUS OPERATION GUIDE ADDITIONAL RESOURCES ® The following resources offer additional information about RED, the DSMC system, and the RED community: RED.com: Check the official RED website for the latest information about RED products. RED Learn Articles: RED offers... -
Page 10: Chapter 2: Red Focus Basic Operation
RED FOCUS OPERATION GUIDE CHAPTER 2: RED FOCUS BASIC OPERATION ® This section describes the physical control, indicator, and display of the RED Focus. RED FOCUS FEATURES Figure: RED Focus Features FEATURE DESCRIPTION LED Indicator When enabled, the LED illuminates green when turned on... -
Page 11: Turn On/Off Red Focus
POWER CONSUMPTION The RED Focus draws 42 mA of power when turned on for three (3) minutes. At this power consumption, two (2) 1.5 V AA batteries power the RED Focus for approximately 52 hours (depending on the battery quality and charge when installed). -
Page 12: Chapter 3: Use With Red One
NOTE: The center of the image will never be in perfect focus. 11. Tighten the camera focus ring screws. DO NOT exceed 22.22 in-lb, or damage may occur. NOTE: Some shifting may occur while tightening the focus ring. Recheck the back focus again and adjust as necessary. -
Page 13: Chapter 4: Use With Epic And Scarlet
3. Ensure that a DSMC PL mount is installed. 4. Remove the screw-in plug that covers the back focus adjustment screw using a T-10 TORX driver. NOTE: The screw-in plug is indicated by a Siemens star with an arrow pointing to its location. - Page 14 C. Install a camera lens or sensor cover. 14. Install the screw-in plug in the back focus adjustment opening using a T-10 TORX driver. C O PYR I G HT © 2 0 1 9 R ED.C O M , LLC...
-
Page 15: Chapter 5: Use With Weapon And Scarlet-W
3. Ensure that a DSMC PL mount is installed. 4. Remove the screw-in plug that covers the back focus adjustment screw using a T-10 TORX driver. NOTE: The screw-in plug is indicated by a Siemens star with an arrow pointing to its location. - Page 16 C. Install a camera lens or sensor cover. 14. Install the screw-in plug in the back focus adjustment opening using a T-10 TORX driver. C O PYR I G HT © 2 0 1 9 R ED.C O M , LLC...
-
Page 17: Chapter 6: Red Focus Maintenance
These substances may damage lens coatings and electronic circuitry. WARNING: DO NOT attempt to modify, dismantle, or open your RED Focus as doing so may expose you to electric shock and serious injury. There are no user-serviceable parts inside. Alteration or repairs made to the RED Focus, except by a RED authorized service facility, voids all warranties. -
Page 18: Chapter 7: Troubleshoot Your Red Focus
The RED Focus image is blurry after tightening focus ring bolts on the RED ONE POTENTIAL RESOLUTION Some shifting may occur while tightening the focus ring. Recheck the back focus again and adjust as necessary. C O PYR I G HT © 2 0 1 9 R ED.C O M , LLC 9 5 5 - 0 0 5 0 , R EV - L |... -
Page 19: Appendix A: Technical Specifications
RED FOCUS OPERATION GUIDE APPENDIX A: TECHNICAL SPECIFICATIONS SPECIFICATIONS DESCRIPTION Weight 1.59 lb Dimensions Length: 6.5" (165.1 mm) Diameter: 2.75" (69.85 mm) Operating Temperature 10°C to 40°C (50°F to 104°F) Storage Temperature –5°C to 60°C (–20°F to 140°F) Operating Humidity Range...
