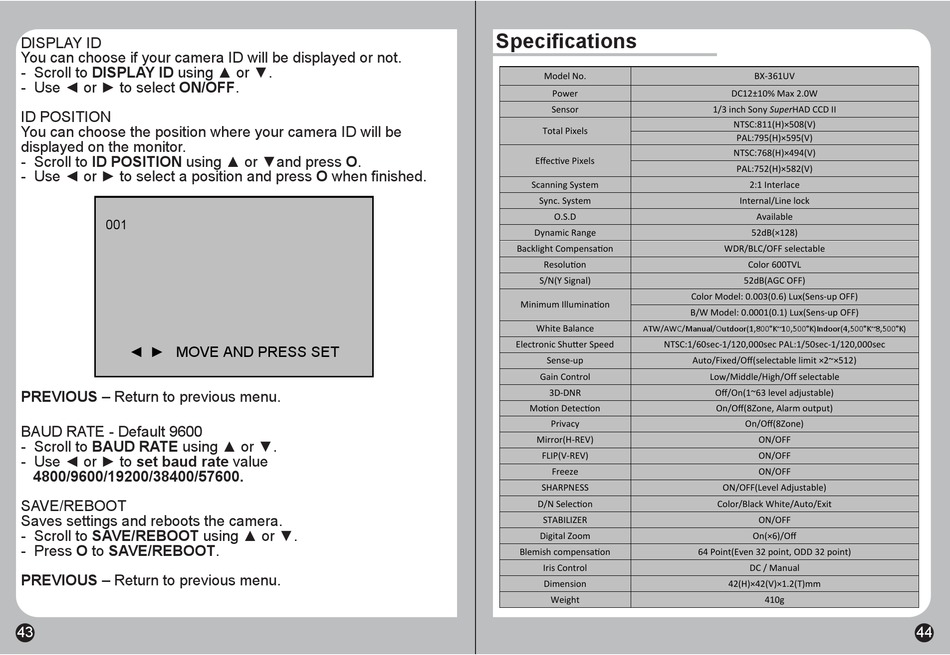

Specifications - Provision ISR UltraVision Series Manual

DISPLAY ID
You can choose if your camera ID will be displayed or not.
- Scroll to DISPLAY ID using ▲ or ▼.
- Use ◄ or ► to select ON/OFF.
ID POSITION
You can choose the position where your camera ID will be
displayed on the monitor.
- Scroll to ID POSITION using ▲ or ▼and press O.
- Use ◄ or ► to select a position and press O when finished.
001
◄ ► MOVE AND PRESS SET
PREVIOUS – Return to previous menu.
BAUD RATE - Default 9600
- Scroll to BAUD RATE using ▲ or ▼.
- Use ◄ or ► to set baud rate value
4800/9600/19200/38400/57600.
SAVE/REBOOT
Saves settings and reboots the camera.
- Scroll to SAVE/REBOOT using ▲ or ▼.
- Press O to SAVE/REBOOT.
PREVIOUS – Return to previous menu.
43

Specifications

Model No.
Power
Sensor
Total Pixels
Effective Pixels
Scanning System
Sync. System
O.S.D
Dynamic Range
Backlight Compensation
Resolution
S/N(Y Signal)
Minimum Illumination
White Balance
ATW/AWC/Manual/Outdoor(1,800°K~10,500°K)Indoor(4,500°K~8,500°K)
Electronic Shutter Speed NTSC:1/60sec-1/120,000sec PAL:1/50sec-1/120,000sec
Sense-up
Gain Control
3D-DNR
Motion Detection
Privacy
Mirror(H-REV)
FLIP(V-REV)
Freeze
SHARPNESS
D/N Selection
STABILIZER
Digital Zoom
Blemish compensation
Iris Control
Dimension
Weight
BX-361UV
DC12±10% Max 2.0W
1/3 inch Sony SuperHAD CCD II
NTSC:811(H)×508(V)
PAL:795(H)×595(V)
NTSC:768(H)×494(V)
PAL:752(H)×582(V)
2:1 Interlace
Internal/Line lock
Available
52dB(×128)
WDR/BLC/OFF selectable
Color 600TVL
52dB(AGC OFF)
Color Model: 0.003(0.6) Lux(Sens-up OFF)
B/W Model: 0.0001(0.1) Lux(Sens-up OFF)
Auto/Fixed/Off(selectable limit ×2~×512)
Low/Middle/High/Off selectable
Off/On(1~63 level adjustable)
On/Off(8Zone, Alarm output)
On/Off(8Zone)
ON/OFF
ON/OFF
ON/OFF
ON/OFF(Level Adjustable)
Color/Black White/Auto/Exit
ON/OFF
On(×6)/Off
64 Point(Even 32 point, ODD 32 point)
DC / Manual
42(H)×42(V)×1.2(T)mm
410g
