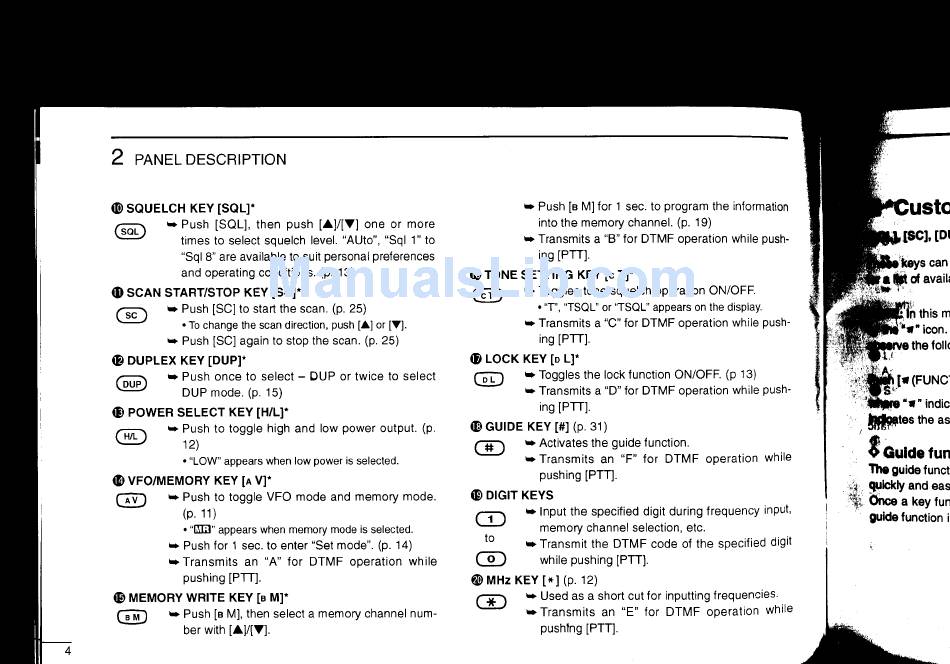

PANEL DESCRIPTION
(D
SQUELCH KEY [SQL]'
Push [SQL], then push [A]/[V] one or more
times to select squelch level. "AUto", "Sql 1" to
"Sql 8" are available to suit personal preferences
and operating conditions . (p . 13)
SQL
(D
SCAN START/STOP KEY [SC]'
Push [SC] to start the scan . (p . 25)
-To
change the scan direction, push ["] or ["] .
~+ Push [SC] again to stop the scan . (p . 25)
sc
© DUPLEX KEY [DUP]'
kl+
Push once to select - DUP or twice to select
DUP
DUP
mode . (p . 15)
© POWER SELECT KEY [H/L]'
~+ Push to toggle high and low power output . (p .
12)
" "LOW" appears when low power is selected .
m
VFO/MEMORY KEY
[A V]'
Av
Push to toggle
VFO
mode and memory mode .
(p . 11)
" "m"
appears when memory mode is selected.
Push for 1 sec. to enter "Set mode". (p . 14)
+Transmits an "A" for
DTMF
operation while
pushing [PTT].
© MEMORY WRITE KEY
[B M]'
e
nn
k+
Push
[B M],
then select a memory channel num-
ber with [A]/[V].
~1 "
Push
[B
M]
for 1 sec. to program the information
into the memory channel . (p . 19)
r+
Transmits a "B" for
DTMF
operation while push-
ing [PTT].
(D TONE SETTING KEY
[c T]"
cr
'+ Toggles tone squelch operation
ON/OFF.
" "T",
"TSQL" or "TSQL" appears on the display.
r .
Transmits a "C" for
DTMF
operation while push-
ing [PTT].
m
LOCK KEY
[D L]'
Toggles the lock function
ON/OFF . (p 13)
Transmits a "D" for
DTMF
operation while push-
ing [PTT].
m
GUIDE KEY [#] (p .
31)
w+
Activates the guide function .
,-*Transmits an "F" for
DTMF
operation
pushing [PTT].
while
m
DIGIT KEYS
Input the specified digit
memory channel selection, etc.
, . *Transmit the
DTMF
code of the specified digit
while pushing [PTT] .
during frequency input,
m
MHz KEY [*] (p . 12)
~+ Used as a short cut for inputting frequencies .
+Transmits an "E" for
DTMF
operation while
pushing [PTT].
keys
can
I: of
avail,
n
this m
icon .
e
the follc
"a" indic+
V"tes the as
Guide fun
The
guide functi
quirky and eas
Once
a key fun
guide
function i ;
