%Nl (Automatic
iaustion .
icement is nec-
s the opefating
of the readout in-
selected ch an-
~+ In set mode or initial set mode, indicates the selected
item, condition, etc.
0

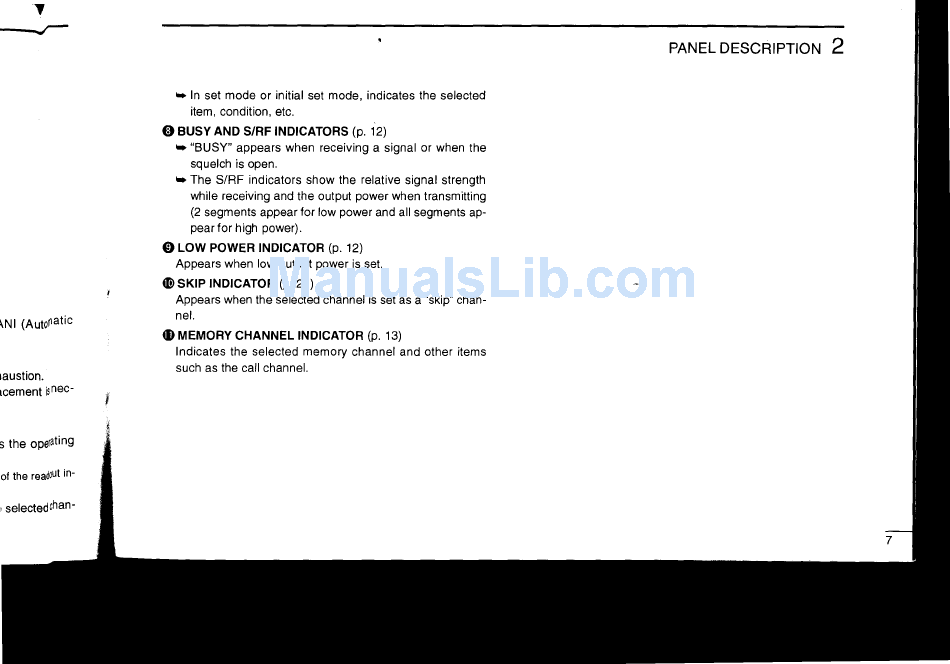

BUSY AND S/RF INDICATORS (p . 12)
ww "BUSY" appears when receiving a signal or when the
squelch is open .
ww The S/RF indicators show the relative signal strength
while receiving and the output power when transmitting
(2 segments appear for low power and all segments ap-
pear for high power) .
O
LOW POWER INDICATOR (p . 12)
Appears when low output power is set.
m
SKIP INDICATOR (p . 25)
Appears when the selected channel is set as a "skip" chan-
nel.
m
MEMORY CHANNEL INDICATOR (p . 13)
Indicates the selected memory channel and other items
such as the call channel.
PANEL DESCRIPTION
