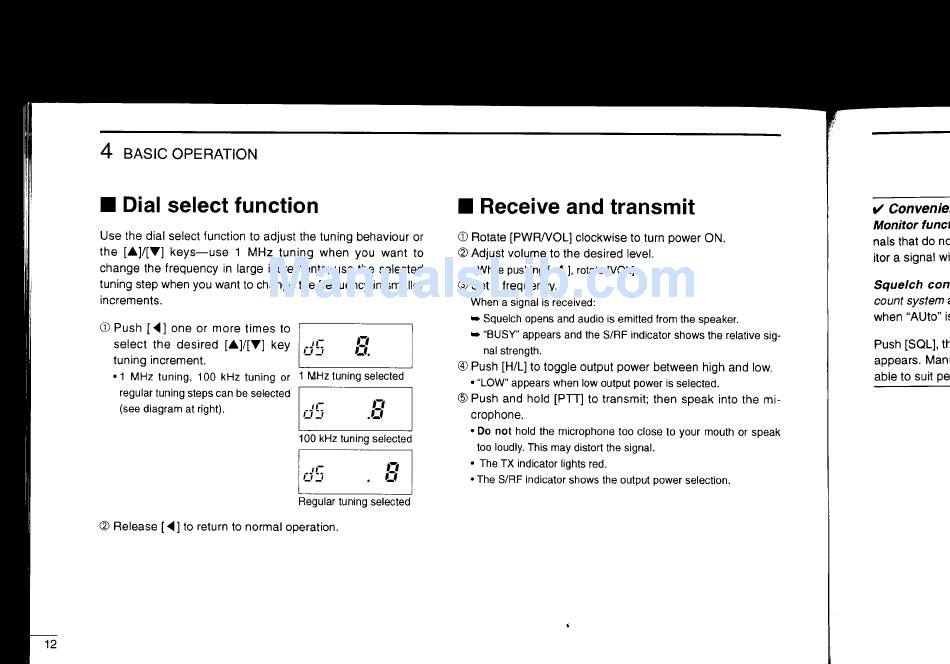

BASIC OPERATION
" Dial select function
Use the dial select function to adjust the tuning behaviour or
the [ " ]/[V] keys-use 1 MHz tuning when you want to
change the frequency in large increments ; use the selected
tuning step when you want to change the frequency in smaller
increments .
O Push [4] one or more times to
select the desired [A]/[ " ] key
tuning increment .
" 1 MHz tuning, 100 kHz tuning or
regular tuning steps can be selected
(see diagram at right) .
OO
Release [
4 ]
to return to normal operation .
1 MHz tuning selected
100 kHz tuning selected
Regular tuning selected
" Receive and transmit
O Rotate [PWRNOL] clockwise to turn power ON .
O Adjust volume to the desired level .
" While pushing [
4 ],
rotate [VOL] .
O Set a frequency .
When a signal is received :
~+ Squelch opens and audio is emitted from the speaker .
~ . "BUSY" appears and the S/RF indicator shows the relative sig-
nal strength .
® Push [H/L] to toggle output power between high and low .
" "LOW" appears when low output power is selected .
OO
Push and hold [PTT] to transmit ; then speak into the mi-
crophone .
" Do not hold the microphone too close to your mouth or speak
too loudly . This may distort the signal .
" The TX indicator lights red.
" The S/RF indicator shows the output power selection .
r
Conveniei
Monitor funct
nals that do no
itor a signal wi~
Squelch cone
count system e
when "AUto"
iE
Push [SQL], th
appears . Mani
able to suit pe
