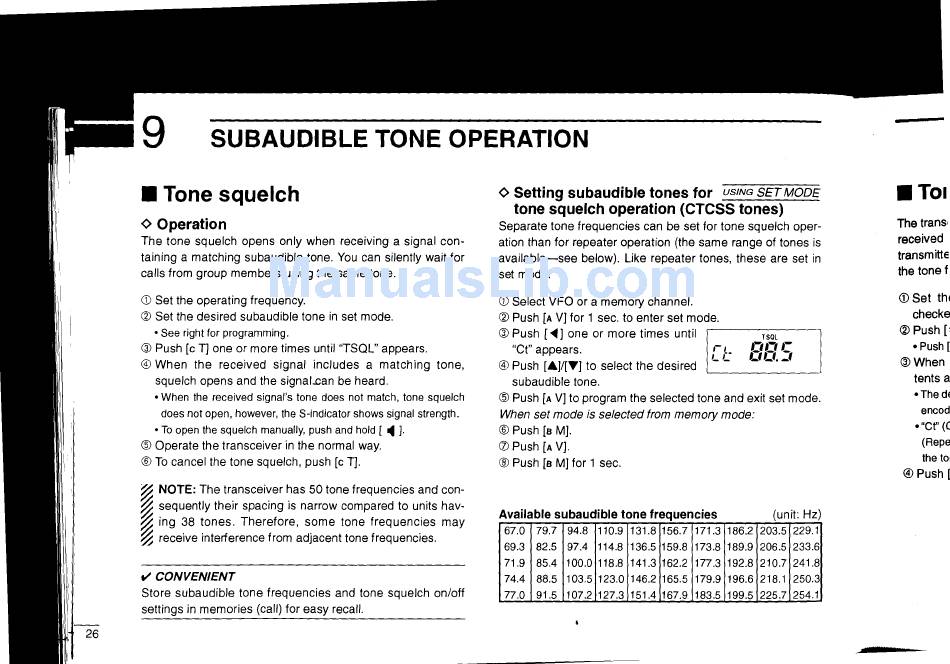

SUBAUDIBLE TONE OPERATION
" Tone squelch
O Operation
The tone squelch opens only when receiving a signal con-
taining a matching subaudible tone . You can silently wait for
calls from group members using the same tone .
O Set the operating frequency .
O Set the desired subaudible tone in set mode .
" See right for programming .
O Push [c T] one or more times until "TSQL" appears.
® When the received signal includes a matching tone,
squelch opens and the signal can be heard.
" When the received signal's tone does not match, tone squelch
does not open, however, the S-indicator shows signal strength .
" To open the squelch manually, push and hold [
4 ].
05 Operate the transceiver in the normal way.
© To cancel the tone squelch, push [c T] .
NOTE : The transceiver has 50 tone frequencies and con-
sequently their spacing is narrow compared to units hav-
ing 38 tones . Therefore, some tone frequencies may
receive interference from adjacent tone frequencies .
V CONVENIENT
Store subaudible tone frequencies and tone squelch on/off
settings in memories (call) for easy recall .
O Setting subaudible tones for
USING
SET MODE
tone squelch operation (CTCSS tones)
Separate tone frequencies can be set for tone squelch oper-
ation than for repeater operation (the same range of tones is
available-see below) . Like repeater tones, these are set in
set mode .
O Select VFO or a memory channel .
© Push
[A
V] for 1 sec . to enter set mode .
Os Push [4] one or more times until
"Ct" appears.
® Push ["]/["] to select the desired
subaudible tone .
05 Push
[A
V] to program the selected tone and exit set mode .
When set mode is selected from memory mode :
© Push [s M] .
07 Push
[A V] .
e0 Push
[B
M] for 1 sec.
Available subaudible tone frequencies (unit: Hz)
TSOL
f1~1~
1111, _I
0 Toi
The trans ,
received
transm itte
the tone f
O Set the
checke
Push [
" Push [
Os When i
tents a
-The de
encod
" "CP' (C
(Repe
the toi
® Push [
67 .0 79 .7 94 .8 110.9 131 .8 156.7 171 .3 186.2 203.5 229.1
69 .3 82 .5 97 .4 114.8 136.5 159.8 173.8 189.9 206.5 233 .6
71 .9 85 .4 100.0 118.8 141 .3 162.2 177.3 192.8 210.7 241 .8
74 .4 88 .5 103.5 123.0 146.2 165.5 179.9 196.6 218.1 250.3
77 .0 91 .5 107.2 127.3 151 .4 167.9 183.5 199.5 225.7 254.1
