iter set mode.
e tuning step item .
=d tuning step .
ie to enter the tun-
at a tuning step of
25
it matches the fre-
ng one of the pro-
nction is assigned
this case, pushing
any changes made
" General
When using a repeater, the transmit frequency is shifted from
the receive frequency by the offset frequency. It is convenient
to program repeater information into memory channels (p .
19) .
* Set the receive frequency (repeater output frequency) .
* Push [DUP] one or more times to select -DUP or DUP .
" °-DUP" indicates the transmit frequency is shifted down ; "DUP"
indicates the transmit frequency is shifted up .
-When the auto repeater function
is
in use (USAversion only) this
selection and step
Os
are not necessary (p .
17).
Os Push
[c
T] to activate the subaudible tone encoder, ac-
cording to repeater requirements .
" °T"
appears .
" Refer to the table of subaudible tone frequencies on the following
page .
® Push and hold [PTT] to transmit .
-The displayed frequency automatically changes to the transmit
frequency (repeater input frequency) .
" If "oFF appears, check the offset frequency (p . 16) .
OO
Release [PTT] to receive .
© Push and hold [
4 ]
to check whether the other station's
transmit signal can be directly received or not .

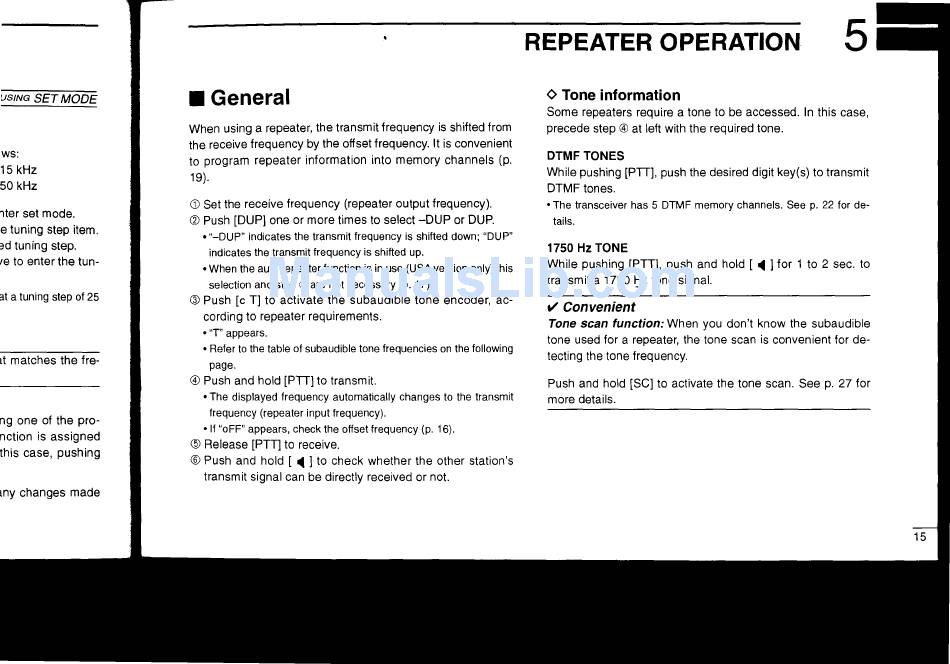

REPEATER OPERATION
O Tone information
Some repeaters require a tone to be accessed . In this case,
precede step T at left with the required tone .
DTMF TONES
While pushing [PTT], push the desired digit key(s) to transmit
DTMF tones .
-The transceiver has
5
DTMF memory channels . See
p. 22
for de-
tails .
1750 Hz TONE
While pushing [PTT], push and hold [
] for 1 to 2 sec . t o
transmit a 1750 Hz tone signal .
r
Convenient
Tone scan function: When you don't know the subaudible
tone used for a repeater, the tone scan is convenient for de-
tecting the tone frequency .
Push and hold [SC] to activate the tone scan . See p. 27 for
more details .
