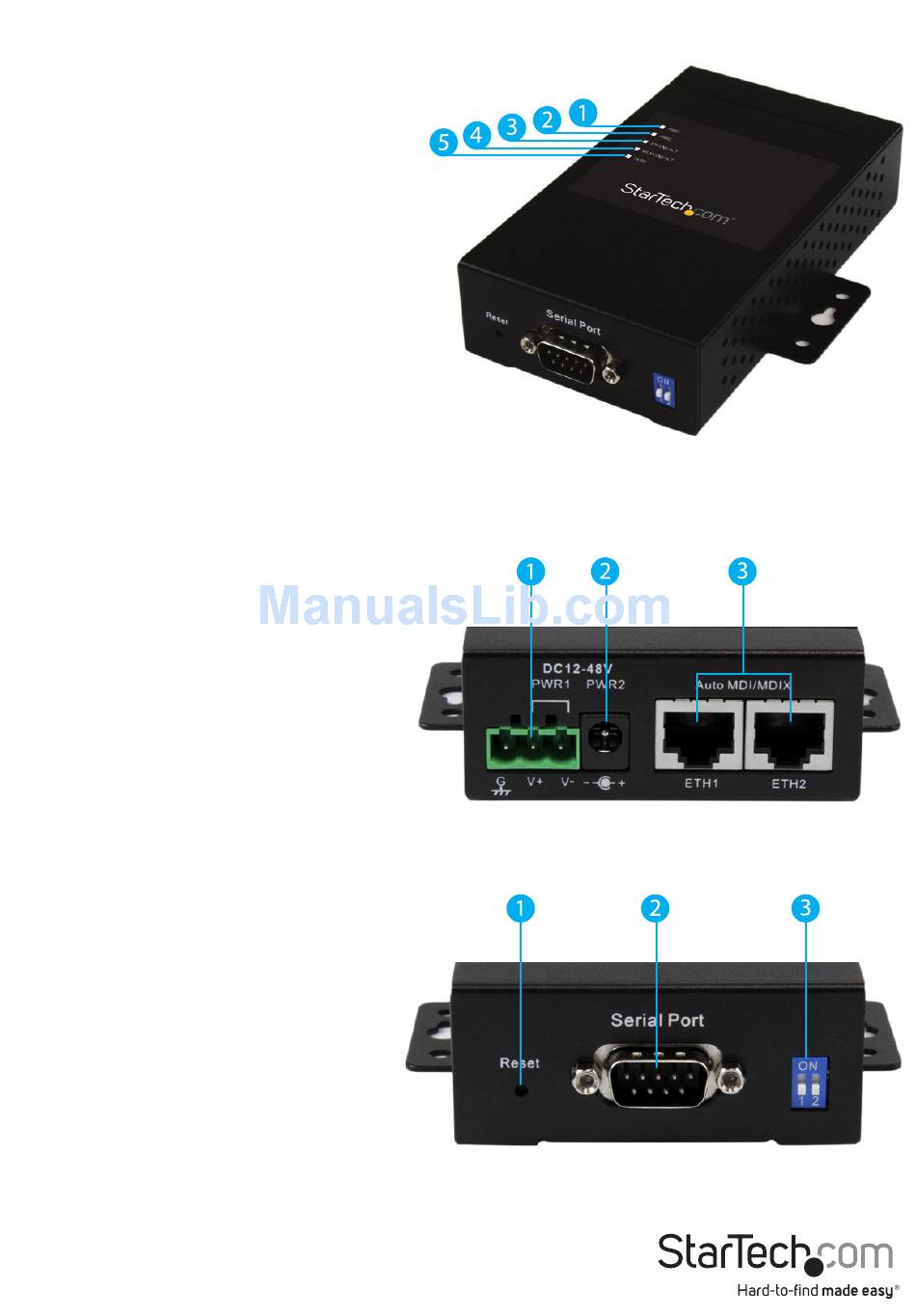

Product Diagram

Front View

1. LED for PWR1
2. LED for PWR2
3. LED for Ethernet Port 1
4. LED for Ethernet Port 2
5. LED for Serial Port

Side 1

1. Terminal Block PWR1 (12~48V DC)
2. Power Jack PWR2 (12~48V DC)
3. 2x Ports RJ45 10/100

Side 2

1. Reset Button
2. DB-9 Serial Port
3. DIP Switch
