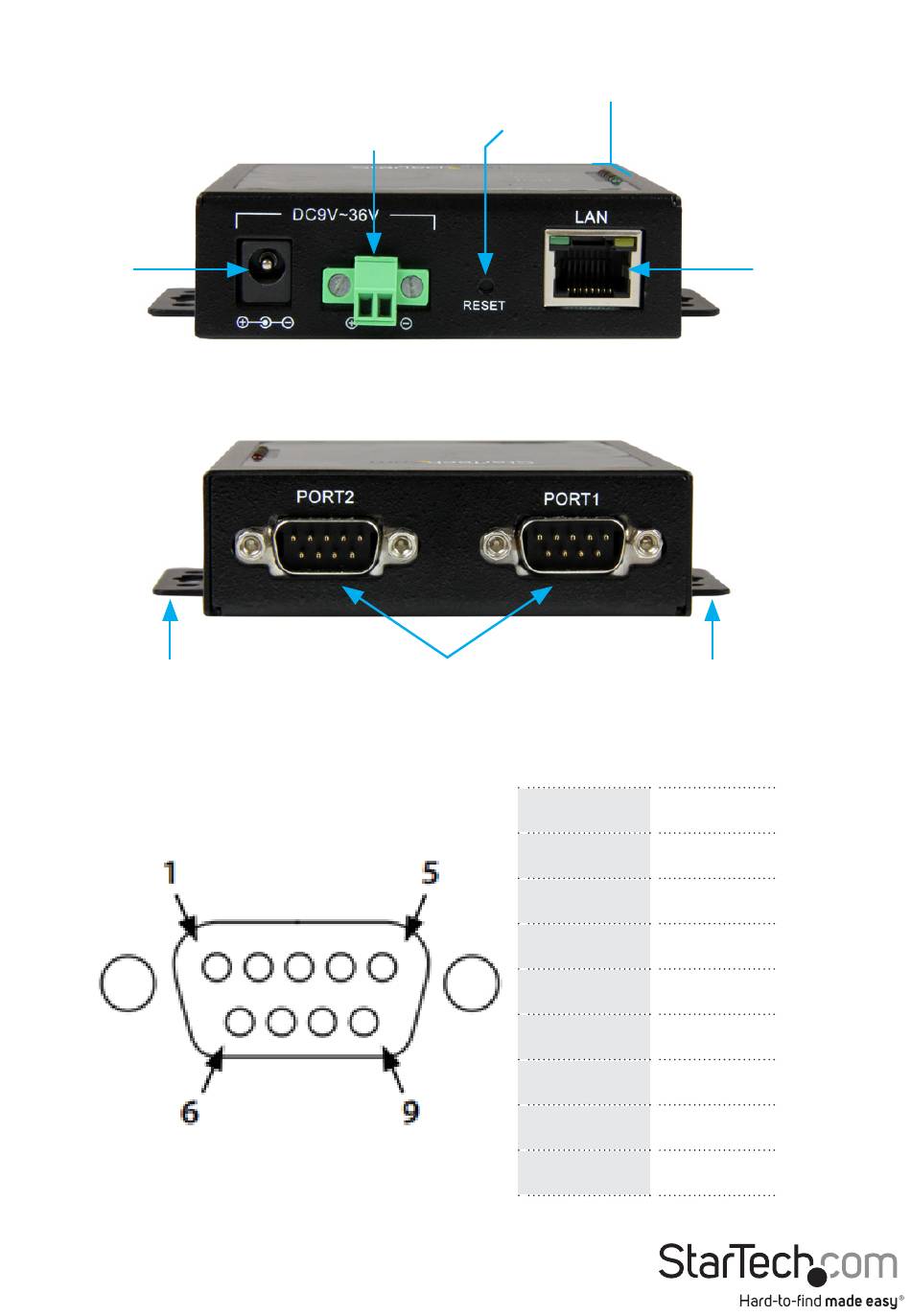

Product diagram
Front view
DC power
input
Rear view
Surface mount
DB9 RS232 connector pinout
Instruction manual
2-wire terminal
block (9~36V
DC input)
DB9 RS232
serial ports
2
LEDs
Reset
button
Surface mount
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
10/100Mbps
RJ45 port
NC
RXD
TXD
DTR
GND
DSR
RTS
CTS
NC
