EGi DOMOS2 User Manual page 71

auxiliary modules
40510
EGi ref. 40510
15
2
1
14
4
13
12
5

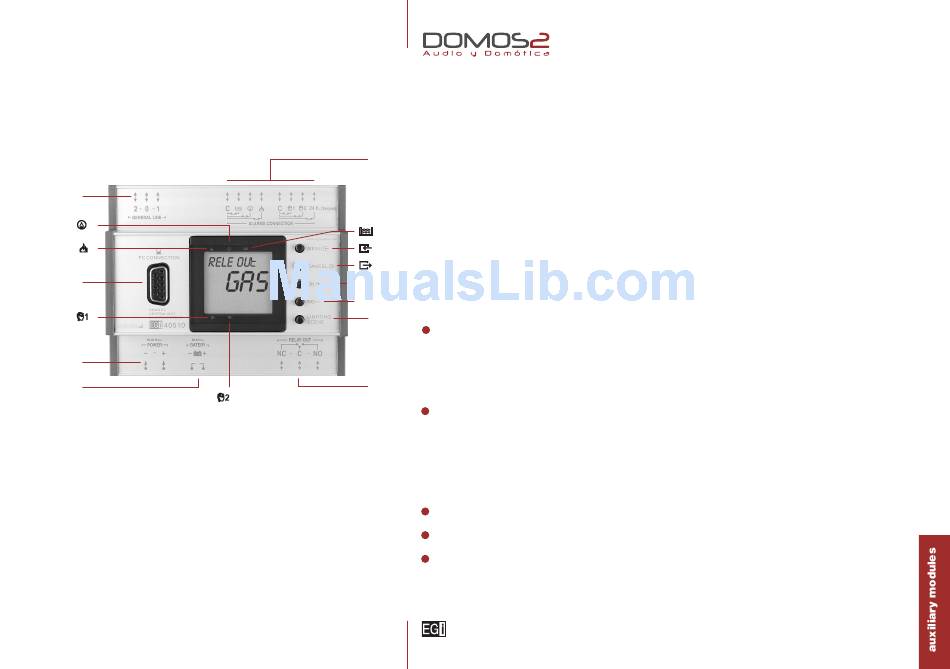

1 Fire alarm indicator.
2 Gas alarm indicator.
3 Flooding alarm indicator.
4 Intruder alarm indicator no. 1.
5 Intruder alarm indicator no. 2.
6
MENU key.
7 MENU exit key.
8 OK/+ Key.
40510
16
3
6
7
8
OK/+
9
NO/–
10
11
9 NO/- Key.
10 Scene selection.
11 Output relay.
12 Battery connector.
13 Power supply connector.
14
DB9 connetion for PC.
15 Connection to the installation BUS.
16 External sensors connection.
71
DOMOTIC CENTRAL UNIT + PC CONNECTION
overview
Your domotic central unit can manage different sensors for detecting fire, gas, flooding or intruders.
It also allows the configuration of different domotic scenes, home access control, and communication with
other modules of the installation, such as 40520 GSM interface module – which will allow you to interact
remotely with the installation through fixed telephone or mobile.
This central unit manages 6 inputs (additional inputs through 40610 and 40630 modules) and 1 output
(additional inputs through 40540 and 40640 modules). It has a LCD display and keyboard to configure and
program all domotic functions. This can be done using the keyboard or connecting a computer.
It can also be connected to a battery, so the system continues activated in case of electrical power supply failure.
Intruder alarms.
• Up to 2 areas for intruder detection.
• Arm/disarm through card reader and fixed telephone or mobile (with 40520 GSM interface module).
• Partial or total arm (1 area or 2 areas).
Emergency alarms.
• External sensors to detect flooding, fire and gas escape.
• Output for alarm siren or valve connection.
• Power failure detection and stand-by mode featuring low power consumption.
• Additional alarms can be added.
Presence simulator.
Entry and exit registration.
Scene configuration (activation/deactivation and relay programming).
