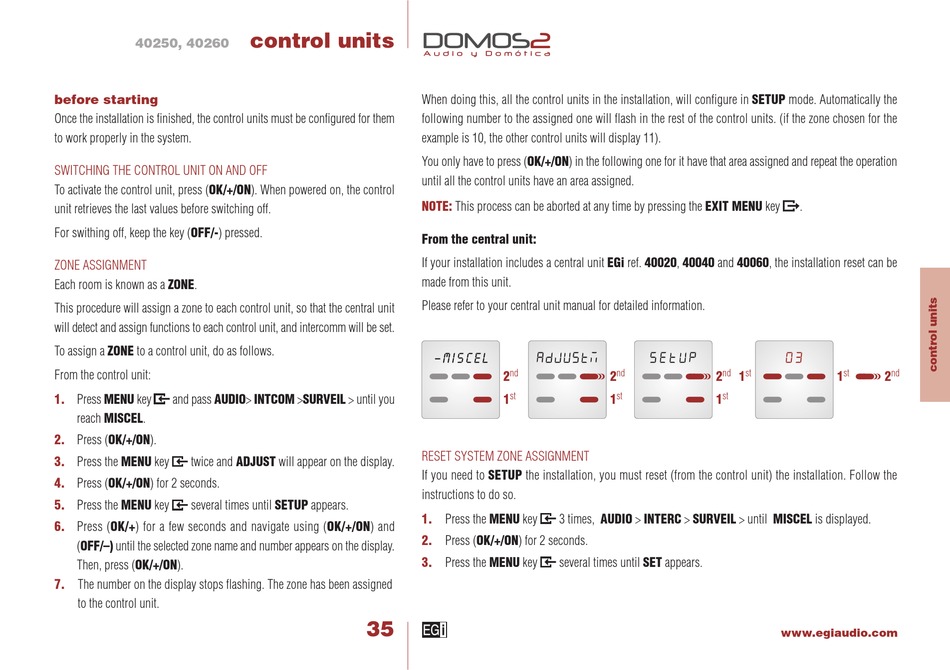

EGi DOMOS2 User Manual page 35

40250, 40260
before starting
Once the installation is finished, the control units must be configured for them
to work properly in the system.
SWITCHING THE CONTROL UNIT ON AND OFF
To activate the control unit, press (OK/+/ON). When powered on, the control
unit retrieves the last values before switching off.
For swithing off, keep the key (OFF/-) pressed.
ZONE ASSIGNMENT
Each room is known as a ZONE.
This procedure will assign a zone to each control unit, so that the central unit
will detect and assign functions to each control unit, and intercomm will be set.
To assign a ZONE to a control unit, do as follows.
From the control unit:
1. Press MENU key and pass AUDIO> INTCOM >SURVEIL > until you
reach MISCEL.
2. Press (OK/+/ON).
3. Press the MENU key twice and ADJUST will appear on the display.
4. Press (OK/+/ON) for 2 seconds.
5. Press the MENU key several times until SETUP appears.
6. Press (OK/+) for a few seconds and navigate using (OK/+/ON) and
(OFF/–) until the selected zone name and number appears on the display.
Then, press (OK/+/ON).
7. The number on the display stops flashing. The zone has been assigned
to the control unit.
control units
When doing this, all the control units in the installation, will configure in SETUP mode. Automatically the
following number to the assigned one will flash in the rest of the control units. (if the zone chosen for the
example is 10, the other control units will display 11).
You only have to press (OK/+/ON) in the following one for it have that area assigned and repeat the operation
until all the control units have an area assigned.
NOTE:
From the central unit:
If your installation includes a central unit EGi ref. 40020, 40040 and 40060, the installation reset can be
made from this unit.
Please refer to your central unit manual for detailed information.
RESET SYSTEM ZONE ASSIGNMENT
If you need to SETUP the installation, you must reset (from the control unit) the installation. Follow the
instructions to do so.
1.
2.
3.
35
This process can be aborted at any time by pressing the EXIT MENU key
– m i s c e l adjustm
nd
2 2
st
1 1
Press the MENU key 3 times, AUDIO > INTERC > SURVEIL > until MISCEL is displayed.
Press (OK/+/ON) for 2 seconds.
Press the MENU key several times until SET appears.
S E T U P 0 3
nd nd st
2 1
st st
1
www.egiaudio.com
.
st nd
1 2
