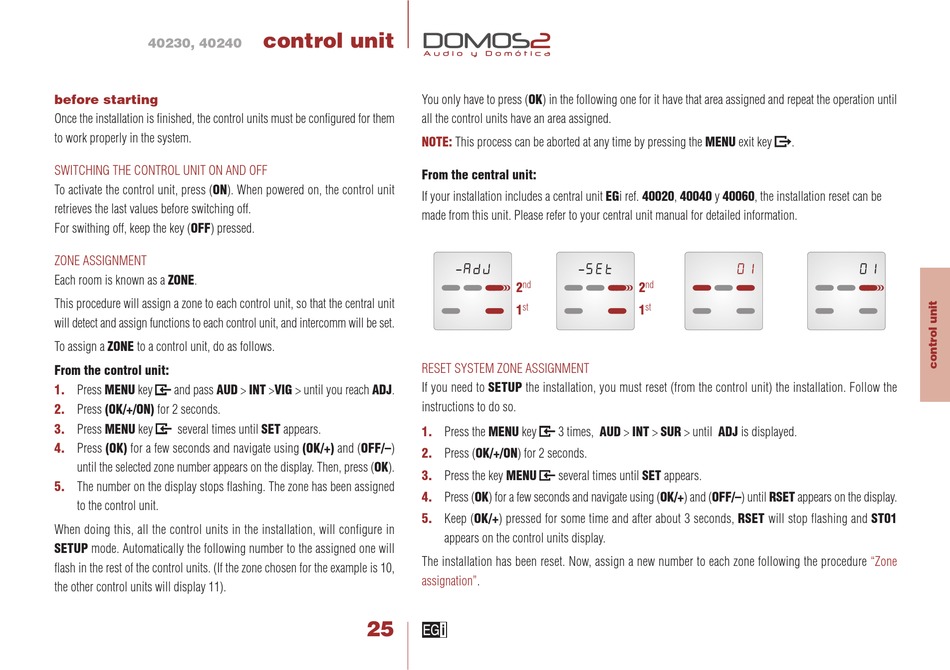

EGi DOMOS2 User Manual page 25

40230, 40240
before starting
Once the installation is finished, the control units must be configured for them
to work properly in the system.
SWITCHING THE CONTROL UNIT ON AND OFF
To activate the control unit, press (ON). When powered on, the control unit
retrieves the last values before switching off.
For swithing off, keep the key (OFF) pressed.
ZONE ASSIGNMENT
Each room is known as a ZONE.
This procedure will assign a zone to each control unit, so that the central unit
will detect and assign functions to each control unit, and intercomm will be set.
To assign a ZONE to a control unit, do as follows.
From the control unit:
1. Press MENU key and pass AUD > INT >VIG > until you reach ADJ.
2. Press (OK/+/ON) for 2 seconds.
3. Press MENU key several times until SET appears.
4. Press (OK) for a few seconds and navigate using (OK/+) and (OFF/–)
until the selected zone number appears on the display. Then, press (OK).
5. The number on the display stops flashing. The zone has been assigned
to the control unit.
When doing this, all the control units in the installation, will configure in
SETUP mode. Automatically the following number to the assigned one will
flash in the rest of the control units. (If the zone chosen for the example is 10,
the other control units will display 11).
control unit
You only have to press (OK) in the following one for it have that area assigned and repeat the operation until
all the control units have an area assigned.
NOTE:
From the central unit:
If your installation includes a central unit EGi ref. 40020, 40040 y 40060, the installation reset can be
made from this unit. Please refer to your central unit manual for detailed information.
RESET SYSTEM ZONE ASSIGNMENT
If you need to SETUP the installation, you must reset (from the control unit) the installation. Follow the
instructions to do so.
1.
2.
3.
4.
5.
The installation has been reset. Now, assign a new number to each zone following the procedure
assignation".
25
This process can be aborted at any time by pressing the MENU exit key
– A d j – S E T
nd
2
st
1
Press the MENU key 3 times, AUD > INT > SUR > until ADJ is displayed.
Press (OK/+/ON) for 2 seconds.
Press the key MENU several times until SET appears.
Press (OK) for a few seconds and navigate using (OK/+) and (OFF/–) until RSET appears on the display.
Keep (OK/+) pressed for some time and after about 3 seconds, RSET will stop flashing and ST01
appears on the control units display.
.
0 1
nd
2
st
1
0 1
"Zone
