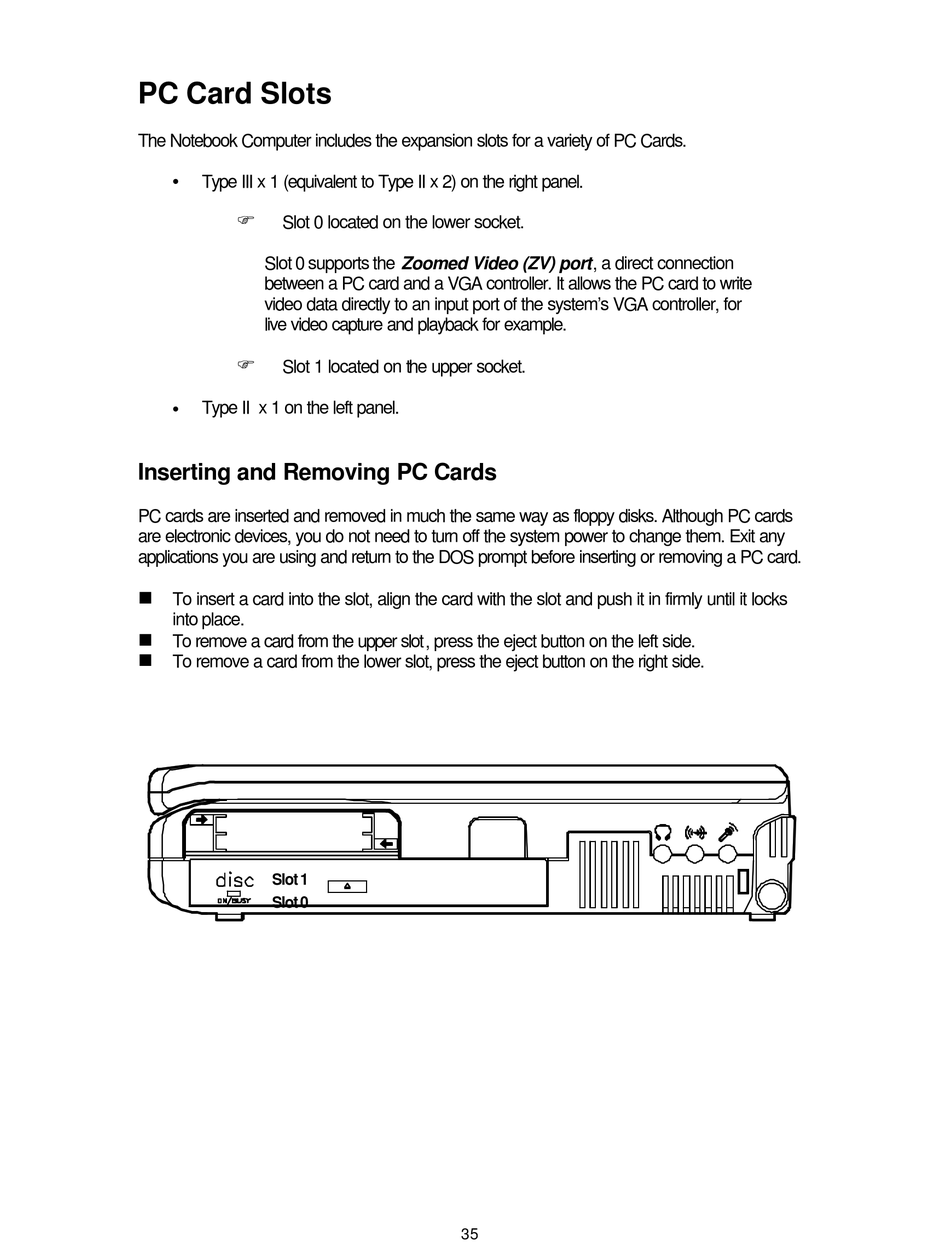

PC Card Slots
The Notebook Computer includes the expansion slots for a variety of PC Cards.
•
Type III x 1 (equivalent to Type II x 2) on the right panel.
F
Slot 0 located on the lower socket.
Slot 0 supports the Zoomed Video (ZV) port, a direct connection
between a PC card and a VGA controller. It allows the PC card to write
video data directly to an input port of the system's VGA controller, for
live video capture and playback for example.
F
Slot 1 located on the upper socket.
•
Type II x 1 on the left panel.
Inserting and Removing PC Cards
PC cards are inserted and removed in much the same way as floppy disks. Although PC cards
are electronic devices, you do not need to turn off the system power to change them. Exit any
applications you are using and return to the DOS prompt before inserting or removing a PC card.
n
To insert a card into the slot, align the card with the slot and push it in firmly until it locks
into place.
n
To remove a card from the upper slot, press the eject button on the left side.
n
To remove a card from the lower slot, press the eject button on the right side.
Slot 1
Slot 0
