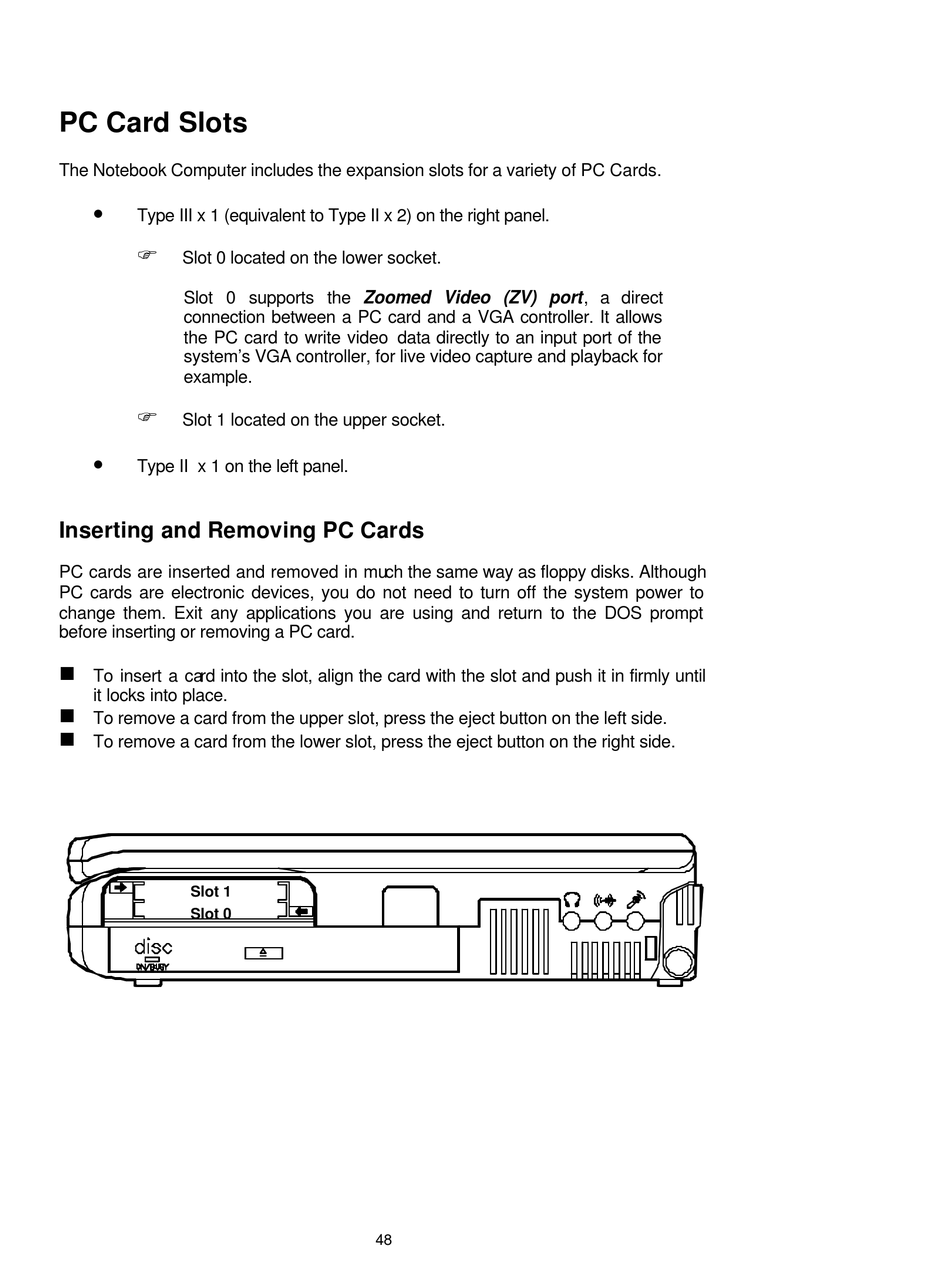

PC Card Slots
The Notebook Computer includes the expansion slots for a variety of PC Cards.
Type III x 1 (equivalent to Type II x 2) on the right panel.
F
Slot 0 located on the lower socket.
Slot 0 supports the Zoomed Video (ZV) port, a direct
connection between a PC card and a VGA controller. It allows
the PC card to write video data directly to an input port of the
system's VGA controller, for live video capture and playback for
example.
F
Slot 1 located on the upper socket.
Type II x 1 on the left panel.
Inserting and Removing PC Cards
PC cards are inserted and removed in much the same way as floppy disks. Although
PC cards are electronic devices, you do not need to turn off the system power to
change them. Exit any applications you are using and return to the DOS prompt
before inserting or removing a PC card.
n
To insert a card into the slot, align the card with the slot and push it in firmly until
it locks into place.
n
To remove a card from the upper slot, press the eject button on the left side.
n
To remove a card from the lower slot, press the eject button on the right side.
Slot 1
Slot 0
