Introduction

Connection between departments and PLUs

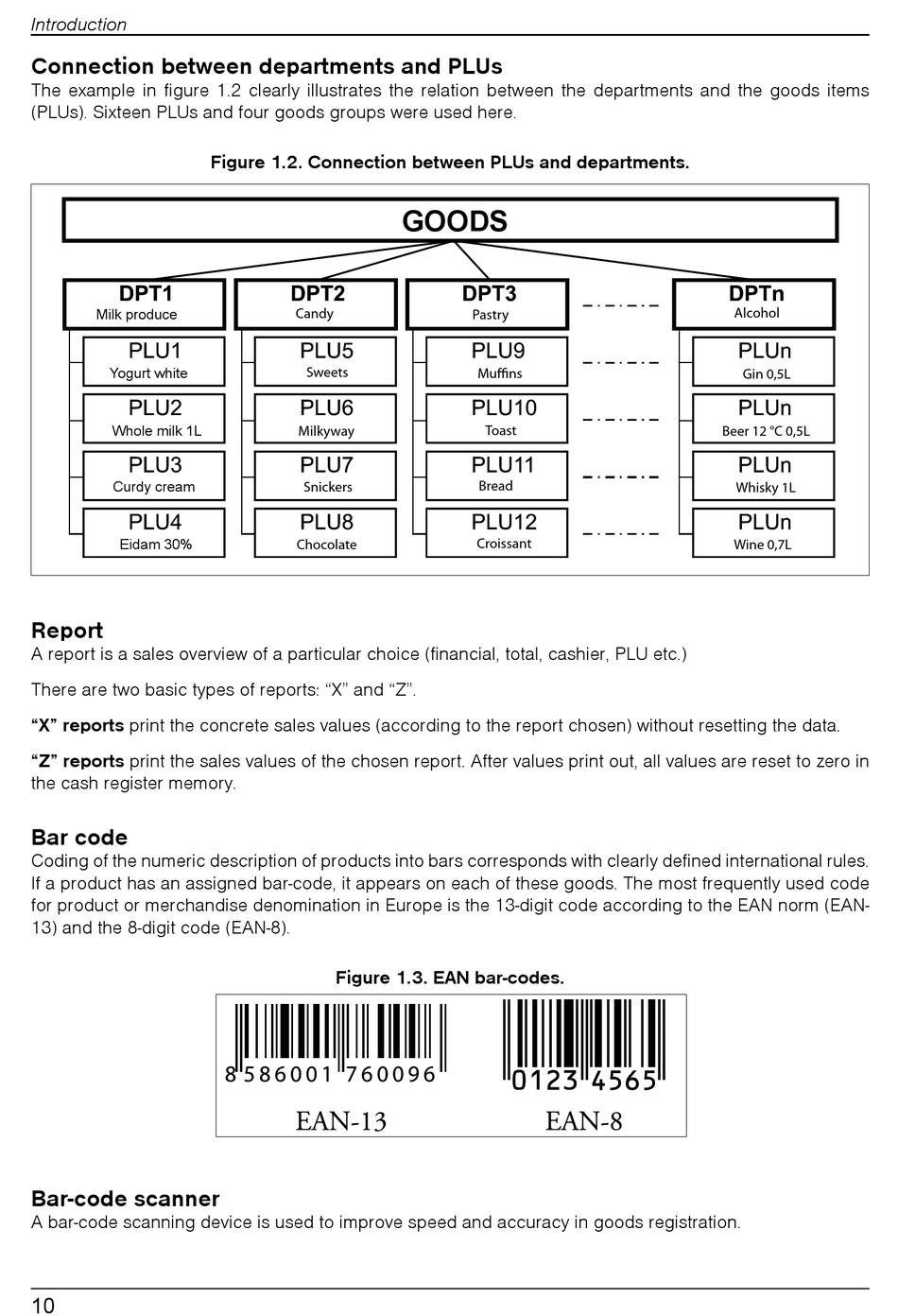

The example in figure 1.2 clearly illustrates the relation between the departments and the goods items
(PLUs). Sixteen PLUs and four goods groups were used here.
Milk produce
Yogurt white
Whole milk 1L
Curdy cream
Eidam 30%

Report

A report is a sales overview of a particular choice (financial, total, cashier, PLU etc.)
There are two basic types of reports: "X" and "Z".
"X" reports print the concrete sales values (according to the report chosen) without resetting the data.
"Z" reports print the sales values of the chosen report. After values print out, all values are reset to zero in
the cash register memory.

Bar code

Coding of the numeric description of products into bars corresponds with clearly defined international rules.
If a product has an assigned bar-code, it appears on each of these goods. The most frequently used code
for product or merchandise denomination in Europe is the 13-digit code according to the EAN norm (EAN-
13) and the 8-digit code (EAN-8).

Bar-code scanner

A bar-code scanning device is used to improve speed and accuracy in goods registration.
10
Figure 1.2. Connection between PLUs and departments.
�����
������
��������
��������
���������
Figure 1.3. EAN bar-codes.
GOODS
������
�����
�����
�����
���������
�������
��������
���������������
���������
���������
