WisyCom MTP41 User Manual page 8

Using <+/-> selector all menus can be accessed in sequence, push <click> to enter edit mode:
<+/-> to setup field
<click> again to confirm changes and exit.
CLICK
exit without confirmation if no button is pressed after a few seconds time out.
+ -
<START UP> menu
These menus are displayed during power up for few seconds.
<STATUS> menu
This is the first menu displayed after power up.
<PRESET> menu
This menu can be entered by scrolling selector, or pushing at the same time both quick
channel setup buttons (<ch> & <gain>).
MTP41 User Manual

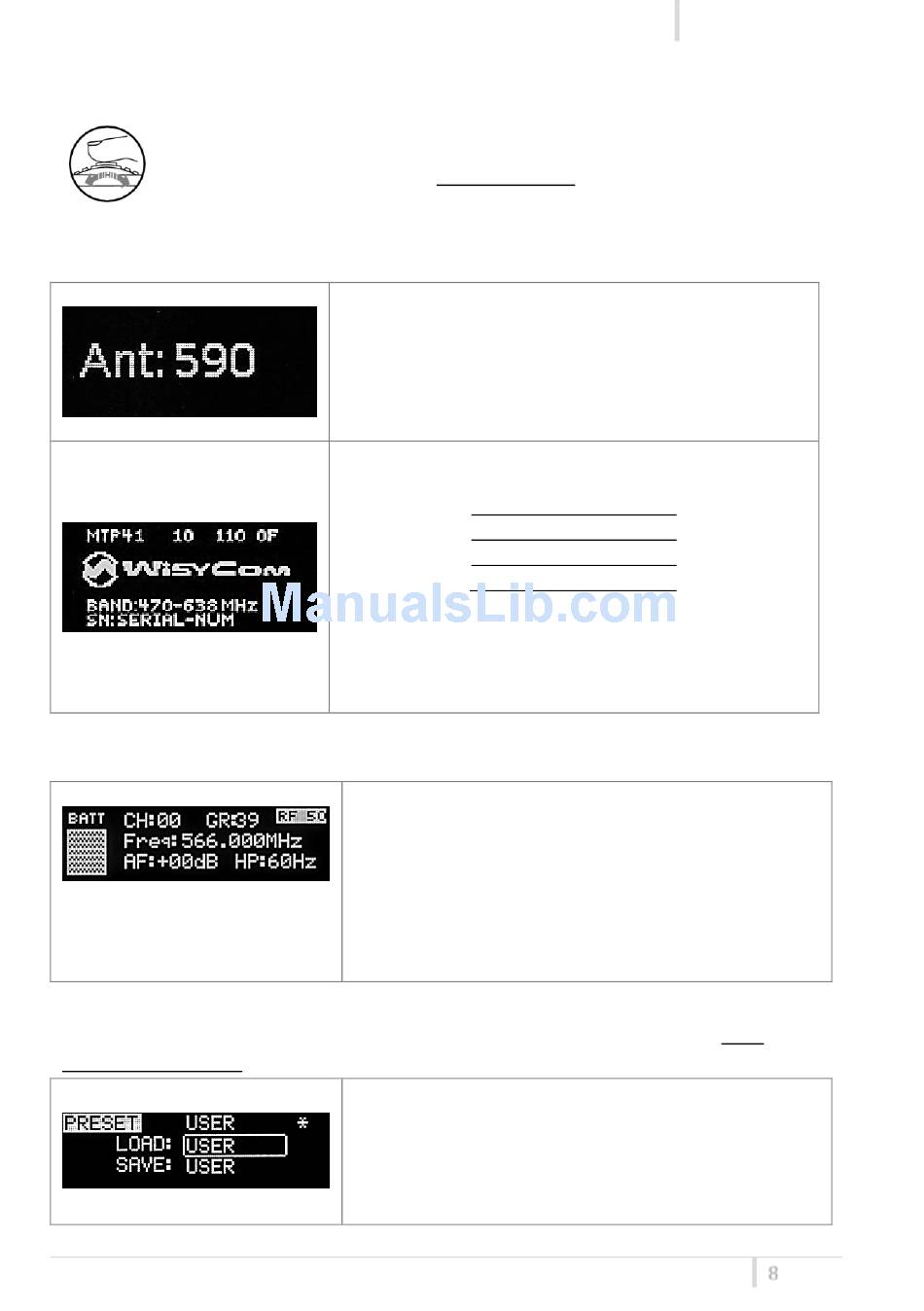

First one gives information of antenna to be used. The
number displayed is the center-band of the antenna to
be used.
The second menu gives indication on product:
- product id (MTP41),
- a number which identify the working band
1
2
3
- a number which identify the hardware version
- the firmware release (ex. 110.0F),
- the band in extended format and
- the serial number.
Keep selector pushed to hold this menu!
Major info are displayed:
- Current channel/group (i.e. CH:00 GR:39)
- Current frequency (i.e. 566.000 MHz)
- Mic gain (i.e. AF: +00dB) and high pass filter (i.e.
HP:60 Hz)
- "RF 50" or "RF 10" on top right if RF transmission
is on at high or low power respectively
- On left side, the battery bar is displayed
MTP41 can recall configuration presets. "FACTORY"
recalls the Wisycom factory configuration. "USER" recalls
the user configuration (the transmitter configuration is
copied into the USER using the "save to" submenu). All
"USER" menus are not locked by default,
thus this is quick way to unlock features!
Rev.01
470-640
566-798
510-698
