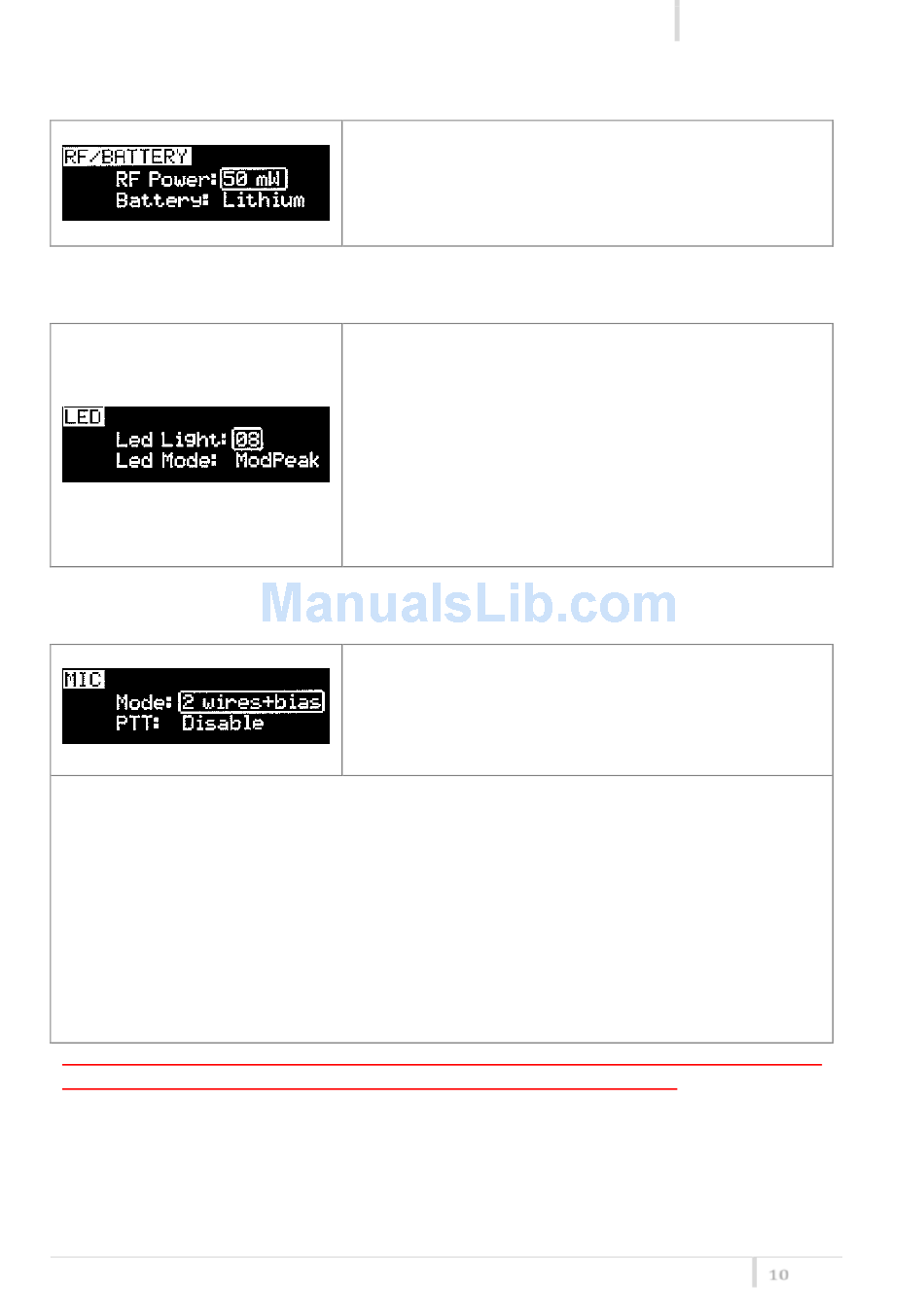

<RF/BATTERY> menu
This menu can be entered by scrolling selector.
<LED> menu
This menu can be entered by scrolling selector.
<MIC> menu
This menu can be entered by scrolling selector.
PTT setting defines how and what information the transmitter has to send in normal use or
when the PTT button is pushed.
- Disable: when the PTT button is pushed, nothing happen. (the transmitter sends AF+Tone
squelch)
- Normal: when the PTT button is pushed, the transmitter send a different RF signal.
According to the receiver configuration the audio can be enabled/disable on LINE (and/or
COM).
- Muting: the transmitter doesn't send the audio. The voice is cut, it doesn't enter to the
microphone
- No Data: the transmitter sends neither tone squelch nor battery data.
Use the selector to change values (<+/->) and <click> to confirm.
NOTE: For DPA option (2 pin microdot audio connector), even if the MIC mode menu allows to
set one of the 5 MIC modes, only 2 wires or 2 wires+bias mode are possible.
MTP41 User Manual
RF power can be setup to 50 mW or 10 mW.
Use the Battery menu to select the type of battery used.
MTP41 support Alkaline/NiMH/Lithium battery type.
Use the selector to change values (<+/->) and <click> to
confirm.
Led Light allows to change the brightness of the front led
(0÷16) .
Led Mode:
- ModPeak: allows to enable modulation peak LED on
front led (become RED when audio get close to
saturation)
- none: allows to disable modulation peak LED on front
led
- PTT: allows to enable RED color on front led when PTT
button is pushed.
Mode: Following Mic mode can be setup (for LEMO
option)
-2 wires: (PTT is possible) for external audio input
-2 wires + bias: (PTT is possible) for most 2 wires MIC
-3 wires: (no PTT) for most 3 wires MIC
