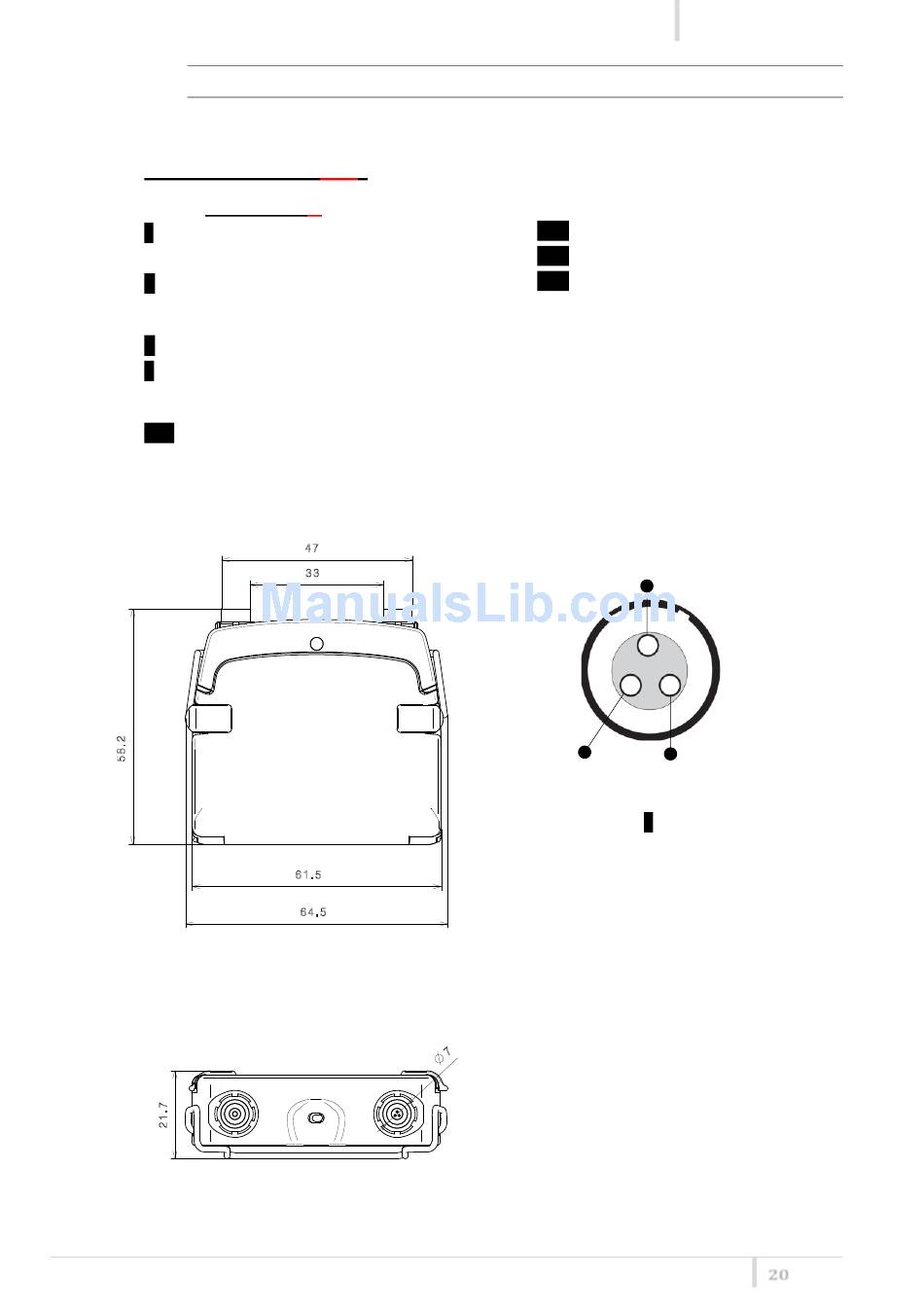

58.2 x 64.5 x 21.7 mm (Height-Width-Depth)
Dimensions
Approx. 80 g. without batteries (120g with batt.)
Weight
Note: MTP41 transmitter complies with ETS 300 422
OPTION CODE
▪ AUDIO CONNECTOR (-X)
L 3 PIN LEMO CONNECTOR
(use FVB.00.303.NLAE24 on Mic)
D 2 PIN MICRODOT CONNECTOR
▪ COLOR (-Y)
B body color "matt black"
P body color "titanium gray" (ceramic coating)
▪ OTHER OPTIONS (-O)
ADT Compatible with dummy batt. pack
Ex. MTP41-L-B1 is 3 pins LEMO connector , matt black color and 470-640 Mhz frequency range
MTP41-X-YZ :
MTP41 User Manual
▪ FREQUENCY RANGE (-Z)
1 470-640 MHz
2 566-798 MHz
3 510-698 MHz
5.5V
(3 wires)
Option
Rev.01
GND
AF
AF + 5.5V (2 wires)
L Lemo Conn.
