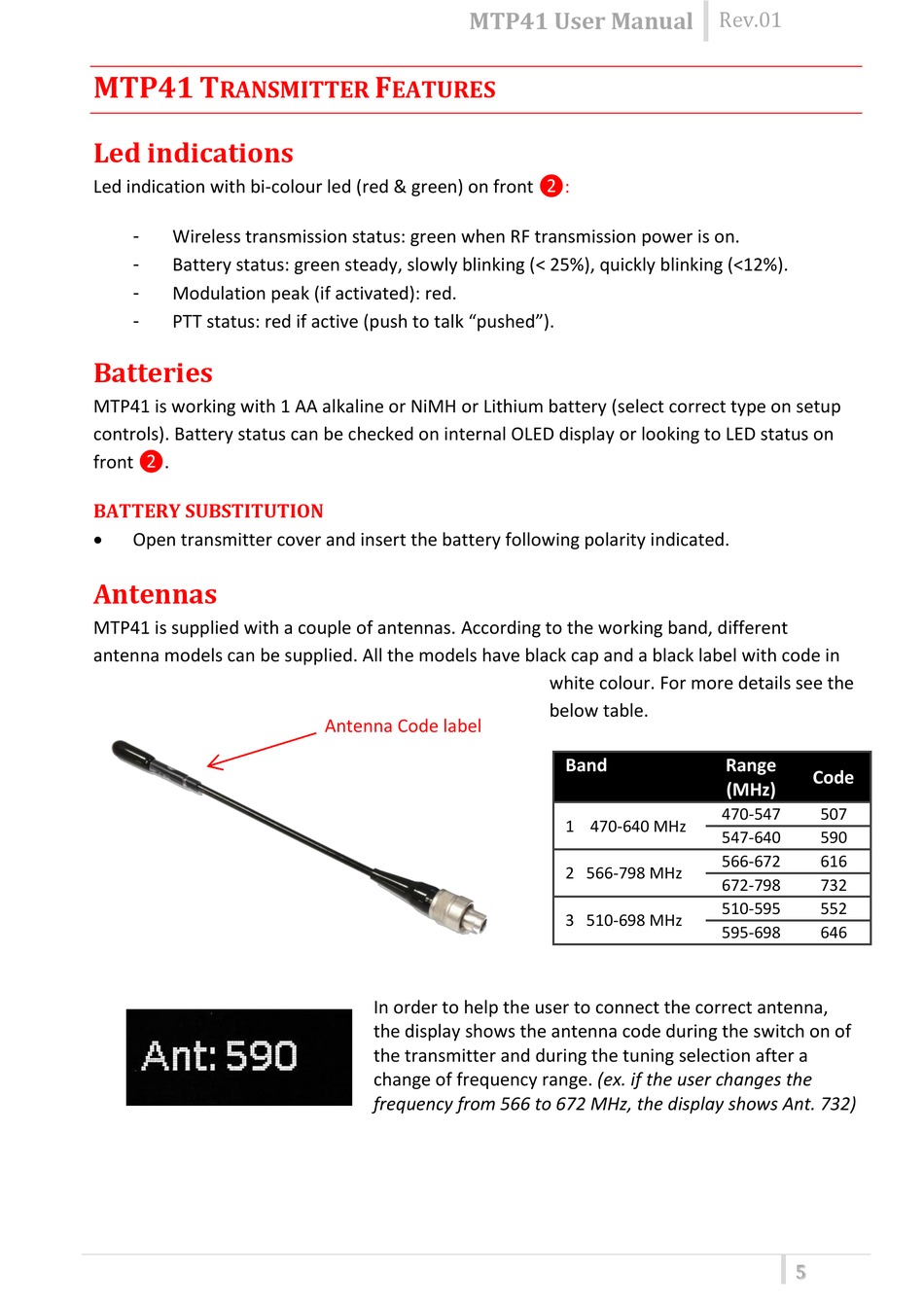

WisyCom MTP41 User Manual page 5

MTP41 T
RANSMITTER
Led indications
Led indication with bi-colour led (red & green) on front
Wireless transmission status: green when RF transmission power is on.
-
Battery status: green steady, slowly blinking (< 25%), quickly blinking (<12%).
-
- Modulation peak (if activated): red.
PTT status: red if active (push to talk "pushed").
-
Batteries
MTP41 is working with 1 AA alkaline or NiMH or Lithium battery (select correct type on setup
controls). Battery status can be checked on internal OLED display or looking to LED status on
front ❷.
BATTERY SUBSTITUTION

Open transmitter cover and insert the battery following polarity indicated.
Antennas
MTP41 is supplied with a couple of antennas. According to the working band, different
antenna models can be supplied. All the models have black cap and a black label with code in
MTP41 User Manual
F
EATURES
Antenna Code label
In order to help the user to connect the correct antenna,
the display shows the antenna code during the switch on of
the transmitter and during the tuning selection after a
change of frequency range. (ex. if the user changes the
frequency from 566 to 672 MHz, the display shows Ant. 732)
❷:
white colour. For more details see the
below table.
Band
1 470-640 MHz
2 566-798 MHz
3 510-698 MHz
Rev.01
Range
Code
(MHz)
470-547 507
547-640 590
566-672 616
672-798 732
510-595 552
595-698 646
