W
ISYCOM IR PROGRAMMER
Wisycom IR Programmer allows to read, modify and update the MTP41 device configuration.
It is necessary to
install Wisycom IR Programmer (version 1.3.2.0 or above)
WARNING: If it is the first installation and Wisycom USB driver has not already
installed in the PC, install the USB driver (run C:\Program Files
(x86)\Wisycom\MTP&MTH Infrared Programmer (TX)\Drivers\ DriverInstaller.exe)
connected the programmer UPK300 or the receiver MRK950/MRK960 to the PC thru
USB connection
run the program
enable the IRDA communication on the transmitter (see
NOTE: Wisycom IR Programmer doesn't work whit MRK950/MRK960 if it is connected to the
PC using an ethernet cable.
The Wisycom IR Programmer's window is divided in 4 parts (see Fig. 5):
Interface and Device panel contains all the major information of the connected device
Current Settings panel shows the current configuration. Thanks the PRESET panel, a
previous saved configuration can be chosen and loaded like current setting.
Tuning Frequencies panel allows to handle Groups, Channels and Frequencies
Presets panel allows to read, change and save different configurations
(
VER

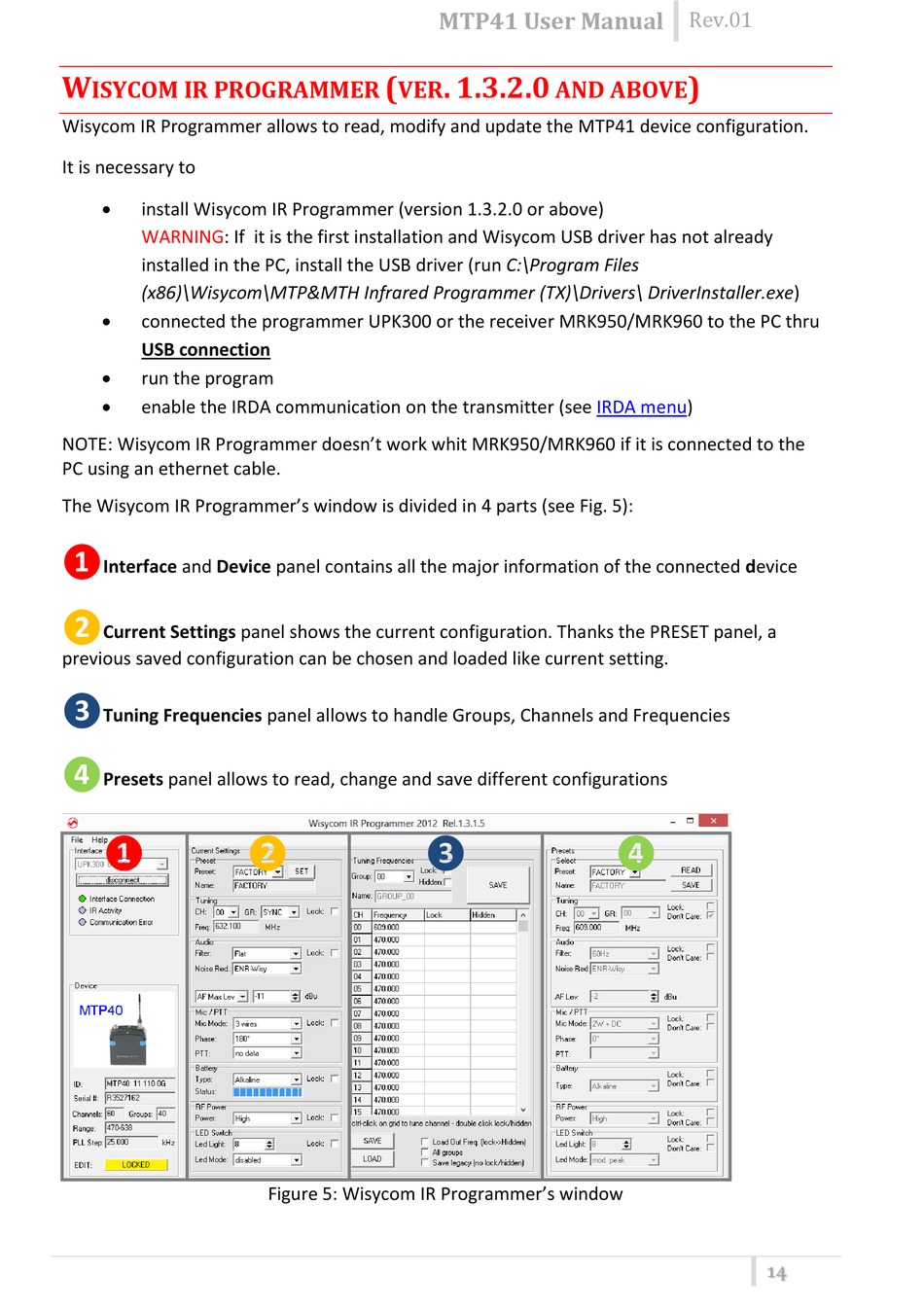

Figure 5: Wisycom IR Programmer's window
MTP41 User Manual
. 1.3.2.0
AND ABOVE
IRDA
Rev.01
)
menu)
14
