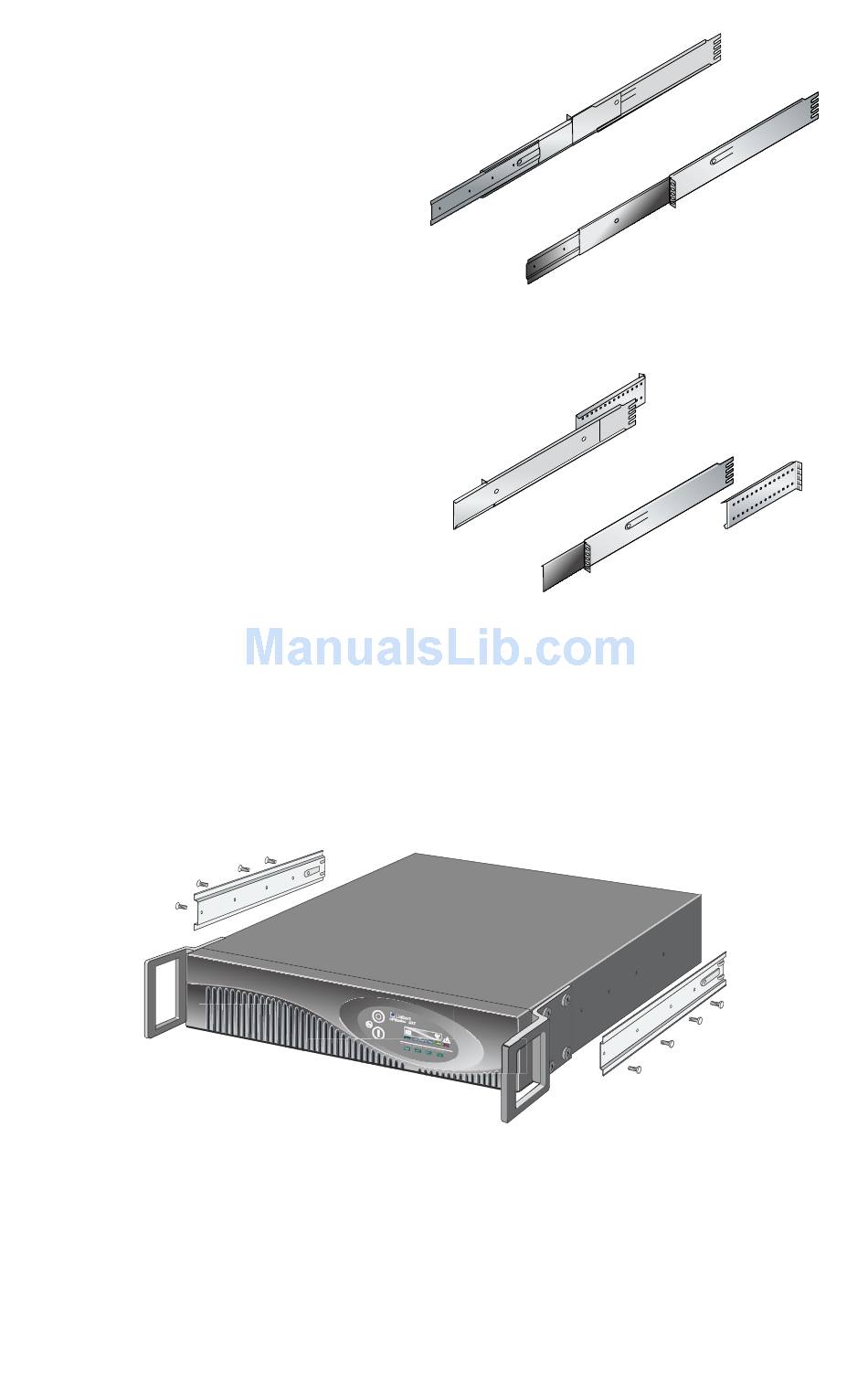

3. Unpack the (2) Slide Assem-
blies and mounting hardware
from this kit. The Slide
Assemblies are interchange-
able between left-hand or
right-hand. Remove the Inner
Member of each Slide Assem-
bly (as seen on right) by
extending it to its outermost
position, depressing the Lock-
ing Mechanism and then pull-
ing the Inner Member from the
Slide Assembly.
4. Fasten the Inner Members
from Step 3 to the UPS on
both sides as shown below
with (8) M4 Truss Head
Screws provided in the acces-
sories box of the UPS.
5. Locate in this kit (2) Mounting Brackets for the Slide Assemblies. The
Brackets allow up to 203 mm (8 inches) adjustment of the Slide
Assembly mounting position front-to-back on the Rack Mounting
Rails. Determine which adjustment holes to use on the Bracket, and
attach it to the Slide Assembly on the stationary Outer Member using
the Bar Nuts and Screws provided in this kit. Insert (2) Screws from
the inside of each Slide Assembly as shown.
NOTE: Bar nuts may not be required on all installations depending on
the type of racks being used.
