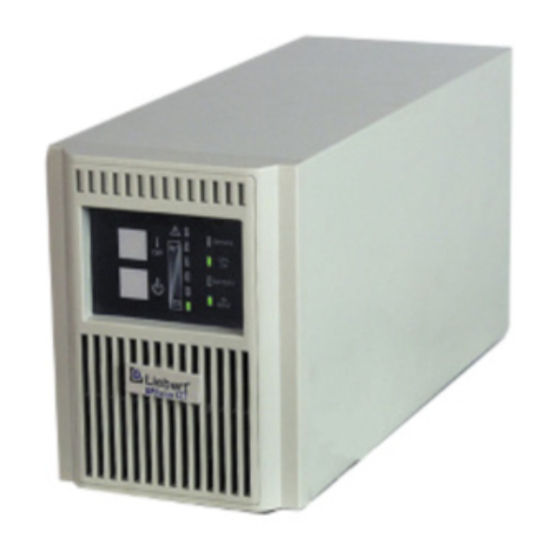

- Page 1 DISCONTINUED PRODUCT OWER ROTECTION UPStation GXT™ 700-3000 VA 120V ANUAL English / Español...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: Do not attempt to service this product yourself except to replace the battery. Opening or removing the cover may expose you to dangerous voltages, even when the AC cord is disconnected from the electrical outlet. Refer all servicing to qualified service personnel. SAVE THESE INSTRUCTIONS. -
Page 3: Introduction And System Description
13. CAUTION: Do not open or mutilate the batteries. Released electrolyte is harmful to skin and eyes and may be toxic. INTRODUCTION AND SYSTEM DESCRIPTION Congratulations on your choice of the Liebert UPStation GXT™ Uninterruptible Power System (UPS). It provides conditioned power to microcomputers and other sensitive electronic equipment. -
Page 4: Major Components
MAJOR COMPONENTS Dynamic Bypass Rectifier/PFC Inverter TVSS OUTPUT INPUT EMI/RFI Filters DC to DC Converter Battery Battery Charger TRANSIENT VOLTAGE SURGE SUPPRESSION (TVSS) AND EMI/RFI FILTERS These UPS components provide surge protection, and filter both electromagnetic interference (EMI) and radio frequency interference (RFI). They minimize any surges or interference present in the utility line and keep the sensitive equipment protected. - Page 5 DC TO DC CONVERTER The DC-DC converter utilizes energy from the battery system and raises the DC voltage to the optimum operating voltage for the inverter. This allows the inverter to operate continuously at its optimum efficiency and voltage, thus increasing reliability.
-
Page 6: General Installation
GENERAL INSTALLATION MINI-TOWER/TOWER UPS INSTALLATIONS Unpack the UPS carefully noting the packing method. Retain the box and packing material for possible future shipment. CAUTION: The UPS is heavy (see specifications). Take proper precautions when lifting or moving it. Visually inspect the UPS for freight damage. Report damage to the carrier and your dealer. -
Page 7: Rack-Mount Conversion Diagrams
4 and 5. Remove display template to change the orientation of the display. You may also rotate the “Liebert UPStation GXT™” plate located at left of display area. NOTE: UPS unit MUST be supported by a shelf, brackets or slide rails on each side. -
Page 8: Battery Cabinet Installation Diagram
12. Plug the UPS into a dedicated wall receptacle properly protected by a circuit breaker or fuse in accordance with the National And Local Codes. Use a 15 amp rated device for the 1000, or 1500 VA units, a 20 amp device for the 2000 VA unit, and a 30 amp device for the 3000 VA unit. - Page 9 FERRITE BEAD INSTALLATION Serial Communications Attach the smaller enclosed ferrite bead clamp to the communication cable as shown in the drawing using the following directions: Open the ferrite bead. Place the communication cable inside the ferrite bead grove. Position the ferrite beads as close as possible to the end of the cable that connects to the DB9 connector of the UPS.
- Page 10 UPSTATION GXT™ Fault Indicator On/Alarm Silence/ Bypass Indicator Manual Battery Test Button UPS On Indicator Battery Indicator Off/ Bypass Button AC Input Indicator Load/Battery Level Indicators 1- Output Receptacles 2- DB-9 Interface Port 3- AC Inlet 4- Intellislot ™ Communications Port 5- Circuit Protector or fuse 6- Output Voltage Selector Switches...
-
Page 11: Controls And Indicators
24 hours. After 24 hours, retest the batteries. If the batteries have been retested and the bottom two LEDs still do not illuminate, contact your dealer or Liebert Technical Support (LTS) for a battery replacement kit. -
Page 12: Operation
UPS On Indicator (Green) The UPS On indicator is illuminated when the UPS inverter is operating and supplying power to your connected loads. Battery Indicator (Amber) The Battery indicator is illuminated when the UPS is operating from the battery system. AC Input Indicator (Green) The AC Input indicator is illuminated when utility power is available and within the input specification. - Page 13 BATTERY MODE OPERATION Battery mode occurs in event of an extreme input voltage condition or complete utility failure. The battery system supplies power through the DC-DC converter to the inverter to generate power for the connected load. During battery mode an alarm sounds every 10 seconds. This will change to 2 beeps every 5 seconds when battery runs low (approximately 2 minutes remaining).
-
Page 14: Communications Interface Port
Monitoring of the UPS via a computer system is easily made with a Liebert SiteNet® 1 shutdown kit (sold separately). -
Page 15: Ups Intelligent Communications
Periodic tests of battery quality and replacement notification Timed and delayed shutdown of the UPS Logging of power disturbances and anomalies Consult your local Liebert sales representative for more information about SiteNet® 2 software. UPS INTELLISLOT™ COMMUNICATIONS The UPStation GXT™ UPS contains an Intellislot™ communications port for the optional internal Ethernet SNMP card. -
Page 16: Battery Replacement Procedures
Do not dispose of batteries in a fire, the batteries may explode. If you feel unqualified to replace the batteries, do not open the battery door. Call Liebert Technical Support (LTS). World Wide Technical Support numbers are located at the end of this section. - Page 17 Replace battery door by inserting the three metal tabs into the slots and pushing it toward the front of the UPS. Replace and tighten the five screws to lock the battery door closed. Carefully stand the UPS upright. Connect the UPS to the utility supply socket and turn on the UPS by pressing the on button.
-
Page 18: Rack/Tower Battery Replacement
RACK / TOWER BATTERY REPLACEMENT Top cover screws Flange screws Rear View Aerial View w/top cover removed Two front Front bezel (cover) rubber feet Small battery door Large battery door Screw hidden by small battery door Battery connector Large battery door DISCONTINUED PRODUCT... - Page 19 UPSTATION GXT BATTERY RUN TIMES (Discharge times are at 25° C ambient) Internal Battery (minutes) Load% 700MT 1000MT 1000RT 1000RTE 1500RT 2000RT 3000RT 100% Internal Battery + 1 External Battery Cabinet (minutes) Load% 700MT 1000MT 1000RT 1000RTE 1500RT 2000RT 3000RT 100% Internal Battery + 2 External Battery Cabinets (minutes) Load%...
-
Page 20: Audible Alarm Conditions
FUSE REPLACEMENT PROCEDURES CAUTION: Before changing the input fuse, turn off the UPS, and unplug the supply lead from the AC input supply and from the UPS. Replace the fuse with the same type and rating. 700 / 1000 VA 1500 VA Insert flat blade screwdriver into slot... -
Page 21: Troubleshooting
5 minutes while battery charger is not operational. If a problem persists consult your dealer, or contact Liebert Technical Support (LTS). World Wide Technical Support numbers are located at the end of this section. -
Page 22: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION UPS fails to start UPS is short circuited or Ensure UPS is off. Disconnect all loads when on button is overloaded and ensure nothing is lodged in output pressed sockets. Ensure loads are not defective or shorted internally. -
Page 23: Specifications
SPECIFICATIONS MODEL NUMBER GXT700MT-120 GXT1000MT-120 MODEL RATING 700 / 490 1000 / 700 VA/W DIMENSIONS: in (mm) Unit 6.4 x 15.6 x 8.9 6.4 x 15.6 x 8.9 W x D x H (162 x 430 x 225) (162 x 430 x 225) Shipping 11.0 x 19.75 x 14.25... - Page 24 SPECIFICATIONS MODEL NUMBER GXT1000RT-120 GXT1000RTE-120 MODEL RATING 1000 / 700 1000 / 700 VA/W DIMENSIONS: in (mm) Unit 7.0 x 19.3 x 16.9 7.0 x 19.3 x 16.9 W x D x H (177 x 522 x 430) (177 x 522 x 430) Shipping 13.38 x 26.0 x 22.25 13.38 x 26.0 x 22.25...
- Page 25 SPECIFICATIONS MODEL NUMBER GXT1500RT-120 GXT2000RT-120 GXT3000RT-120 MODEL RATING 1500 / 1050 2000 / 1400 3000 / 2100 VA/W DIMENSIONS: in (mm) Unit 7.0 x 19.3 x 16.9 7.0 x 19.3 x 16.9 7.0 x 19.3 x 16.9 W x D x H (177 x 522 x 430) (177 x 522 x 430) (177 x 522 x 430)
-
Page 26: Battery Cabinet Specifications
BATTERY CABINET SPECIFICATIONS MODEL NUMBER GXT36VBATT GXT48VBATT GXT96VBATT Used w/ UPS Model 1000RT 1500RT 2000RT/3000RT DIMENSIONS: in (mm) Unit 177 x 522 x 430 177 x 522 x 430 177 x 522 x 430 W x D x H (7.0 x 19.3 x 16. 9) (7.0 x 19.3 x 16. -
Page 27: Limited Warranty
(4) to six (6) months when not in use. If the UPS fails to conform with the above warranty within the two year warranty period, Liebert will repair or replace the UPS, at Liebert's option. Repairs or replacements are warranted for the remainder of the original warranty period. -
Page 28: Technical Support
614-841-5471 The Company Behind The Products With more than 500,000 installations around the While every precaution globe, Liebert is the world leader in computer been taken to ensure accuracy protection systems. Since its founding in 1965, completeness this Liebert has developed a complete range of support...
