EUROCOM M4 User Manual page 202

Modules

Power Safety
Warning
Before you undertake any
installation procedures,
make sure that you have
turned off the power, and
disconnected all peripher-
als and cables (including
telephone lines). It is advis-
able to also remove your
battery in order to prevent
7
accidentally turning the ma-
chine on.
USIM Card Orientation
Note that the USIM card's
readable side (with the
gold-colored contacts)
should face upwards as il-
lustrated.

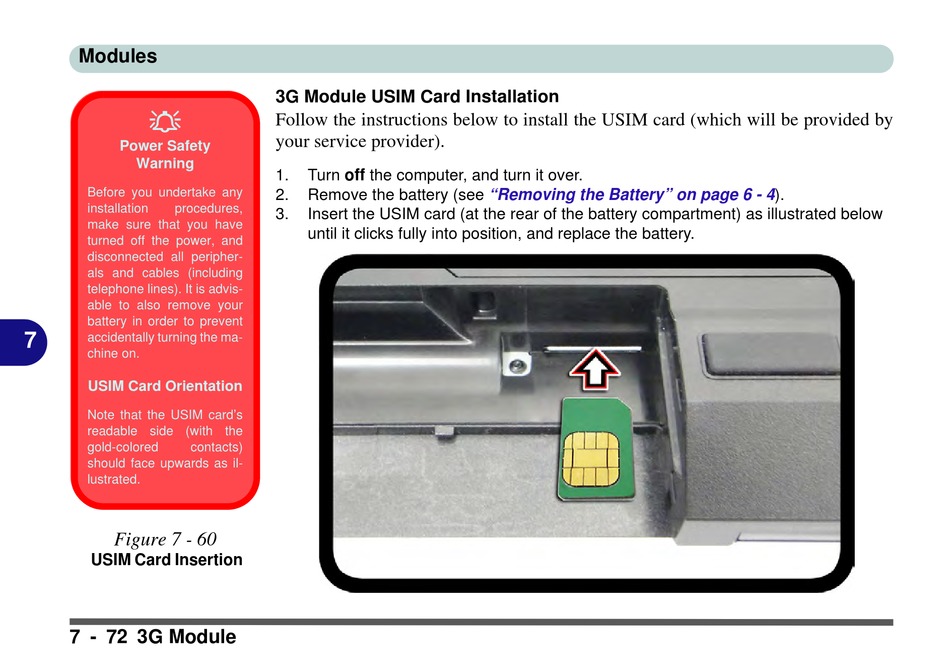

Figure 7 - 60
USIM Card Insertion
7 - 72 3G Module
3G Module USIM Card Installation
Follow the instructions below to install the USIM card (which will be provided by
your service provider).
1. Turn off the computer, and turn it over.
2. Remove the battery (see
3. Insert the USIM card (at the rear of the battery compartment) as illustrated below
until it clicks fully into position, and replace the battery.
"Removing the Battery" on page 6 - 4).
