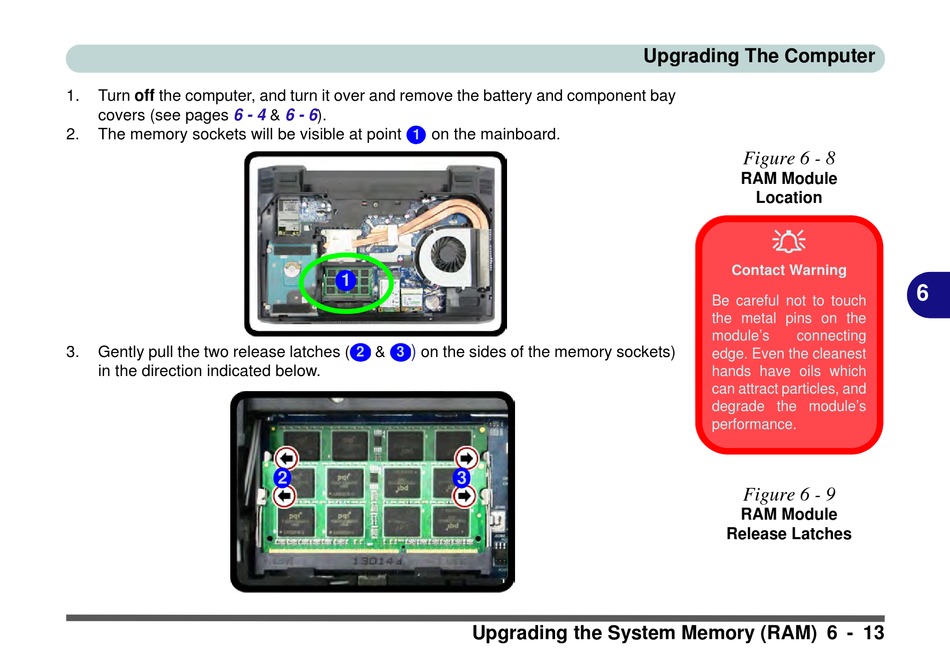

EUROCOM M4 User Manual page 129

1. Turn off the computer, and turn it over and remove the battery and component bay
covers (see pages 6 - 4
2. The memory sockets will be visible at point
3. Gently pull the two release latches (
in the direction indicated below.
& 6 - 6).
on the mainboard.
1
1
)
& on the sides of the memory sockets)
2 3
2 3
Upgrading the System Memory (RAM) 6 - 13
Upgrading The Computer
Figure 6 - 8
RAM Module
Location

Contact Warning
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module's
performance.
Figure 6 - 9
RAM Module
Release Latches
6
