3. Lift the cover up at point
4
When removing any cover(s) and screw(s) for the purposes of device upgrade, remember
to replace the cover(s) and screw(s) before turning restoring power to the system.
Also note the following when the cover is removed:
• Hazardous moving parts.
• Keep away from moving fan blades.
• Do not touch the heat sink area as the parts may be hot.
and remove the cover
4
6

Removal Warning
Upgrading The Computer
the direction of arrow
5 6
5

Removing the Component Bay Cover 6 - 7

.

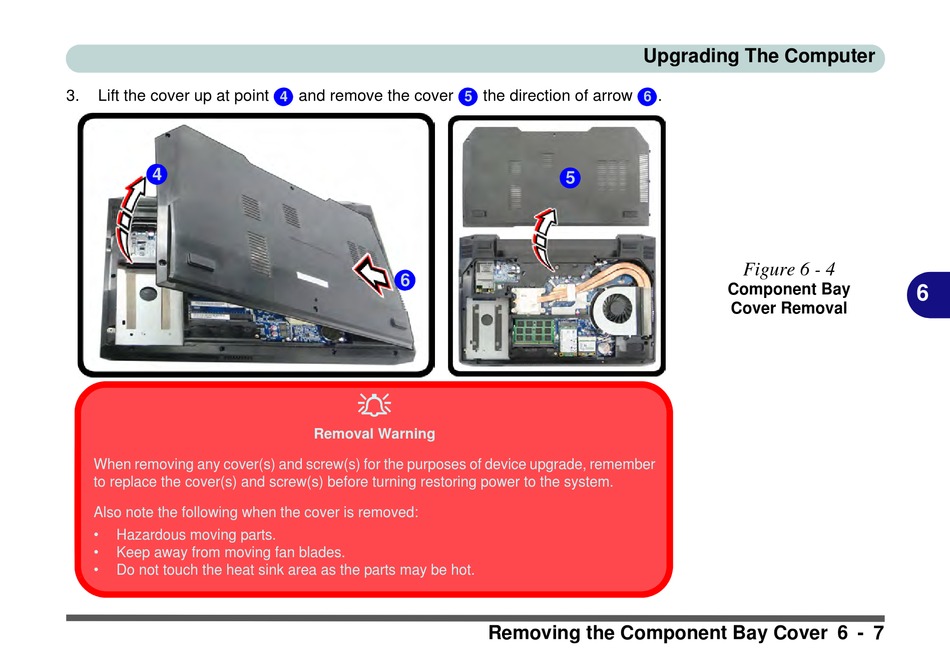

Figure 6 - 4
Component Bay
Cover Removal
6
