2.5 AIR SUPPLY FOR COMBUSTION

Every form of combustion uses air. In the case of a thermally sealed room supplementary air supply
is essential. One must at all times avoid creating under-pressure in the room. If a cooking hood ap-
pears to be absolutely essential in the adjoining room, sufficient
air supply will have to be provided to avoid every form of under-pressure.
You need an airlet with dia. 150mm coming from outisde, or a ventilated shelter. This airinlet you
have to connect to the Luna.
For a double sided LUNA and the LUNA 1000V+ and 1150V+ ,
you need two air inlets dia. 150mm.

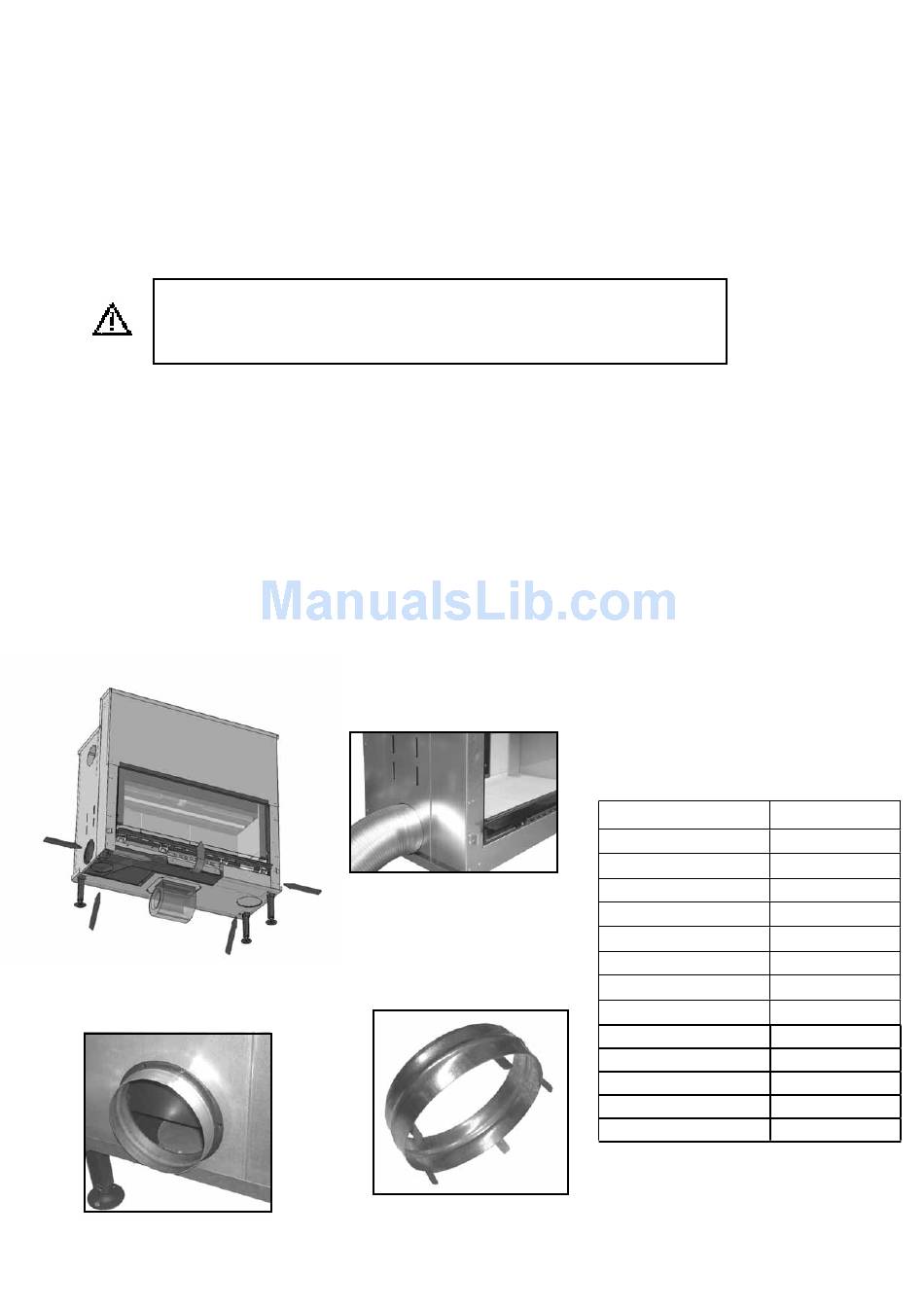

With the Luna Gold+, the fresh air for combustion is supplied directly from outside through a
flexible ( dia. 150mm ) that is connected to one of the 4 entrances that are provided on the left,
right or lower side of the fireplace ( pic. 4 & 5 ) . Use for this purpose one of five connection
pieces ( pic. 6 & 7 )
Thanks to this new system, the air that is required for combustion is completely separated from
the convection air stream in the room ( see further at point 2.3. Convection current ).
The appliance is always delivered with an open air inleet at the left side. If you want to change,
you can remove the plate on the side you wish to connect en replace the plate on the side that was
open before.
pic. 4
pic. 6
INSTRUCTION FOR INSTALLATION AND USE LUNA GOLD+ WOOD
FRESH AIR INLETS FROM OUTSIDE
NEEDED FOR COMBUSTION
Luna Gold 700 H+
Luna Gold 850 H+
Luna Gold 1000 H+
pic. 5
Luna Gold 1150 H+
Luna Gold 1300 H+
Luna Gold 550 V+
Luna Gold 850 V+
Luna Gold 1000 V+
Luna Gold 1150 V+
Luna Gold 1150 DH+
Luna Gold 1000 DV+
Luna Gold 850 DH+
Luna Gold 850 DV+
pic. 7
ø150
1 x ø150
1 x ø150
1 x ø150
1 x ø150
1 x ø150
1 x ø150
1 x ø150
2 x ø150
2 x ø150
2 x ø150
2 x ø150
2 x ø150
2 x ø150
