2.4 MOUNTING A 3-SIDED FRAME ( see page 23 and 24 drawings 3-si-
ded frame and 4th side )

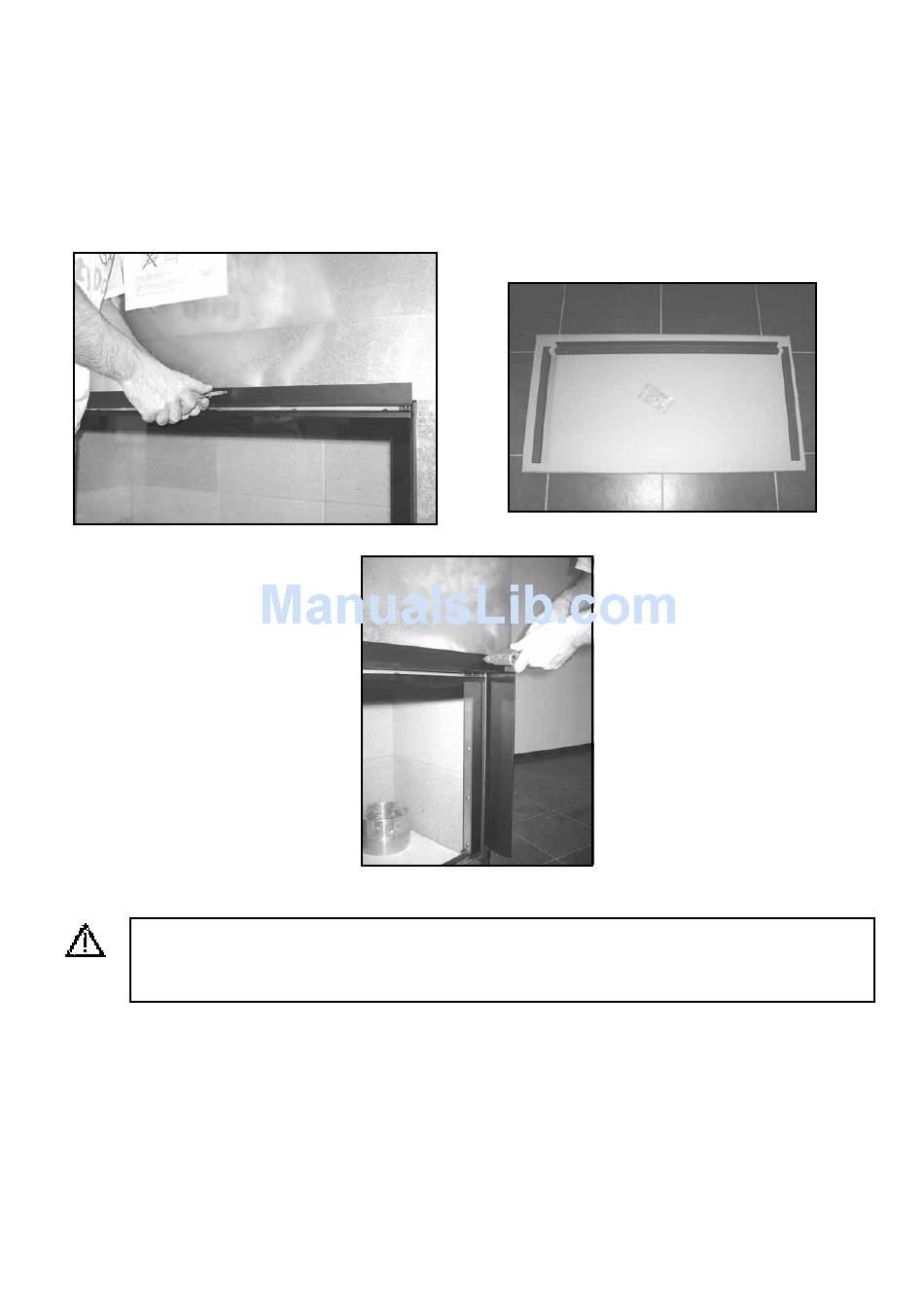

First remove the profile that is delivered with the fireplace ( pic. 1 )
The 3 sided frame consist of 3 parts and are assembled to the Luna ( pic. 2 )
Fixing to frame with the included screws ( pic.3 )
pic.1
PLEASE PAY ATTENTION TO LEAVE APPROX 2 MM INBETWEEN THE FRAME
AND THE FINISHING MATERIAL ( HEAT = EXPANSION)
Example :
Finished size of the Luna 1150H+ Gold is 450 x 1080 mm
Thickness 3-sided frame : 3mm
Calculate as follow : 1080mm + 2x3mm ( 3-sided frame ) + 2x2mm ( expansion ) = 1090 mm.
This is now the measurement you need to have when using a 3-sided frame in combination with
marble, gyproc, or othet materials.
For the height you start calculate from just underneath the 4-sided frame to the top of the
3-sided frame : this is 450mm. For the finishing measurement calculate 450mm + 2mm.
pic.3
INSTRUCTION FOR INSTALLATION AND USE LUNA GOLD+ WOOD
the 3 sides frame and his 3 parts
pic.2
