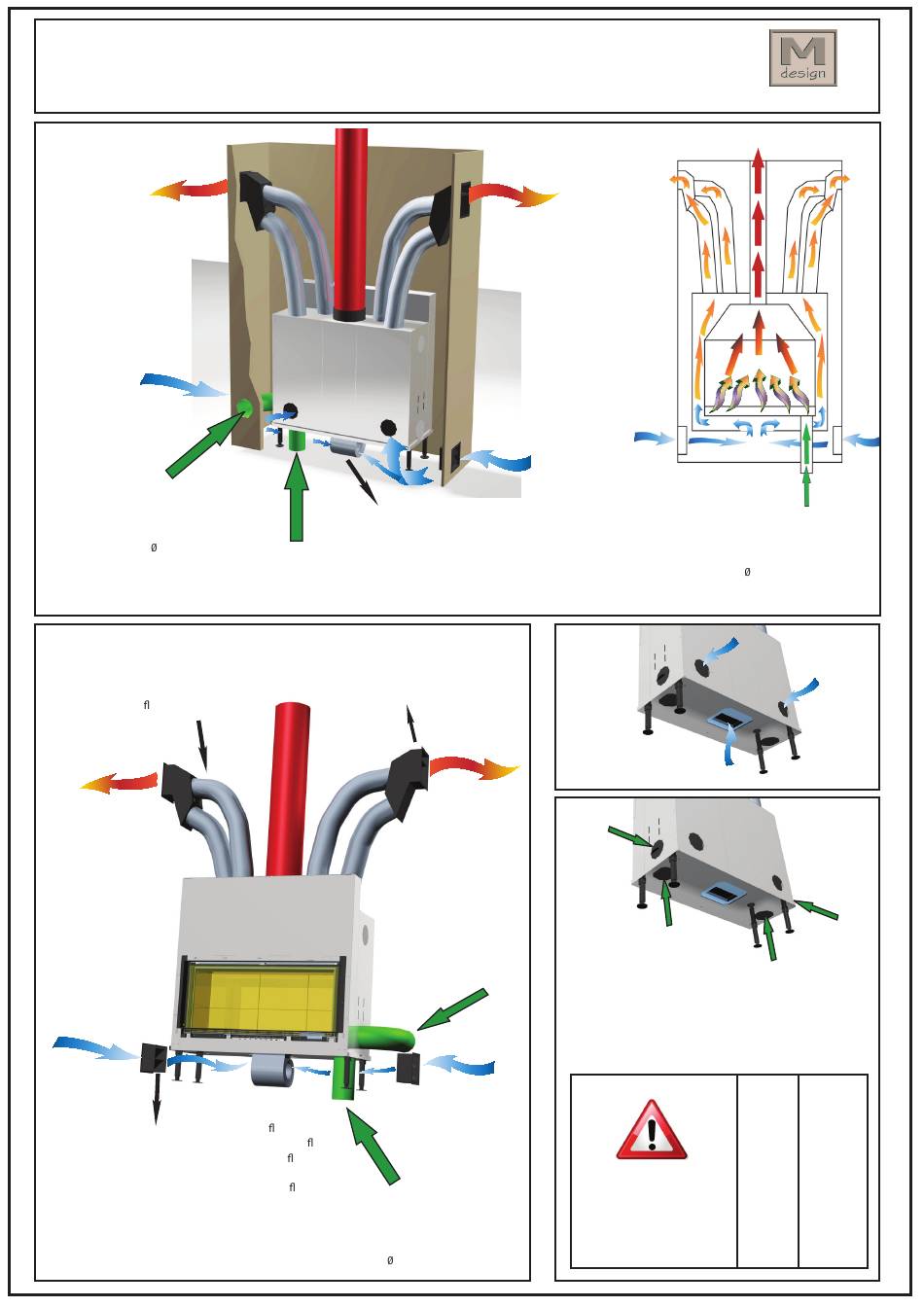

M Design Luna Gold 700 H+ Quick Start

Advertisement

Quick Links

Snelle start
Utilisation rapide
Quick Start
Schnell Sart
Uitgang convectie
Sortie convection
Konvektion
Convection outlet
Ingang convectie
Entrée convection
Konvektion
Convection inlet
Externe luchttoevoer verbrandingslucht
Arrivée air exterieure pour la combustion
Externe Luft für Verbrennung
External Air inlet for combustion
150mm
Laat 3cm ruimte tussen haard en ombouw en achter de haard t.o.v. de muur
Laisser 3 cm entre le foyer et la paroi ou maçonnerie autour du foyer et à l'arrière.
Alu extube Ø150 mm
Aanzuigrooster : niet aansluiten met exibel !
Entrée air de convection : ne pas connecter avec un exible !
Externe Luftzufuhr mit Gitter : wird nicht mit Alu exschlauch
angeschlossen!
Convection air inlet grid : not to connect with extube !
LUNA GOLD +
Met of zonder ventilator naar keuze.
Avec ou sans ventilateur, au choix.
With our without fan.
Mit oder ohne Ventilator.
Keep about 3cm between masonry and behind the appliance to wall behind.
Lassen Sie 3cm zwischen dem Kamine und der Wand und auch hinten Kamine
M-Design rooster
Grille M-Design
M-Design Grill
M-Design Gitter
Externe luchttoevoer verbrandingslucht
Arrivée air extérieure pour la combustion
Externe Luft für Verbrennung
External Air inlet for combustion
150mm
Uitgang convectie
Sortie convection
Konvektion
Convection outlet
Ingang convectie
Entrée convection
Konvektion
Convection inlet
Externe luchttoevoer verbrandingslucht
Arrivée air extérieure pour la combustion
Externe Luft für Verbrennung
External Air inlet for combustion
Convectie/Convection/Konvektion
Externe lucht verplicht aan te sluiten / Air extérieur à
raccorder obligatoirement / Extern Luft anschliessen /
External Air to be connected
4 aansluitmogelijkheden : 1 links / 1 rechts of 2 onderaan
4 possibilités de raccordement : 1 à gauche / 1 à droite ou 2 en dessous
4 ways to connect : 1 left / 1 right or 2 underneath
4 Möglichkeiten für Anschluss : 1 links / 1 rechts oder 2 unter
Aantal aan te sluiten toevoeren
Nombre d'entrées à prévoir
Empfohlene Zufuhren
External inlets to provide
1/2
Passion for fire
Passion for fire
150mm
700 H+
1 x Ø 150 mm
850 H+
1 x Ø 150 mm
1000 H+
1 x Ø 150 mm
1150 H+
1 x Ø 150 mm
1300 H+
1 x Ø 150 mm
550 V+
1 x Ø 150 mm
850 V+
1 x Ø 150 mm
1000 V+
2 x Ø 150 mm
1150 V+
2 x Ø 150 mm
1150 DH+
2 x Ø 150 mm
1000 DV+
2 x Ø 150 mm
850 DH+
2 x Ø 150 mm
850 DV+
2 x Ø 150 mm
900 CL/CR+
1 x Ø 150 mm
800 DC +
1 x Ø 150 mm
