2.9.2 SYSTEM WITH THREE DEFLECTORS AND TWO AUTOMATIC VALVES
With a closed door (fig 10) , we have a minimal evacuation for the combustion gaz.
The main valve is closed (fig.10)
The second deflector has a valve too (fig.11).
When opening the liftdoor, the main valve and the second valve in the second deflector
are opening simultaniously (fig.11). The combustion gaz is going out quickly when the
window is open and is not going into the livingroom.

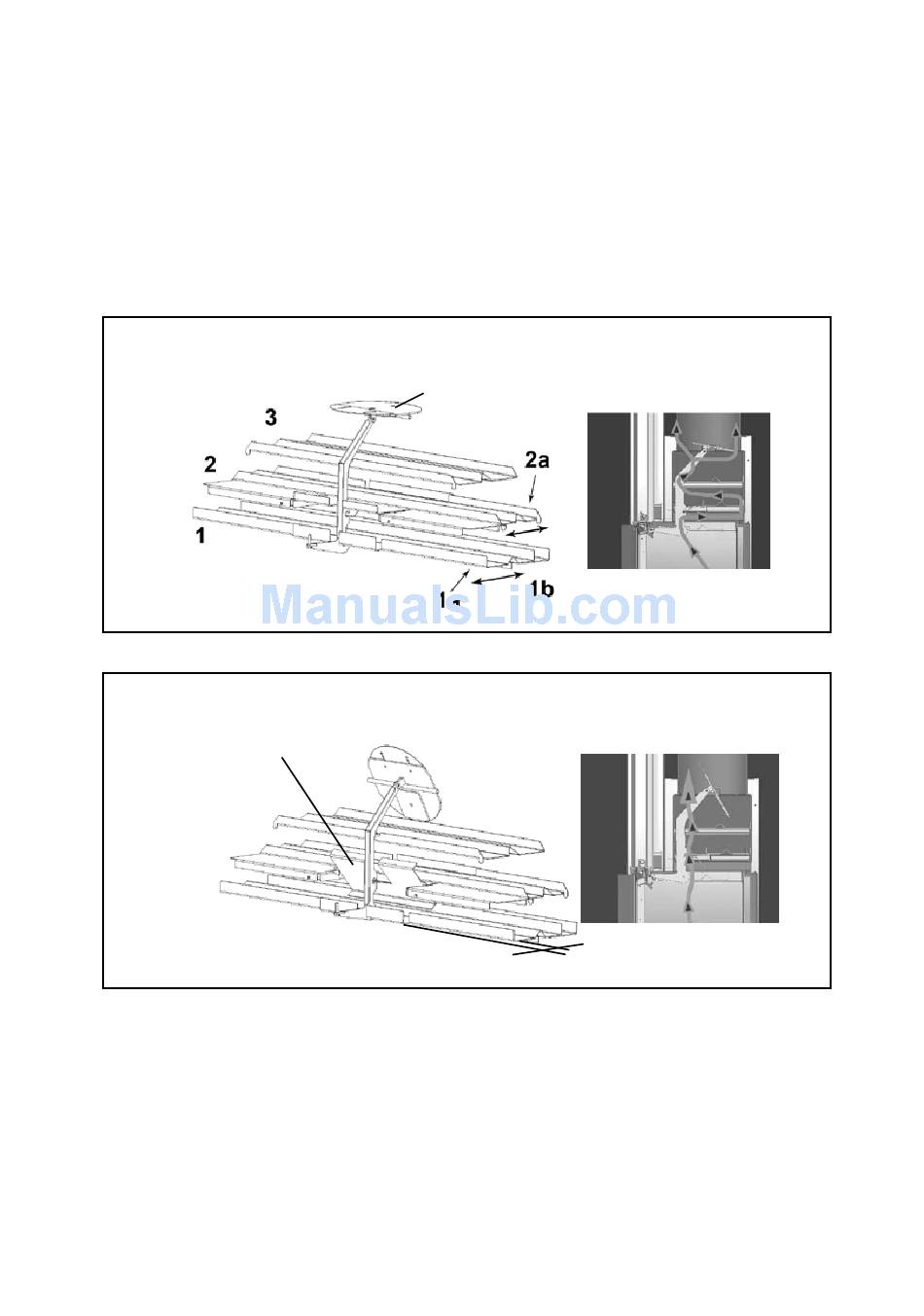

Fig.10 : door closed
main valve
valve on second deflector
Fig.11 : door open
2cm
Installing the deflectors :
The first deflector (1) exists of two parts. A movable part (1a) and a fix part (1b).
Plate (1a) leans on plate (1b).
Plate (1b) has some trenches (see picture 13 and 14 ).
The minimal opening to remove the gaz is about 2cm along the width of the first deflector (fig.11).
When there is to less draught, you can make this gap bigger by lifting up plate nr. 1a. Put this plate
more to the backside in the trenches of plate (1b).
You can move plate (2a) in the same way as plate (1a).
In some exceptional situation , when the draught is very poorly, you can remove the plate nr 1a.
