IMPORTANT :
THIS MUST BE DONE IF YOU DIDN'T FOUND
SATISFACTION WITH 2.9.1.1 AND 2.9.1.2

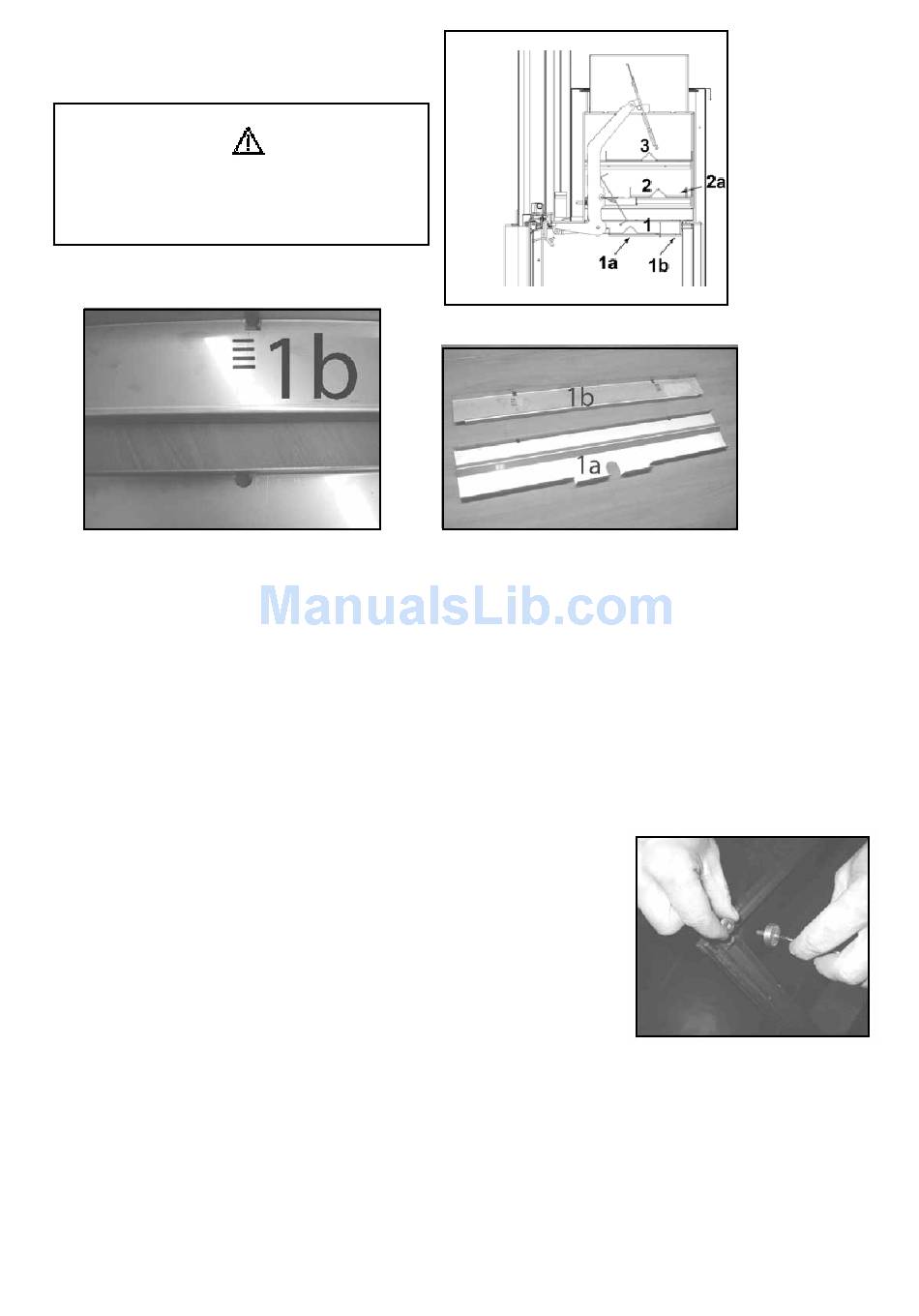

Pic..13
ATTENTION : FOT THE LUNA 550V YOU DON'T FIND A PLATE nr 1a AND nr 3. THIS IS BE-
CAUSE OF THE NARROW ARCHITECTURE OF THIS MODEL. IN ANY CIRCUMSTANCES
THIS WILL NOT GIVE A BAD FUCNTION OF THE APPLIANCE.
2.9.3. SECUNDARY AIR FLOW FOR COMBUSTION
At the top of the window, across the whole witdh, a secondary
air flow for combustion is provided. The gap between the main
frame of the appliance and the window is regulated automatically
with two bimetallic strips. At each of the superior corners of the
window, you'll find two circular magnets. Those ensures that the
window is closing well against the bimetals situated on the main
frame of the applliance.
When the aplliance is still in cold situation, the gap between the
window and the main frame is made in that way the fire gets
enough oxygen. When the appliance gets warmer, bimetals comes
in action and pulls the window in their direction to reduce the gap
and in this way reduces automatically the intesity of the fire.
If you are feeling the combustion is a less controlable, it is
possible to remove a ring (pic.15 ) , even two if necessary.
Remove first the magnet and you will find the rings behind it.
INSTRUCTION FOR INSTALLATION AND USE LUNA GOLD+ WOOD
Fig.12
Pic.15
17
