3. FUNCTIONNING

When burning this fireplace with a closed door, the air clapet with seal is closed and so the
fire takes the air through the channel connected with the flexibel from outside. The air is then
spread underneath the spoiler over the entire width of the fireplace. It is important to clean
out the fireplace from the ashes and to free the space under the spoiler to let the air coming
into the fireplace ( Pic.9 ).

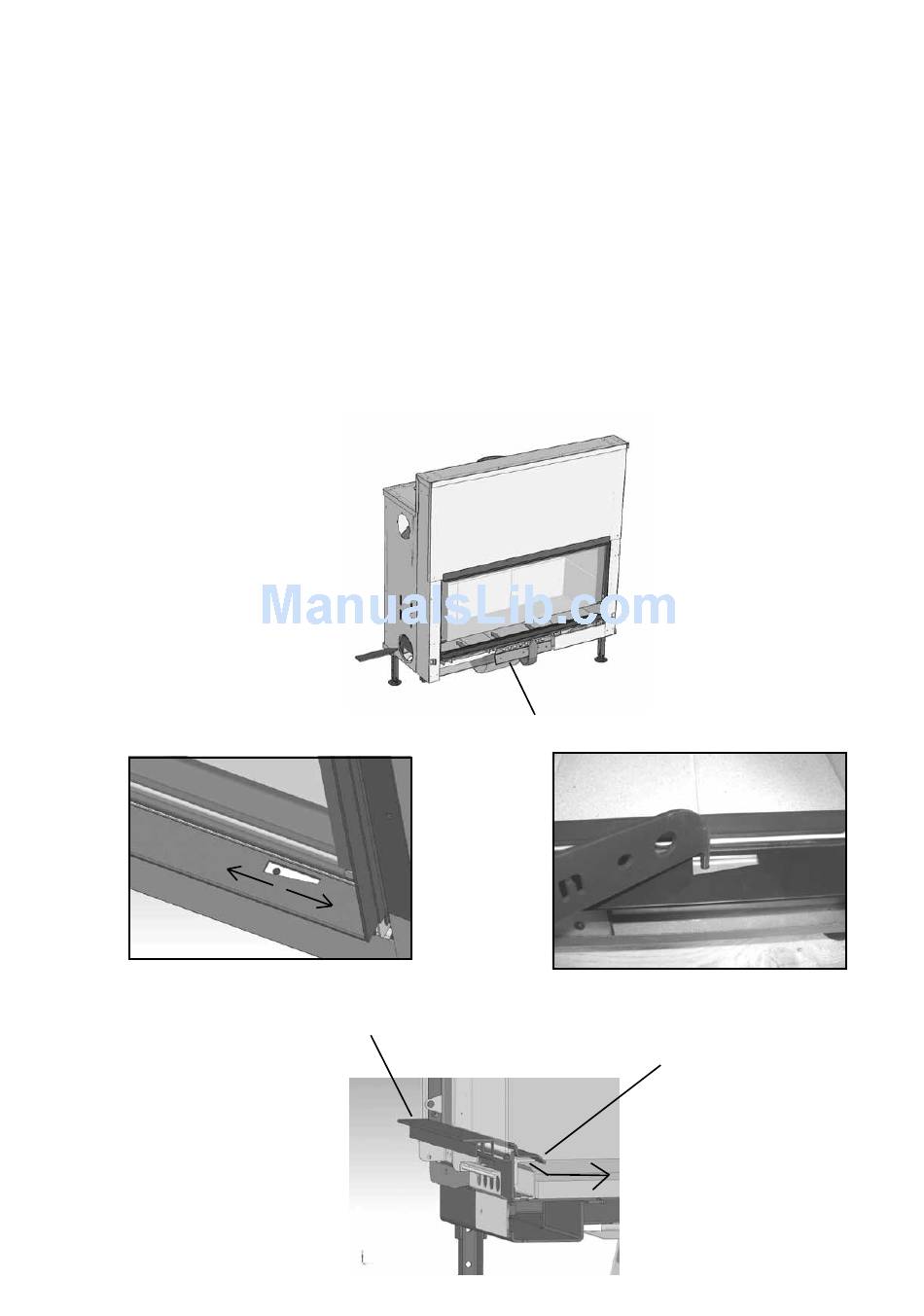

When the door is opened , the air clapet is also being opened. Extra air is going in the fire-
place trough apertures situated in the 4th side frame direct from the air channels (see arrows
into the fireplace on pic. 8) . Of course air is also taken from the livingroom.
The primary air supply can be regulated manually. Use the key ( pic. 10 & 11 ) to slide the
regulator to the left for opening primary air and on the right to close primary air. When door
is open this regulation will not have an effect on the fire.
INSTRUCTION FOR INSTALLATION AND USE LUNA GOLD+ WOOD
valve with seal
Pic. 10
4th side frame /
Pic. 9
Pic 8
Pic. 11
Spolier
Primary air supply for
combustion
19
