IFO2175-873 Series Panel PC User's Manual
4.2

Touch Screen

4.2.1 Specification

Touch Screen
Touch Screen Controller
Communications
Resolution
Power Input
Power Consumption

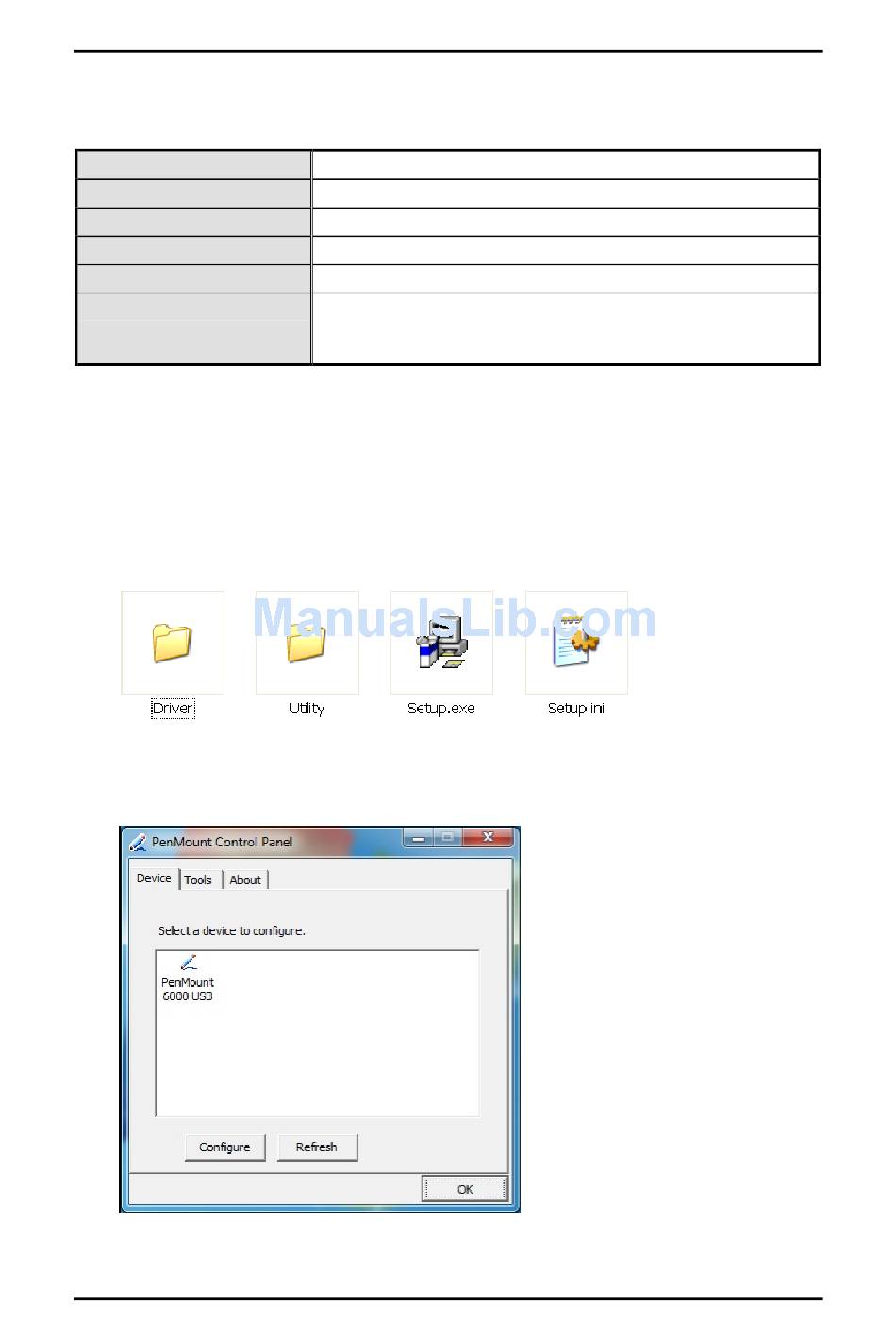

4.2.2 Driver Installation

The IFO2175-873 Series provides a driver of the touch screen that users can install it under
operating system Windows XP/7/8. To facilitate this touch screen driver installation, users
should read the instructions in this chapter carefully before start the installation.
1. Insert Driver CD and select the D:\IFO2175-873\Driver\Step7 - Touch
2. Follow the installing procedure and press OK.
3. Click Start menu and select "PenMount Control Panel", and then double click PenMount
6000 USB.
48
For 5-wire analog resistive type
PenMount 6000 microcontroller
USB
1024 x 1024
5V
Standby Mode : 13.4mA; Active Mode: 24.6mA
(VCC=5V, Top sheet Panel Resistance: 274 ohm, Bottom sheet
Panel Resistance: 770 ohm)
Driver Installation
