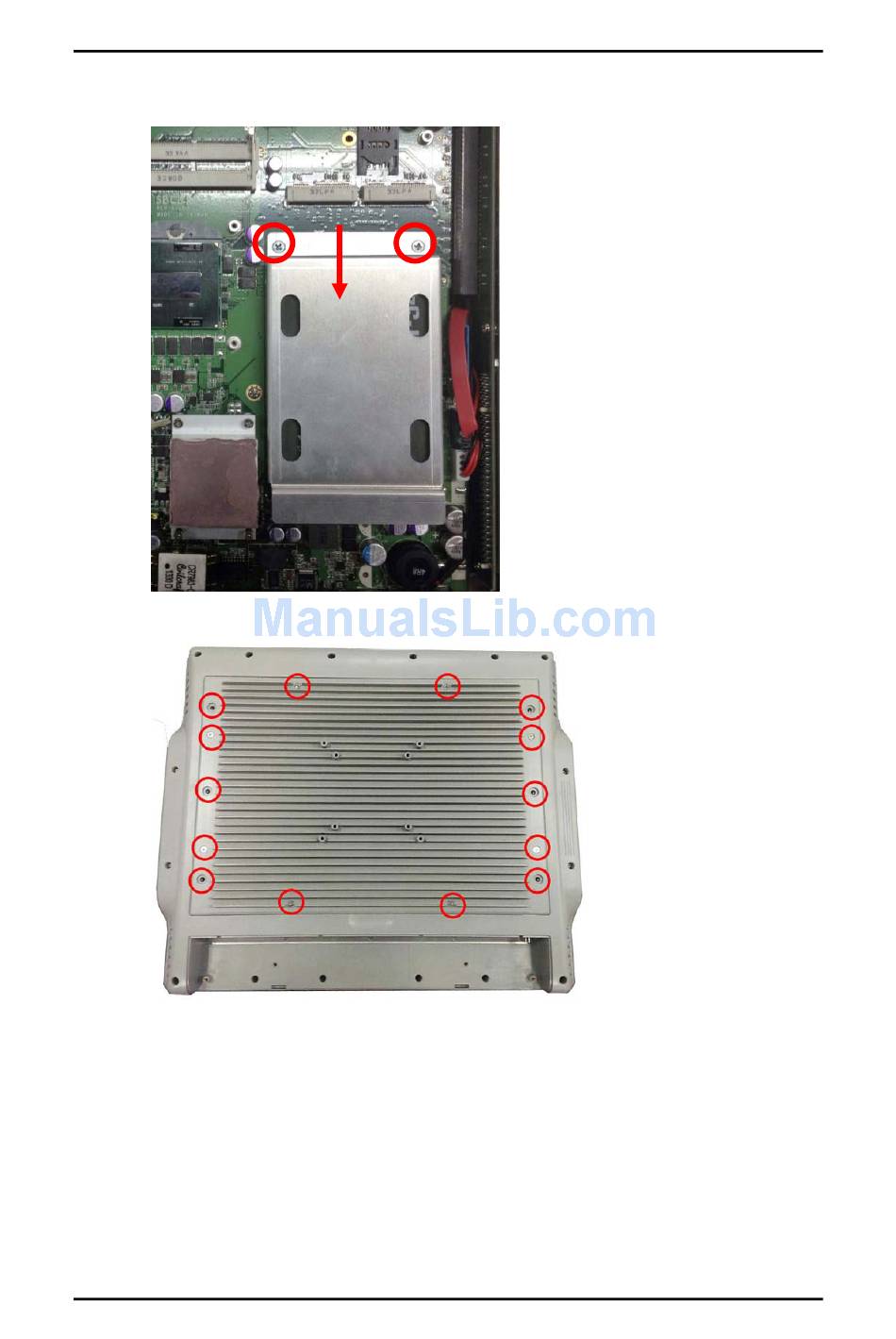

Step 6

Install the HDD bracket inside the system. Plug the HDD in the SATA connector on

main board. Fix two screw holes on main board as marked

Step 7

Close the back cover to the chassis, and fasten all screws.
