The IFO2175-873 Series are convenient for your various hardware configurations, such as
CPU (Central Processing Unit) and HDD (Hard Disk Drive). The chapter 2 will show you how
to install the hardware. It includes:
2.1
CPU and DRAM Installation
The IFO2175-873 provides socket rPGA988B for processor and two 204-pin DDR3 SO-
DIMM sockets that support system memory up to 16GB. Please follow steps below to
install the memory modules:
Step 1
Turn off the system, and unplug the Power cord.
Step 2

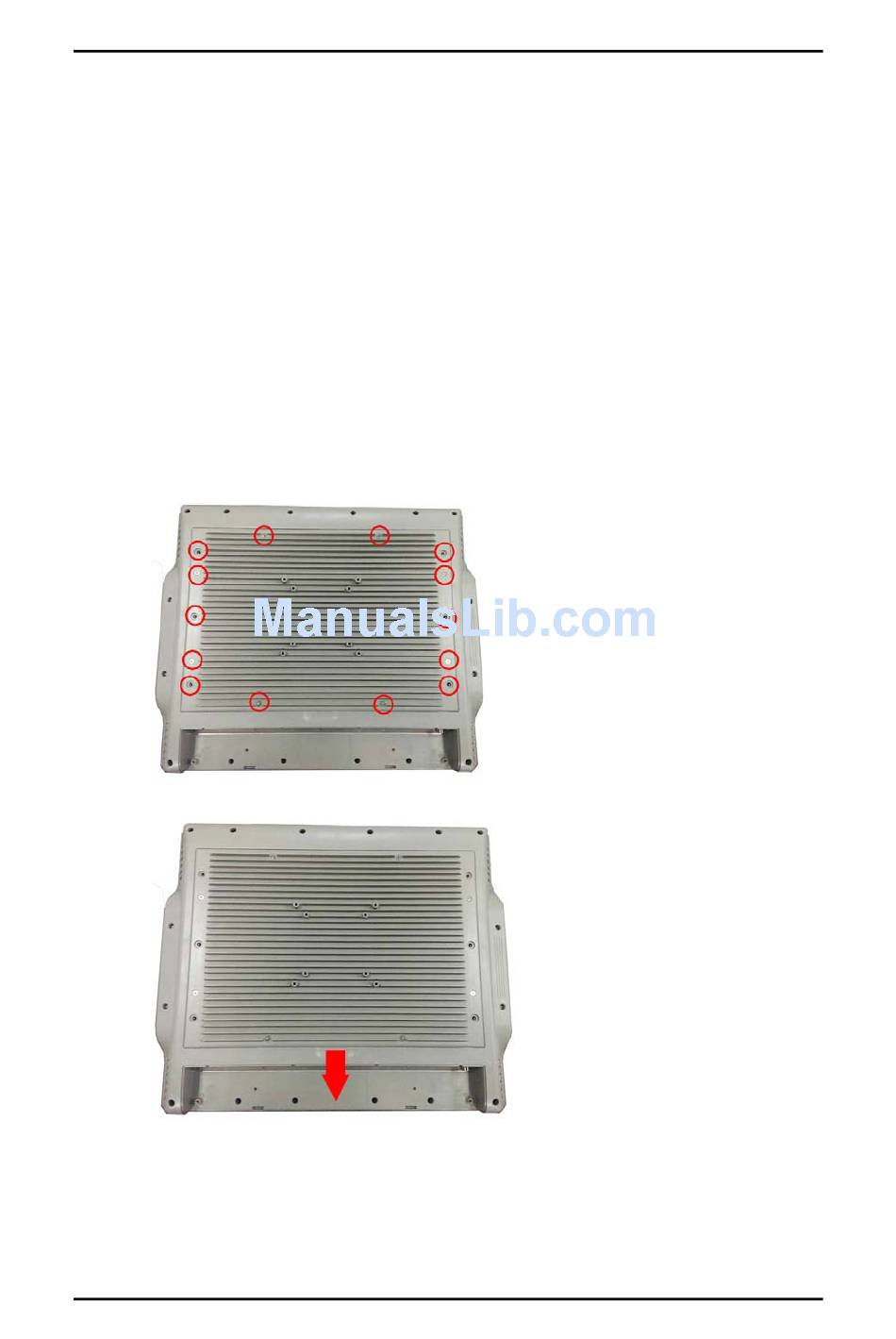

Locate and release these screws to open the back cover.
Step 3
Please open the back cover by lifting the joint part as marked.
Hardware Installation
IFO2175-873 Series User's Manual
HARDWARE INSTALLATION
CHAPTER 2
7
