IFO2175-873 Series Panel PC User's Manual

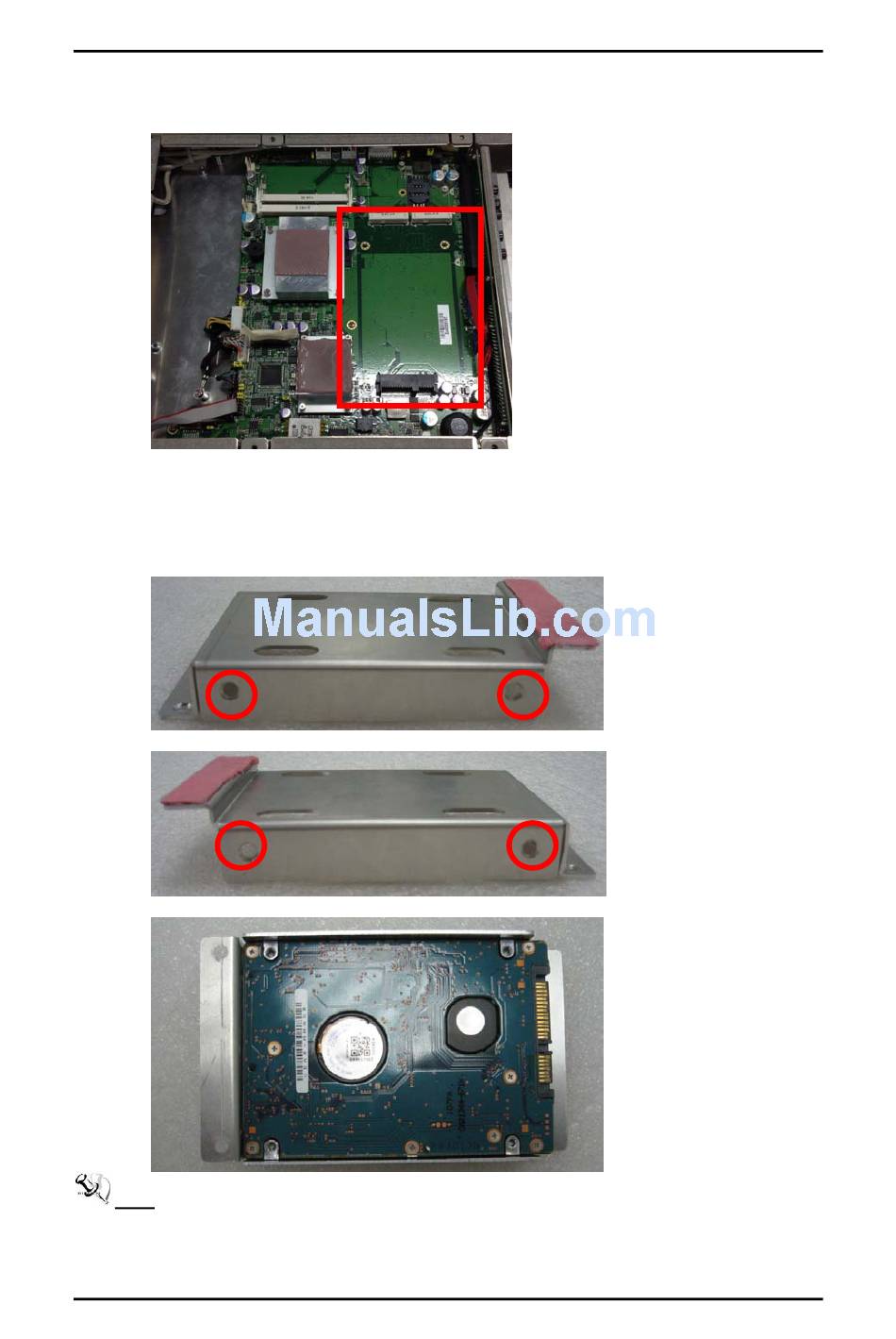

Step 4 Find the HDD bracket on accessory package and fine HDD socket on main board as
marked.
Step 5 Use assembly parts to fix HDD with the bracket.
1. HDD Bracket x1
2. 2.5 inch Hard-disk
3. Screw x 4
4. Fix four screw holes on the bracket, and assembly the HDD with the bracket.
Note
Please follow the direction of Hard-disk installation. "Hard-disk PCB faceup".
12
Hardware Installation
