4.3 Installing the 2.5" Hard Disk Drive

One enhanced Serial ATA (SATA) hard disk drive may be attached to the panel PC.
The following instructions are for installing the HDD:
1. Remove the rear cover as Figure 4.1.
2. Unfasten the screws and remove HDD bracket from system.(see Figure4.2)
3. Put HDD on HDD bracket and insert HDD cable on HDD(see Figure4.3), then
fasten 4 HDD screws on the opposite side(see Figure 4.4).

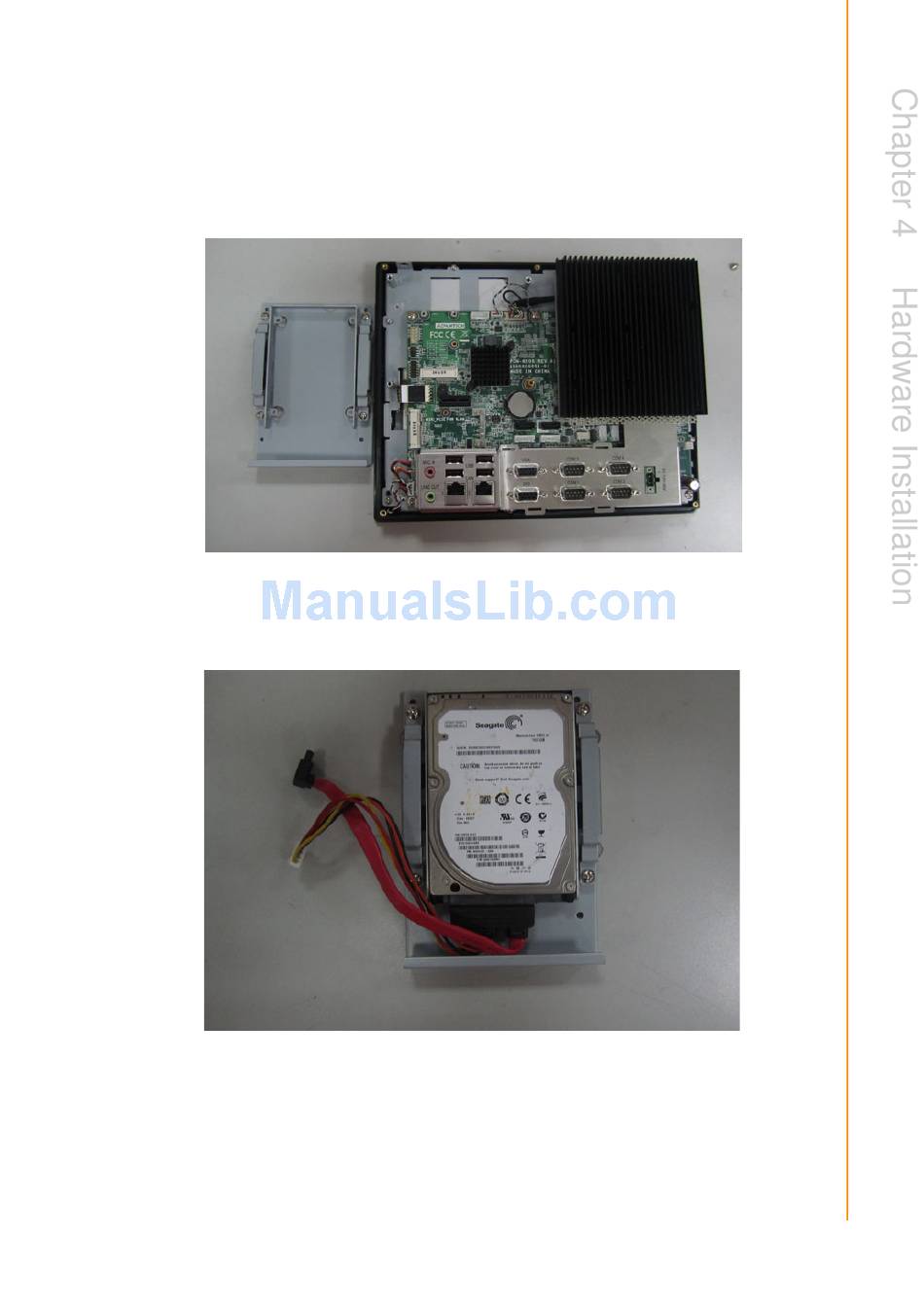

Figure 4.2 The PPC HDD
Figure 4.3 Insert SATA HDD Cable on HDD
17 PPC-3100 User Manual
