Advantech PPC-102 Manual

Advantech PPC-102 Manual

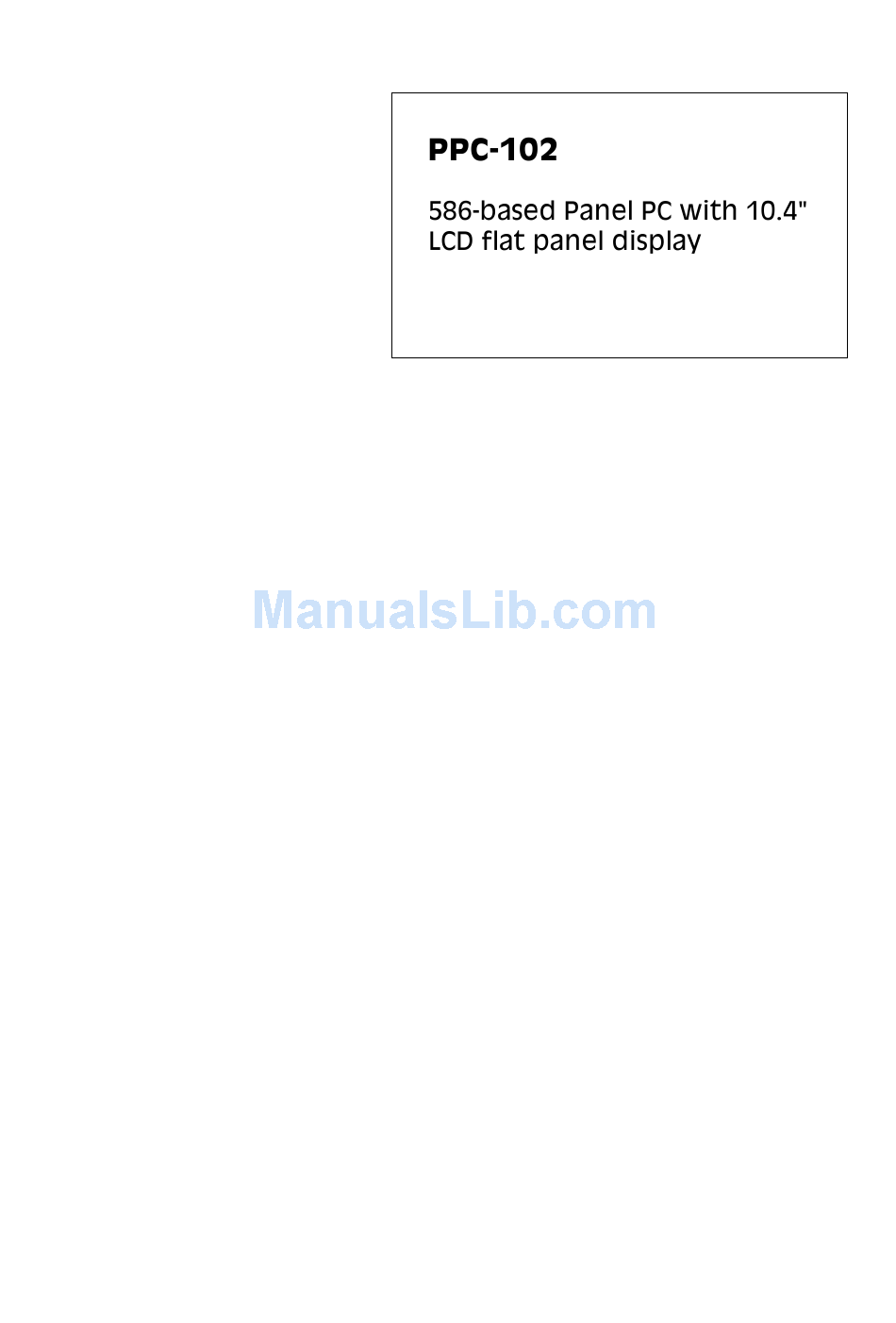

586-based panel pc with 10.4" lcd flat panel display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-102 and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech PPC-102

Summary of Contents for Advantech PPC-102

  • Page 2: Copyright Notice

    Copyright Notice This document is copyrighted, 1997, by Advantech Co. Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech.

  • Page 3: Packing List

    PPC-102’s housing, care must be taken to use the heat sink in the accessory box which will both cool the CPU and fit within the PPC-102. Thus you must buy a CPU without a fan attached.
  • Page 4 Additional Information and Assistance 1. Visit the Advantech Web site at www.advantech.com where you can find the latest information about the product. 2. Contact your distributor, sales representative, or Advantech's custom- er service center for technical support if you need additional assis- tance.

  • Page 5: Quick Start

    RS-232 COM3 IRQ = 10 COM3, COM4 IRQ enable (J21) COM4 IRQ = 5 LCD power (J13) Watchdog timer Watchdog timer invoke (J6) System reset ® 2000 DOC 2000 memory address (J7) D000 Table P-1: PPC-102 quick start jumper settings...

  • Page 6: Safety Instructions

    The sound pressure level at the operator's position according to IEC 704-1:1982 is equal to or less than 70 dB(A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
  • Page 7 - Wenn das Gerät deutliche Anzeichen eines Defektes aufweist. Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000 beträgt 70 dB(A) oder weiger. DISCLAIMER: This set of instructions is given according to IEC704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.

  • Page 8: Table Of Contents

    Contents Chapter 1: General Information ......... 1 Introduction ................. 2 Specifications ..............3 General ..................... 3 Standard PC functions ................3 Solid State Disk (SSD) ................4 PCI SVGA/flat panel interface ..............4 Audio function ..................4 PCI bus Ethernet interface ..............5 Touchscreen (optional) ................
  • Page 9 Exploded Diagram ............24 PCM-5865 and I/O Adapter Replacement ....... 25 Power Supply and Cooling Fan Replacement ....27 Chapter 3: The Engine of the PPC-102: the PCM-5865) ........29 Information on Jumpers and Connectors ...... 30 3.1.1 Setting jumpers ................30 3.1.2 Jumpers ..................
  • Page 10 3.6.1 Watchdog invoke selection (J6) ..........46 ® DiskOnChip 2000 Installation ......... 47 3.7.1 Installing a DOC 2000 into the socket ........47 ® 3.7.2 DOC 2000 memory address selection (J7) ....... 48 Touchscreen Connector ..........49 Chapter 4: Software Configuration ......51 Introduction ...............
  • Page 11 Driver Installation ............. 73 6.4.1 Windows setup ................74 6.4.2 DOS setup ..................75 Windows 95 Drivers Setup Procedure ......76 Windows NT Drivers Setup Procedure ......77 OS/2 Drivers Setup Procedure ........78 6.7.1 Preliminary steps ................78 6.7.2 Installing from diskette ..............78 6.7.3 Selecting monitor type ..............
  • Page 12 B.4 Mechanical Specifications ..........103 B.5 Environmental Specifications ........104 B.6 Features ................104 International standards ............... 104 Appendix C: I/O Pin Assignments ......107 Line-in terminal (CON8) ..............108 Keyboard connector (CON6-1) ............108 Mouse connector (CON6-2) ..............108 VGA connector (CON15) ..............
  • Page 13 Tables Table 1-1: PPC-102 series LCD specifications ..............6 Table 3-1: PCM-5865 jumpers and their functions ............31 Table 3-2: PCM-5865 connectors .................. 33 Table 3-3: PCM-5865 CPU speed reference table ............35 Table 3-4: PCM-5865 system/PCI clock setting ............35 Table 3-5: CPU frequency ratio (for Intel) ..............
  • Page 14 Figures Figure 1-a: PPC-102 panel PC dimensions ..............7 Figure 1-b: PPC-102 back panel I/O arrangement and cable ........... 8 Figure 1-c: PPC-102 panel mounting cutout dimensions ..........9 Figure 1-d: PPC-102 rear panel mounting brackets ............10 Figure 1-e: PPC-102 desktop stand ................

  • Page 15: Chapter 1: General Information

    General Information This chapter gives background information on the PPC-102. Sections include: • Introduction • Specifications • LCD Specifications • Dimensions • I/O Arrangement • Cutout (Suggestion) • Mounting...

  • Page 16: Introduction

    This simple, complete, compact and highly integrated multimedia system lets you easily build a panel PC into your applications. By incorporating the PPC-102 into your project, your product development time will be shortened. The PPC-102 is a compact, network-compatible PC with extensive features to control a dedicated system in a wide variety of applications.

  • Page 17: Specifications

    1.2 Specifications General • Disk drive housing: Space for one 2.5" HDD • Dimensions: 342 x 265 x 61.5 mm (W x H x D) • Weight: 2.7 kg • Power supply: 65 watts Input voltage: 100 V /2 A, 250 V /1A @ 47 ~ 63 Hz Output voltage: +5 V @ 5 A, +12 V @ 3 A (When power output is below 60 W, output voltage will be +5 V @ 8 A)

  • Page 18: Solid State Disk (Ssd)

    • Stereo sound: Full-duplex monophonic mode, half-duplex stereo mode • Audio interface: Microphone-in, Line-in, Speaker out • Power: Accepts +12 V source for improved audio quality * Note: The PPC-102 with the optionally installed touchscreen will share COM4. PPC-102 User's Manual...

  • Page 19: Pci Bus Ethernet Interface

    PCI bus Ethernet interface • Chipset: REALTEK RTL 8139 PCI local bus Ethernet controller • Ethernet interface: Full compliance with IEEE 802.3 100Base-T and 10Base-T specifications. Includes software drivers and boot ROM Touchscreen (optional) • Type: Analog resistive • Resolution: Continuous •...

  • Page 20: Lcd Specifications

    1.3 LCD Specifications Table 1-1: PPC-102 series LCD specifications Model PPC-102T PPC-102TB PPC-102S PPC-102M Display type 10.4" TFT 10.4" TFT 10.4" STN 10.4" mono (LCD) Toshiba Toshiba Kyocera Sharp LM64P89 LCD model LTM10C273 or LTM10C209A or KCB6448BSTT-X5 or compatibles compatibles...

  • Page 21: Dimensions

    1.4 Dimensions Unit: mm Figure 1-a: PPC-102 panel PC dimensions Chapter 1 General Information...

  • Page 22: I/O Arrangement

    VGA port j. Power switch e. External IDE port k. AC inlet f. Four serial COM ports * Three RS-232 (COM1, 3, 4) and one RS-232/422/485 (COM2) Figure 1-b: PPC-102 back panel I/O arrangement and cable connections PPC-102 User's Manual...

  • Page 23: Cutout (Suggestion)

    1.6 Cutout (Suggestion) The PPC-102 will stand on a shelf or a table, or you can mount it into a panel. Cutout panel dimensions are as follows: Cutout for panel mount Unit: mm Figure 1-c: PPC-102 panel mounting cutout dimensions...

  • Page 24: Mounting

    1.7 Mounting 1.7.1 Panel mounting If you decide to use a cutout within a panel to mount your PPC-102, we have included two panel-mount brackets. The brackets have two screws that fit in the keyhold slots on the panel PC.

  • Page 25: Desktop Stand (Optional)

    1.7.2 Desktop stand (optional) An optional stand is available for mounting the PPC as a desktop PC. The PPC-102 slides into the stand and is held in place by the screws provided. The compactness of the desktop-mounted PPC-102 saves desk space.

  • Page 26: Wall-Mounting (Optional)

    1. The wall-mounting attachment is comprised of three parts: one back bracket, one support bracket, and one mounting bracket. 2. First attach the back bracket to the rear cover of the PPC-102, securing it in place with four of the philips-head screws provided.

  • Page 27: Chapter 2: System Setup

    System Setup • General • Removing Rear Panel • Installing Options • Installing I/O Equipment • Installing Software to the HDD • Exploded Diagram • PCM-5865 and I/O Adapter Replacement • Power Supply and Cooling Fan Replacement...

  • Page 28: General

    2.1 General The PPC-102 consists of a PC-based industrial computer that is housed in a protective cover. Your HDD, DRAM, power supply and CPU are all readily accessible by removing the rear panel. Any maintenance or hardware upgrades can be carried out easily after removing the rear panel.

  • Page 29: Removing Rear Panel

    2.2 Removing Rear Panel Unscrew the eleven screws that secure the rear cover, then remove the cover. Figure 2-a: Removing the PPC-102's rear panel Chapter 2 System Setup...

  • Page 30: Installing Options

    2.3.1 Installing a primary 2.5" HDD (internal) You can attach one enhanced Integrated Device Electronics (IDE) hard disk drive to the PPC-102's internal controller which uses a PCI local-bus interface. The advanced IDE controller supports faster data transfer rates and allows the IDE hard drive to exceed 528 MB. The following are instructions for installation: 1.

  • Page 31: Figure 2-B: Installing A Hard Disk Drive

    Figure 2-b: Installing a hard disk drive Chapter 2 System Setup...

  • Page 32: Installing A Cpu

    2.3.2 Installing a CPU The PPC-102's CPU (Central Processing Unit) can be upgraded to improve system performance. The PPC-102 provides one 321-pin ZIF (Zero Insertion Force) socket which is backward compatible with ZIF socket 5 processors. The CPU must come with an attached heatsink to prevent overheating;...

  • Page 33: Installing Dram (Simms)

    6. You must set jumpers including the those for the CPU, clock (J15, J4), frequency ratio (J8), voltage (J14), and P54C/P55C selection setting (J10). 7. To remove a CPU, pull the lever out to the side a little and raise it as far as it will go.

  • Page 34: Installing I/O Equipment

    45 cm in length is incorporated in the accessory box. 2.4.2 Installing an FDD Up to two floppy drives can be attached to the PPC-102's I/O controller. Any combination of 5¼" (360 KB and 1.2 MB) and/or 3½" (720 KB, 1.44 MB, and 2.88 MB) drives can be attached.

  • Page 35: Parallel Port Connection

    BIOS setup. 2.4.4 PS/2 keyboard and PS/2 mouse The PPC-102 provides a PS/2 keyboard connector that supports a PS/2 style keyboard and a 5-pin DIN keyboard extension cable. In most cases, especially in embedded applications, a keyboard is not used. The standard PC/AT BIOS will report an error or failure during power-on self-test (POST) after a reset if the keyboard is not present.

  • Page 36: External Vga

    R pin of the CD-ROM's Line-out port. 2.4.6 External VGA The PPC-102 can be connected to an external CRT monitor. To connect an external CRT monitor, connect the monitor's VGA cable to the PPC-102's VGA port and connect the monitor's power cable to an AC outlet.

  • Page 37: Ethernet

    2.5.3 Method 3: Use the COM or parallel port You can use Lap Link 6 or similar transmission software. Connect another PC to the PPC-102 with an appropriate cable and transmit the software to the PPC-102. 2.5.4 Method 4: Use a 3.5" HDD or CD-ROM Please refer to Section 2.4.1 "Installing one secondary HDD/CD-ROM...

  • Page 38: Exploded Diagram

    2.6 Exploded Diagram This diagram shows all the components and parts that make up the PPC-102. Use it as a guide when assembling and disassembling your system. Figure 2-c: PPC-102 exploded diagram PPC-102 User's Manual...

  • Page 39: Pcm-5865 And I/O Adapter Replacement

    5. Some screws on your left hand side connect the I/O adapter to the PC, and also connect the adapter to the PCM-5865. Screw the screws into the panel. Figure 2-d: Installing/removing the PCM-5865 in the PPC-102 Chapter 2 System Setup...

  • Page 40: Figure 2-E: Installing/Removing The I/O Adapter In The Ppc-102

    You may change the jumper settings for RS-232/422/485 before install- ing the I/O adapter. Figure 2-e: Installing/removing the I/O adapter in the PPC-102 PPC-102 User's Manual...

  • Page 41: Power Supply And Cooling Fan Replacement

    2.8 Power Supply and Cooling Fan Replacement To service or replace the power supply and/or the cooling fan, the back cover must first be removed. Warning: Power cables must be detached before you attempt to repair the power supply. 1. Disconnect the power cables and remove the four screws to detach the power supply from the panel PC.

  • Page 42: Figure 2-G: Replacing The Cooling Fan

    Figure 2-g: Replacing the cooling fan PPC-102 User's Manual...

  • Page 43: Chapter 3: The Engine Of The Ppc-102: The Pcm-5865)

    The Engine of the PPC-102: the PCM-5865 This chapter explains how to set up the PCM-5865 hardware, including instructions on setting jumpers and connecting peripherals, switches and indicators. Be sure to read all the safety precautions before you begin the installation procedure.

  • Page 44: Information On Jumpers And Connectors

    A pair of needle-nose pliers may be helpful when working with jumpers. If you have any doubts about the best hardware configuration for your application, contact your local distributor or sales representative before you make any changes. Generally, you simply need a standard cable to make most connections. PPC-102 User's Manual...

  • Page 45: Jumpers

    LCD power setting CPU core voltage setting SYS/PCI clock setting COM4 RI output setting COM3 RI output setting COM2 RS-232/422/485 setting COM2 RS-232/422/485 setting COM2 RS-232/422/485 setting COM3, COM4 IRQ enable Chapter 3 The Engine of the PPC-102: the PCM-5865...

  • Page 46: Locating Jumpers

    J13: LCD power setting J14: CPU core voltage setting J15: SYS/PCI clock setting J16: COM4 RI output J17: COM3 RI Output J21: COM3, COM4 IRQ enable J18/J19/J20: COM2 RS-232/422/485 setting Figure 3-a: Locating jumpers on the PCM-5865 PPC-102 User's Manual...

  • Page 47: Connectors

    Primary IDE drive connector Main power connector Fan power connector Floppy drive / secondary IDE drive connector Flat panel display (LCD) connector I/O connector (A) I/O connector (B) Aux. power connector Chapter 3 The Engine of the PPC-102: the PCM-5865...

  • Page 48: Locating Connectors

    CN4: Floppy drive/ CN3: Fan secondary IDE power drive connector connector CN5: Flat panel display (LCD) connector CN8: Auxiliary power connector CN6: I/O CN7: I/O connector (A) connector (B) Figure 3-b: Locating connectors on the PCM-5865 PPC-102 User's Manual...

  • Page 49: Cpu Installation And Upgrading

    (below) for instructions on adjusting the internal clocks according to the base CPU speed. CPU Speed (MHz) *166 Clock setting Frequency ratio * default setting System 50MHz 60MHz *66MHz 75MHz 33.3MHz 30MHz *33.3MHz 32MHz Chapter 3 The Engine of the PPC-102: the PCM-5865...
  • Page 50 CPU for single voltage CPU PPC-102 User's Manual...

  • Page 51: Cpu Core Voltage Setting (J14)

    2.8 V 2.9 V 3.0 V 3.1 V 3.2 V 3.3 V 3.4 V 3.5 V 3.6 V * default setting 2.8 V: Figure 3-c: PCM-5865 CPU voltage setting jumper (J14) Chapter 3 The Engine of the PPC-102: the PCM-5865...

  • Page 52: M1 Cache Linear Mode Setting (J3)

    3.2.4 CMOS clear (J2) Warning: To avoid damaging the computer, always turn off the power supply before setting “Clear CMOS.” Set the jumper back to “3.6 V Battery On” before turning on the power supply. * default setting PPC-102 User's Manual...

  • Page 53: Power Connectors (Cn3, Cn2)

    3.3.2 Fan power supply connector (CN3) This provides power supply to the cooling fan which is located on the rear cover of the PPC-102. It is only present when +5 V and +12 V power is supplied to the board.

  • Page 54: Com-Port Interface

    The PCM-5865 provides four serial ports (COM1, 3, 4: RS-232; COM2: RS-232/422/485). 3.4.1 COM2 RS-232/422/485 setting (J18, J19, J20) COM2 can be configured to operate in RS-232, RS-422, or RS-485 mode. This is done via J18, J19 and J20. * default setting PPC-102 User's Manual...

  • Page 55: Com3/Com4 Irq Enable (J21)

    COM3 and COM4 are designed to use IRQ10 and IRQ5 by default. If you are using COM3 or COM4 with no need for interrupt, the IRQ of COM3 or COM4 can be released to other peripherals by setting J21. Chapter 3 The Engine of the PPC-102: the PCM-5865...

  • Page 56: Com3/Com4 Ri Pin Setting (J17, J16)

    COM3 and COM4 can supply +5 V or +12 V power to the serial devices via the RI pins of the COM port connector. The outputs of the COM3 and COM4 RI pins are selected by setting J17 and J16 respectively. * default setting PPC-102 User's Manual...

  • Page 57: Vga Interface

    (/ENVEE) is active low. When the PCM-5865’s power is applied, the control signal is low until just after the relevant flat panel signals are present. Refer to Section 4.4 for CN5's pin assignment. Chapter 3 The Engine of the PPC-102: the PCM-5865...

  • Page 58: Lcd Power Setting (J13)

    Refer to Chapter 4 for details on connecting the four standard LCDs: Sharp LM64P89, Toshiba LTM10C209A, Toshiba LTM10C273 and Kyocera KCB6448BSTT-X5. 3.5.4 LCD back light connector (J1) The LCD's back light inverter supplies power through this connector. Function +12 V BLANK* * active low PPC-102 User's Manual...

  • Page 59: Vee Control (J5)

    You can find the I/O arrangement in Section 1.5. All input and output connectors come from CN6 and CN7 through the I/O PC board to connect all the cables of the PPC-102's peripherals. Chapter 3 The Engine of the PPC-102: the PCM-5865...

  • Page 60: Watchdog Timer Configuration

    3.6.1 Watchdog invoke selection (J6) When the watchdog timer activates (CPU processing has come to a halt), it can reset the system or generate an interrupt on IRQ15. This can be set via jumper J6 as shown below: * default setting PPC-102 User's Manual...

  • Page 61: Diskonchip ® 2000 Installation

    Warning: The DiskOnChip 2000's socket cannot be used to install solid state disks made by SanDisk Corporation, be- cause the PPC-102's BIOS cannot support them. If you want to install SanDisk's SSD, you must use the IDE port. Chapter 3 The Engine of the PPC-102: the PCM-5865...

  • Page 62: 2000 Memory Address Selection (J7)

    J7 will be changed for this Flash memory address selection. C8000 CC00 *D000 D400 D800 DC00 E000 disable * default setting ® For additional DOC 2000 instructions, please refer to the DOC 2000 Installation Guide. PPC-102 User's Manual...

  • Page 63: Touchscreen Connector

    The PCM-5865's touchscreen interface supports V and GND for touchscreen power consumption. Function As described in the PPC-102's specifications, the PPC-102, with the optionally installed touchscreen, will share COM4. J12 is for the touch- screen COM port's pin assignment. Function...
  • Page 64 PPC-102 User's Manual...

  • Page 65: Chapter 4: Software Configuration

    Software Configuration This chapter details the software configuration information. It shows you how to configure the card to match your application requirements. Award system BIOS is covered in Chapter 5. Sections include: • Introduction • Utility Disk • VGA Display Software Configuration •...

  • Page 66: Introduction

    The display BIOS is changed by reprogramming the Flash chip for different display usages. 4.2 Utility Disk The PPC-102 is supplied with a software utility disk in the accessory box. Root Audio BT1868...

  • Page 67: Connections For Four Standard Lcds

    4.4 Connections for Four Standard LCDs Connections to Sharp LM64P89 (640 x 480 mono LCD) Pin name Pin name CN1-1 CN1-2 CN1-3 SHFCLK CN1-4 DISP +5 V CN1-5 +5 V CN1-6 CN1-7 external power* CN1-8 CN1-9 CN1-10 DU2 CN1-11 DU3 CN1-12 DL0 CN1-13 DL1 CN1-14 DL2...

  • Page 68: Connections To Kyocera Kcb6448Bstt-X5 (640 X 480 Stn Lcd)

    CN1-11 CN5-17 CN1-12 CN5-12 CN1-13 CN5-11 CN1-14 CN5-10 CN1-15 CN5-09 CN2-1 CN5-24 CN2-2 CN5-23 CN2-3 CN5-22 CN2-4 CN5-21 CN2-5 CN5-16 CN2-6 CN5-15 CN2-7 CN5-14 CN2-8 CN5-13 CN2-9 CN5-05 CN2-10 CN5-03 CN2-11 CN2-12 CN2-13 CN2-14 VCONT CN5-07 VEESAFE PPC-102 User's Manual...

  • Page 69: Connections To Toshiba Ltm10C273 (800 X 600 Tft Color Lcd)

    Connections to Toshiba LTM10C273 (800 x 600 TFT color LCD) Pin Name Pin Name CN1-1 CN5-39 CN1-2 CN5-35 SHFCLK CN1-3 CN5-34 CN1-4 CN5-27 CN1-5 CN5-28 CN1-6 CN5-29 CN1-7 CN5-33 CN1-8 CN5-30 CN1-9 CN5-31 CN1-10 CN5-32 CN1-11 CN5-33 CN1-12 CN5-19 CN1-13 CN5-20 CN1-14 CN5-21...

  • Page 70: Connections To Toshiba Ltm10C209A (640 X 480 Tft Color Lcd)

    CN5-22 CN1-17 CN5-23 CN1-18 CN5-24 CN1-19 CN5-8 CN1-20 ENAB CN5-37 M/DE CN1-21 CN5-4 CN1-22 CN5-11 CN1-23 CN5-12 CN1-24 CN5-13 CN1-25 CN5-4 CN1-26 CN5-14 CN1-27 CN5-15 CN1-28 CN5-16 CN1-29 CN5-3 CN1-30 CN5-5 +5 V CN1-31 CN5-6 +5 V PPC-102 User's Manual...

  • Page 71: Ethernet Software Configuration

    To configure the medium type, to view the current configuration, or to run diagnostics, do the following: 1. Power the PPC-102 on. Ensure that the RSET8139.EXE file is located in the working drive. 2. At the prompt type RSET8139.EXE and press <Enter>. The Ethernet configuration program will then be displayed.
  • Page 72 PPC-102 User's Manual...

  • Page 73: Chapter 5: Award Bios Setup

    Award BIOS Setup This chapter describes how to set BIOS configuration data. • System Test and Initialization • Award BIOS Setup...

  • Page 74: System Test And Initialization

    3. The CMOS memory has lost power and the configuration information has been erased. The PPC-102’s CMOS memory has an integral lithium battery backup. The battery backup should last ten years in normal service, but when it finally runs down, you will need to replace the complete unit.

  • Page 75: Award Bios Setup

    5.2 Award BIOS Setup Award’s BIOS ROM has a built-in setup program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the setup information when the power is turned off. 5.2.1 Entering setup Power on the computer and press <Del>...

  • Page 76: Standard Cmos Setup

    This standard setup menu allows users to configure system components such as date, time, hard disk drive, floppy drive and display. Once a field is highlighted, on-line help information is displayed at the bottom of the menu screen. Figure 5-b: CMOS setup screen PPC-102 User's Manual...

  • Page 77: Bios Features Setup

    5.2.3 BIOS features setup By choosing the BIOS FEATURES SETUP option from the INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the PCM-5865. Figure 5-c: BIOS features setup Chapter 5 Award BIOS Setup...

  • Page 78: Chipset Features Setup

    5.2.4 Chipset features setup By choosing the CHIPSET FEATURES SETUP option from the INI- TIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the PCM-5865. Figure 5-d: BIOS chipset features setup PPC-102 User's Manual...

  • Page 79: Power Management Setup

    5.2.5 Power management setup By choosing the POWER MANAGEMENT SETUP option from the INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the PCM-5865. Figure 5-e: Power management setup Chapter 5 Award BIOS Setup...

  • Page 80: Pnp/Pci Configuration

    5.2.6 PnP/PCI configuration By choosing the PnP/PCI CONFIGURATION option from the INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the PCM-5865. Figure 5-f: PnP/PCI configuration PPC-102 User's Manual...

  • Page 81: Integrated Peripherals

    5.2.7 Integrated peripherals By choosing the INTEGRATED PERIPHERALS option from the INITIAL SETUP SCREEN menu, the screen below is displayed. This sample screen contains the manufacturer’s default values for the PCM-5865. Figure 5-g: Integrated peripherals Chapter 5 Award BIOS Setup...

  • Page 82: Load Bios Defaults

    LOAD BIOS DEFAULTS loads the default system values directly from ROM. If the stored record created by the setup program becomes corrupted (and therefore unusable), these defaults will load automatically when you turn the PCM-5865 on. Figure 5-h: Load BIOS defaults screen PPC-102 User's Manual...

  • Page 83: Change Password

    5.2.9 Change password To change the password, choose the PASSWORD SETTING option form the setup main menu and press <Enter>. 1. The screen will display the following message: Enter Password: Press <Enter>. 2. If the CMOS is good or this option has been used to change the default password, the user is asked for the password stored in the CMOS.

  • Page 84: Auto Detect Hard Disk

    This record is required for the system to operate. 5.2.12 Exit without saving Selecting this option and pressing <Enter> lets you exit the setup program without recording any new values or changing old ones. PPC-102 User's Manual...

  • Page 85: Chapter 6: Pci Svga Setup

    PCI SVGA Setup The PPC-102 features an on-board PCI flat panel/VGA interface. This chapter provides instructions for installing and operating the software drivers on the included display driver diskette. • Before You Begin • Installation • Simultaneous Display Mode • Driver Installation •...

  • Page 86: Before You Begin

    The enhanced display drivers for the PPC-102 board are located on the software installation diskette. You must install the drivers and utility software by using the supplied SETUP program for DOS drivers.

  • Page 87: Simultaneous Display Mode

    (i.e. MDA, CGA, and EGA) are NOT supported. Multiple frequency (multisync) monitors are supported as analog monitors. Both CRT and panel displays can be used simultaneously. The PPC-102 can be set in one of three configurations: on a CRT, on a flat panel display, or on both simultaneously.

  • Page 88: Windows Setup

    To change the color scheme, select the Control Panel from the Main window. Select the Color icon. You will be shown the current color scheme. Choose a new color scheme and click the OK button. PPC-102 User's Manual...

  • Page 89: Dos Setup

    6.4.2 DOS setup Step 1: Install Windows as you normally would for a VGA display. Run Windows to make sure that it is working correctly. Then exit Windows. Step 2: Place the display driver diskette in drive A. Type A: <ENTER> to make this the default drive.

  • Page 90: Windows 95 Drivers Setup Procedure

    1. Boot system with VGA or SuperVGA driver. 2. Select properties from a menu after right button press. 3. Select display. 4. Select Change Display. 5. Select Change Monitor. 6. Select Change Adapter. 7. Select Have Disk. PPC-102 User's Manual...

  • Page 91: Windows Nt Drivers Setup Procedure

    6.6 Windows NT Drivers Setup Procedure 1. Install Windows NT as you normally would for a VGA display. 2. First click the Start button, choose Settings and click on Control Panel. 3. Choose the Display icon and click on the icon. 4.

  • Page 92: Os/2 Drivers Setup Procedure

    When the Setup Program is completed, you will need to perform a shutdown and then restart the system in order for changes to take effect. A log of the information output during the installation can be found in <root>:\OS2\INSTALL\DISPLAY.LOG PPC-102 User's Manual...
  • Page 93 4. After restarting the system, perform the following steps: 1) Open the OS/2 System folder. 2) Open the System Setup folder. 3) Open the Display Driver Install object. This step will execute the Display Driver Installation (DSPINSTL) utility program to finish installation of the new drivers. 4) When the Display Driver Install window appears, select Primary Display and then select OK.

  • Page 94: Selecting Monitor Type

    Please note, refresh rates, other than 60 Hz, are only valid when the display is switched to CRT only display mode. 5. Close the System-Settings notebook. 6. Perform a shutdown and restart for the changes to take effect. PPC-102 User's Manual...

  • Page 95: Installation Notes

    6.7.5 Installation notes 1. During the installation of this driver, DISPLAY.LOG and DSPINSTL.LOG files are created in the \OS2\INSTALL directory. These files identify the OS/2 system files that were updated, and indicate whether the installation was successful. The DISPLAY.LOG file also contains a string that identifies the version of driver that was installed.
  • Page 96 PPC-102 User's Manual...

  • Page 97: Chapter 7: Audio Setup

    Audio Setup The PPC-102 is equipped with an audio interface that records and plays back CD-quality audio. This chapter provides instructions for installing the software drivers on the included audio driver diskettes. • Introduction • DOS Utilities • Driver Installation...

  • Page 98: Introduction

    ESS Technology, Inc. The audio interface can record, compress, and play back voice, sound, and music with built-in mixer control. The PPC-102 on board audio interface also supports the Plug and Play (PnP) standard and provides PnP configuration for the audio, FM and MPU-104 logical devices.
  • Page 99 The ES1868 audio controller provides software control of the setting of audio volume. The VOLUME CONTROL utility located in the UTILITY subdirectory of the audio driver diskette is used to control the volume setting in DOS. To control the volume setting, simply type ESSVOL at the DOS prompt with appropriate parameters.

  • Page 100: Driver Installation

    To facilitate the installation of the audio drivers, you should read the instructions in this chapter carefully before you attempt installation. The audio drivers for the PPC-102 board are located on the audio driver diskettes. You must install the drivers by using the supplied SETUP program.

  • Page 101: Windows 95 Drivers

    7.3.3 Windows 95 drivers 1. Boot your system and place the audio driver diskette in drive A. 2. Select Add New Hardware from the Windows Control Panel. 3. Click Next to bring up the Windows search for a new hardware setup screen.
  • Page 102 PPC-102 User's Manual...

  • Page 103: Chapter 8: Touchscreen (Optional)

    Touchscreen (Optional) • General Information • Specifications • Environmental Specifications • Driver Installation...

  • Page 104: General Information

    8.1 General Information Figure 8-a: PPC-102 optional touchscreen exploded diagram • 75% light transmission • Advanced second-generation 5-wire resistive technology • Enhanced visual resolution, antiglare surface treatment • Enhanced scratch-resistant hard coat • Accutouch touchscreens are UL-recognized components (file no.

  • Page 105: Specifications

    8.2 Specifications • Light transmission: Typically 75% at 550 nanometer wavelength, optimized for flat-panel displays. All measurements per ASTM D 10036-61 • Visual resolution: Antiglare: 6:1 minimum. Measured according to USAF 1951 Resolution Chart, under 30x magnification, with test unit located approximately 3.8 mm (1.5") from surface of resolution chart •...

  • Page 106: Driver Installation

    To facilitate the installation of the touchscreen drivers, you should read the instructions in this chapter carefully before you attempt installation. 8.4.1 Touchscreen driver for DOS This disk contains DOS and Windows drivers for the PPC-102’s touch- screen, a demo program, and diagnostic and utility programs. This disk ™...

  • Page 107: Touchscreen Driver For Windows 95

    8.4.2 Touchscreen driver for Windows 95 1. Install the touchscreen hardware in the PPC-102 and configure the touchscreen to resources (COM port, IRQ, etc.) that are not already in use by other devices. 2. Start your computer. 3. Insert the "Touchscreen Driver for Windows 95" disk or CD into drive A or D.
  • Page 108 Click Run, then type “regedit” and press Enter. (c:\windows\regedit") 4. Edit the values of the following registry keys in the following registry key folder to match the number, I/O port address, and IRQ of the COM port to which the touchscreen is connected: 94 PPC-102 User's Manual...
  • Page 109 HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\VxD\ MonMouse\TouchScreen00 \ComPort (the COM port number) Com 4 example: \ControllerAddress (low byte followed by high byte) Com 4 example: \ControllerIRQ (hexidecimal) 5. Close the Registry Editor by clicking the Close box. 6. Restart the computer. Removing the mouse pointer If you wish to eliminate the touchscreen driver, you may replace it with the null cursor file, NULL.CUR, supplied with "Touchscreen Driver for Windows 95".

  • Page 110: Touchscreen Driver For Windows Nt

    8.4.3 Touchscreen driver for Windows NT 1. Make sure you have installed the touchscreen hardware in the PPC-102 (assuming you have purchased the PPC-102 with touch- screen) and configured the touchscreen to resources (COM port, IRQ, etc.) that are not already in use by other devices.
  • Page 111 Windows NT auto boot Windows NT normally displays the system logon dialog when started. Use the following procedure to disable the display of the logon dialog and automatically start up without user intervention. 1. Run REGEDT32.EXE. 2. Locate the Registry subkey: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon.
  • Page 112 4. Type “null.cur” in the space provided and select Open. 5. Select OK to select the option. 6. Exit from the Mouse Control Panel. You should notice that the arrow cursor has disappeared. Note that all other cursors will still function as before. 98 PPC-102 User's Manual...

  • Page 113: Appendix A: Programming The Watchdog Timer

    Programming the Watchdog Timer The PPC-102 is equipped with a watchdog timer that resets the CPU or generates an interrupt if processing comes to a standstill for whatever reason. This feature ensures system reliability in industrial stand-alone or unmanned environments.

  • Page 114: Programming The Watchdog Timer

    GOSUB 2000 REM Your application task #2 OUT &H443, data REM Reset the timer X=INP (&H043) REM Disable the watchdog timer 1000 Subroutine #1, you application task 1070 RETURN 2000 Subroutine #2, you application task 2090 RETURN PPC-102 User's Manual...

  • Page 115: Appendix B: Power Supply Specifications

    Power Supply Specifications • Introduction • Input Specifications • Output Specifications • Mechanical Specifications • Environmental Specifications • Features...

  • Page 116: Introduction

    B.1 Introduction The power supply of the PPC-102 is a 60 W double output, universal input switching power supply. It has been designed for medical technolo- gy applications. B.2 Input Specifications • Input voltage: 85 V to 264 V •...

  • Page 117: Mechanical Specifications

    4 . 0 T Y P . M O U N T I N G H O L E S * 4 Unit: mm T O C H A S S I S G R O U N D I N G Figure B-a: PPC-102 dimensions diagram Dimensions: Shown in mm as above. Tolerance specified is ± 0.4 mm. Connectors: TB1 - AC input: Using Molex 5277-02A or equivalent.

  • Page 118: Environmental Specifications

    Designed to meet the following standards: • UL 544 • CSA 22.2 NO.601 • TUV (DIN. VDE 0750T.1/12.91/EN 60601-1:1990) EMI standards: Designed to met the following limits: • FCC docket 20780 curve "B" • EN55011 "B" • EN61000-3-2 PPC-102 User's Manual...
  • Page 119 EMS standards: • IEC-801-2 8: kV air discharge criteria B • IEC-801-3 3: • IEC-801-4: 0.5 kV Appendix B Power Supply Specifications...
  • Page 120 PPC-102 User's Manual...

  • Page 121: Appendix C: I/O Pin Assignments

    I/O Pin Assignments...

  • Page 122: Line-In Terminal (Con8)

    Line-in terminal (CON8) Signal XMT+ XMT- RCV+/- Keyboard connector (CON6-1) Signal KB_DT +5 V KB_CK Mouse connector (CON6-2) Signal MS_DT +5 V MS_CK PPC-102 User's Manual...

  • Page 123: Vga Connector (Con15)

    VGA connector (CON15) Signal GREEN BLUE HSYNC VSYNC COM1 RS-232 serial port (CON9-1) Signal Appendix C I/O Pin Assignments...

  • Page 124: Com3 Rs-232 Serial Port (Con9-2)

    COM3 RS-232 serial port (CON9-2) Signal COM4 RS-232 serial port (CON9-3) Signal PPC-102 User's Manual...

  • Page 125: Com2 Rs-232/422/485 Serial Port (Con9-4)

    COM2 RS-232/422/485 serial port (CON9-4) RS-232 RS-422 RS-485 In a typical RS-485 application, the host device requests data from a slave module that listens for the response. The host transmits and receives data on the same pair of wires. Software handles the flow control; no other wires are needed.

  • Page 126: J9 Speaker Out

    J9 Speaker out Parallel port connector (CON25) * active low PPC-102 User's Manual...

Table of Contents
