- Page 1 PC/CV/SV Video System Overlay Processor # 15195 Operation Manual...

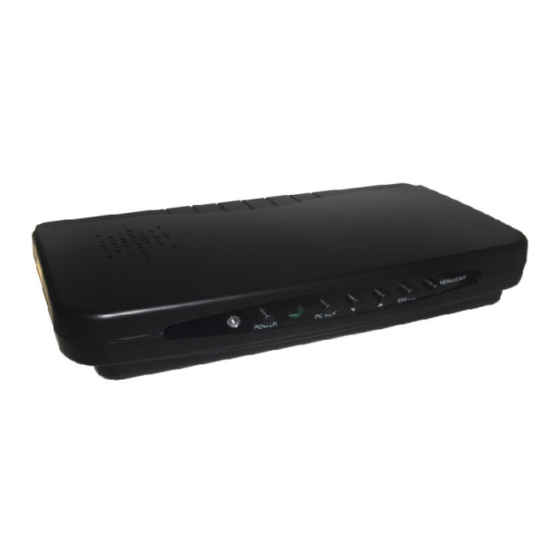

- Page 2 Introduction The PC to Video overlay system is designed to overlay PC/ Graphics signal onto Video signal or vise versa. Moreover, it can convert a variety of VGA sources to Video signal. It is idea for using in applications like video conference, home theater, business presentation and lecturing room.
-
Page 3: Video/S-Video Input
Operation Controls and Functions The following sections describe the hardware components of the unit. Front Panel POWER LED INDICATOR The LED will illuminate when power is on. POWER Press to power on the system, press again to turn the system to standby. - Page 4 such as DVD player or set-top-box. VIDEO/S-VIDEO OUTPUT Connect the Video/S-Video output port to the display. DC 5V Plug the 5V DC power supply into the splitter and connect the adaptor to AC wall outlet. Remote Press to turn ON/OFF the OSD on the display.
- Page 5 RS-232 Protocol Press once to reset current setting values back to factory default value RS-232 IN RS-232 OUT Assignment Assignment Baud Rate: 9600 bps Data bit: 8-bit Parity: None Stop Bit: 1 Flow Control: None Command Description Power1 power on(normal) Power0 power off(standby) Key0...
- Page 6 System3 output video system :PALM System4 output video system :PALN System5 output video system :SECAM OSD1 OSD off OSD2 OSD on Display0 Display off Display1 Display on Display2 Display info Zoom0 PC ZOOM off Zoom1 PC ZOOM position 1 Zoom2 PC ZOOM position 2 Zoom3 PC ZOOM position 3...
- Page 7 [CVDETAIL10] PCCONTx PC Contrast x=0~63 PCBRIGHTx PC Brightness x=0~63 PCCOLORx PC Color x=0~63 PCHUEx PC Tint x=0~63 PCDETAILx PC Sharpness x=0~63 PCRESET PC adjustment reset [PCCONT58] [PCBRIGHT31] [PCCOLOR31] [PCHUE31] [PCDETAIL10] PCHSIZEx PC H Size x=0~63 PCVSIZEx PC V Size x=0~63 PCHPOSx PC H Position x=0~63 PCVPOSx...
- Page 8 [PCDETAIL?] [PCHSIZE?] [PCVSIZE?] [PCHPOS?] [PCVPOS?] [PCPHASE?] [KEYPHASE?] [KEYLEVEL?] [RMCODE?] All RS-232 command will be not executed unless followed with a carriage return. Zoom functions are for PC input only Osd menu and Function list Main Menu 2nd Layer PC PICTURE CONTRAST (0~63): Default 58 BRIGHT (0~63): Default 31 COLOR (0~63): Default 31...
- Page 9 KEY ADJUST KEY LEVEL (0~63): Default 31 CHROMA KEY: (RED/BLACK/BLUE/ GREEN RESET Exit SETUP OUTPUT: PC IN/VIDEO IN/PC KEY/ MIXER CV SYSTEM: NTSC/NTSC4.43/PAL/ PAL-M/PAL-N/ SECAM PC ZOOM: 1 ~9/OFF DISPLAY: INFO/OFF/ON REMOTE 0~3 Exit INFORMATION PC INPUT/CV INPUT/OUTPUT/ VERSION/EXIT Exit Note: 1.
-
Page 10: Connection Diagram
Connection Diagram...
