- Page 1 HDBaseT HDMI Over CAT Cable Receiver w/ 5Play Convergence, Scaler, Format Converter - # 15267 Operation Manual...
- Page 2 Introduction The HDMI video scaler with LAN/IR/RS-232/Bidirectional PoE over Single CAT5e/6/7 Receiver can receive uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100m or over HDMI input with Bidirectional PoE feature. The system supports various ways of control that can be done through on-panel buttons, IR remote, RS-232 and OSD.
-
Page 3: Optical Out

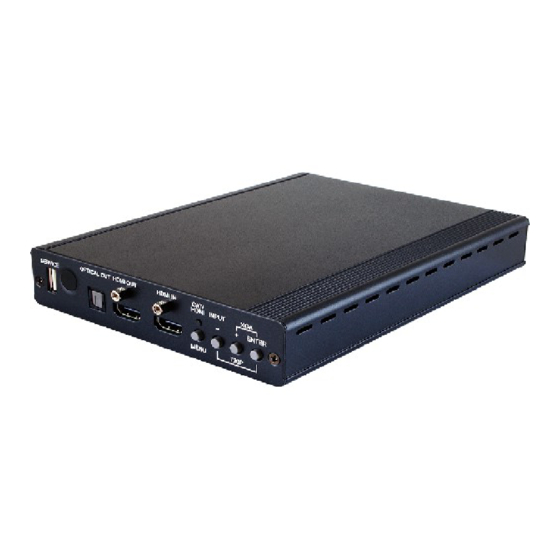

Operation Front Panel Controls and Functions 1. SERVICE: This port is reserved for firmware update only. IR Receiver window (accepts the remote control signal of this device only). OPTICAL OUT: Connect to an amplifier or active speaker with optical cable for audio output. -
Page 4: Mode Led
Rear Panel Power LED: This LED will illuminate when the device is connected to a power supply. DC 24V: Plug the 24 V DC power supply into the unit and connect the adaptor to an AC outlet. Only one side of power is needed to activate both Transmitter and Receiver when both obtain the PoE function. - Page 5 IR Cable PIN Assignment RS-232 Protocols CAT Cable Reciever Definition TX/RX TxD/RxD RxD/TxD Baud Rate: 9600bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...
- Page 6 RS-232 & Telnet Commands Command Description 1=HDMI S SOURCE 1~2 2=CAT IN Reports the numerical equivalent for SOURCE setting R SOURCE (as above) S OUTPUT 0~25 0=Native 12=1600×1200 1=640×480 13=1920×1080 2=800×600 16=1920×1200 3=1024×768 17=480p 5=1360×768 18=720p@60 6=1280×720 19=1080p@60 7=1280×800 20=1080i@60 8=1280×1024 22=576p 9=1440×900...
-
Page 7: Auto Adjust
R NR Reports the numerical equivalent for the NOISE REDUCTION setting (as above) 0=OFF 2=110ms S AUDIO DELAY 0~3 1=40ms 3=150ms Reports the numeric equivalent for AUDIO R AUDIO DELAY DELAY setting (as above) S AUDIO MUTE 0/1 0=ON 1=MUTE Reports the numeric equivalent for AUDIO R AUDIO MUTE MUTE setting (as above) - Page 8 Connections...
- Page 9 OSD Menu Layer layer Layer Display Output Native 640X480 60 800x600 60 1024x768 60 1360x768 60 1280x720 60 1280x800 60 1280x1024 60 1440x900 60 1400x1050 60 1680x1050 60 1600x1200 60 1920x1080 60 1920x1200 60 720X480P 60 1280X720P 60 1920X1080I 60 1920X1080P 60 720X576P 50 1280X720P 50...
- Page 10 Colour R Offset G Offset B Offset Contrast 0~60 Brightness 0~60 0~60 Saturation 0~60 Sharpness 0~60 Middle High Audio Delay 40mS 110mS 150mS Sound Mute Setup Factory Reset Key Lock Information Input Output Revision...
-
Page 11: Output Resolution Support
Output Resolution Support Input Resolution HDMI 480i/576i 480p/576p 720p@50/60 Hz 1080i@50/60 Hz 1080p@50/60 Hz VGA@60/72/75 Hz SVGA@56/60/72/75 Hz XGA@60/70/75 Hz SXGA@60/75 Hz UXGA@60 Hz 1280×800@60 Hz 1680×1050RB@60 Hz 1920×1080@60 Hz... - Page 12 Specifications Ethernet Speed 100 Mbps Input Video Bandwidth 300MHz / 10.2Gbps Output Video bandwidth 165MHz / 1.65Gbps Input Ports 1x CAT5e/6/7,1 x IR Extender, 1 x HDMI Output Ports 1 x HDMI,1×IR Blaster, 1 x Optical ,1 x RS-232, 1×LAN CAT5e/6/7 Output Cable Distance Up to 100 Meters HDMI output Resolution HD: Up to 1080p@60Hz...
