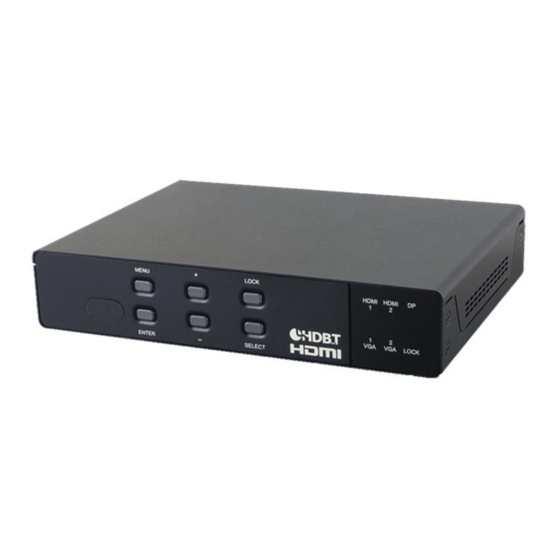

- Page 1 HDMI/Displayport/VGA to HDMI/HDBaseT Scaler ID # 15464 Operation Manual...
- Page 2 Introduction The Multi-inputs with HDMI and HDBT output scaler box supports 5 inputs of HDMI, VGA and DisplayPort. The input source is capable to switch and scale to adopt resolution then transmit over HDMI and HDBaseT. The HDTV resolution is achievable. Meanwhile, it offer flexibility application of audio which includes unbalance audio, MIC In and line out.
- Page 3 Operating Functions and Controls Front Views 1. IR Window: Receiving IR signal from remote control unit which come with scaler box. 2. “ Enter” button: Press this button to confirm the selection of On Screen Display (OSD) menu. 3. “ Menu”...
- Page 4 Service: The service slot is for firmware update via USB driver. Line out: Connects with amplifier for audio source broadcasting. MIC IN: Plug microphone in for audio source output. The phantom microphone is well supported. Phantom on/off: Arrange the slide switch to “on” for condenser microphone (5V) or “phantom”...
- Page 5 1. PC 1 & PC2: Connect to a PC/Laptop source for video signal input with D-Sub 15pin cable. 2. Display port: Connect to a PC / Laptop source for video signal input. 3. HDMI 1 & HDMI2: Connect to HDMI sources such as Blu-ray/DVD player for both video and audio signal.
- Page 6 9:1400x1050, 10:1680x1050, 11:1600x1200, 12:1920x1080, 13:1920x1200, 14:720x480P, 15:1280x720P60, 16:1920x1080I60, 17:1920x1080P60, 18:720x576P, 19:1280x720P50, 20:1920x1080I50, 21:1920x1080P50, 22:Native OUT1, 23:Native OUT2) r size Read output picture size S size 0 Set up over-scan for output picture (1:Full/2:Follow-Input/3:Pan- scan/4:Letter- Box/5:Under2/6:Under1) r hdmi1-hdcp Read HDCP status for HDMI 1 s hdmi1-hdcp 0 Active HDCP for HDMI 1 (1:disable HDCP for HDMI...
- Page 7 s hue 0 Set up hue 0 (hue adjustment from 0 to 60) r saturation Read color-blue status s saturation 0 Set up color-blue 0 (color-blue adjustment from 0 to 1023) Read hue status r sharpness s sharpness 0 Set up sharpness 0 (sharpness adjustment from 0 to 30) Read status of noise reduction r nr...
- Page 8 100) r hdmi 1-audio Read HDMI 1 audio source s hdmi-1 audio 0 Set up HDMI1 audio source at automatic (1:Analog / 2:Embedded) Read HDMI 2 audio source r hdmi2-audio s hdmi2-audio 0 Set up HDMI2 audio source at automatic (1:Analog / 2:Embedded) Read Display Port audio source r dp-audio s dp-audio 0...
- Page 9 100) r osd-display Read OSD display status s osd-display 0 Set up OSD display status to off (1:INFO,2:ON) Read MAC address r mac-addr r udp Read UDP address s udp 1 Set up UDP address at 1 (UDP address adjustment from 1 to 65535) Read IP mode r ip-mode...
- Page 10 support COMP IN) r edid-from Read the copied EDID from output source Set up the copied EDID output s edid-from 0 source as None (1:Out1, 2:out2, 3:Default) r edid-to Read the copied EDID from input source s edid-to 0 Set up the copied EDID input source as None (1:HDMI1, 2:HDMI2, 3:DP) Read active status of copied EDID...
- Page 11 OSD Menu OSD Selection Items Adjustable Parameters Input and output setting menu Picture setting menu Audio setting menu Miscellaneously setting menu Factory default and setting Menu Information Menu Source and Resolution Setting Menu: OSD Selection Items Adjustable Parameters SOURCE: HDMI1, HDMI2, DP, PC1, SIZE: OVER SCAN, FULL, FOLLOW INPUT, PAN SCAN, LETTER BOX,...
- Page 12 HDCP ON INPUT Menu: OSD Selection Adjustable OSD Selection Adjustable Items Parameters Items Parameters ON, OFF ON, OFF ON, OFF ON, OFF ON, OFF Picture Menu for HDMI1, 2, DP: OSD Selection Items Adjustable Parameters 0 ~ 60 0 ~ 60 0 ~ 1023 0 ~ 1023 0 ~ 1023...
- Page 13 Fine Tune Menu for PC1, 2: OSD Selection Items Adjustable Parameters NO, YES 0 ~ 60 0 ~ 60 0 ~ 30 700 ~ 2300 WXGA, XGA NO, YES Audio Menu: OSD Selection Items Adjustable Parameters OFF, MIC 0 ~ 100 OFF, 40ms, 110ms, 150ms OFF, ON 0 ~ 100...
- Page 14 Input Volume Menu: OSD Selection Items Adjustable Parameters 0 ~ 100 0 ~ 100 0 ~ 100 0 ~ 100 0 ~ 100 Miscellaneous Setting Menu: OSD Selection Items Adjustable Parameters Off, Scan All Auto Sync Off: Off, Fast (10 sec), Slow (120 sec) Note: The Auto sync off will stop when scan off be active...
- Page 15 Ethernet Setting Menu: OSD Selection Items Adjustable Parameters Static, DHCP 0~255, 0~255, 0~255, 0~255 0~255, 0~255, 0~255, 0~255 0~255, 0~255, 0~255, 0~255 1 ~ 65535 Factory default EDID SETUP: only provide EDID setting for HDMI and Display port. OSD Selection Items Adjustable Parameters None, Out1, Out2, Default None, HDMI1, HDMI2, DP...
- Page 16 WebGUI Please enter the IP address to log in WebGUI. If IP address is unware, please go to OSD menu information for getting it. Telnet o access the telnet control under MS windows, click ‘Start’ menu and type “cmd” in the search field then press enter. Under Mac OS X, go to Go →...
- Page 18 Once in the command line interface (CLI) type “telnet”, then the IP address and hit enter. The IP address is available once access to OSD information menu. Press “ ” then hit enter to bring up all available commands. Firmware Update: 1.
- Page 19 2. Click mouse right key for invoking Firmware update menu 3. Follow the instruction to update Firmware. The update Firmware file is CSC103TXPL_all.bin. IR Cable Pin Assignment D-Sub 9 Pin Definitions DEFINE TX/RX TxD/RxD RxD/TxD...
- Page 20 Cat5e/6/7 Cable Specification Cable Type Range Pixel Clock Video Data Supported Rate Rate Video Up to 1080p CAT5e/6/7 <=225MHz <=5.3 Gbps CAT5e/6/7 8 bits Timing Support Table PC, HDMI, DP HDMI & HDBT Output 480i x 576i 480p/576p 480p x 576p 720p@50&60 720p@50&60 1080i@50&60...
- Page 21 HDBT Features HDBase T Feature Supported Video & Audio RS232 Send power to Transmitter Not Available Send power to Receiver Remote Control Unit HDMI1 : HDMI 1 source input HDMI2 : HDMI 2 source input DP: Display Port source input PC1: PC1 source input PC2: PC2 source input MENU: Access to On Screen...
-
Page 22: Connection Diagram
Connection Diagram... - Page 23 Specifications Input Ports 2 x HDMI, 2 x VGA, 1 x Display Port 3 x unbalanced audio, 1 x MIC In Control Interfaces 1 x IR Out, 1 x IR In, 1 x Com Port (RS232), 1 x Service, 1 x Control 5 x Input Control, Output Ports 1 x HDMI, 1 x CAT5e/6/7 Out 1 x Line Out...
