AT840 Series User Manual

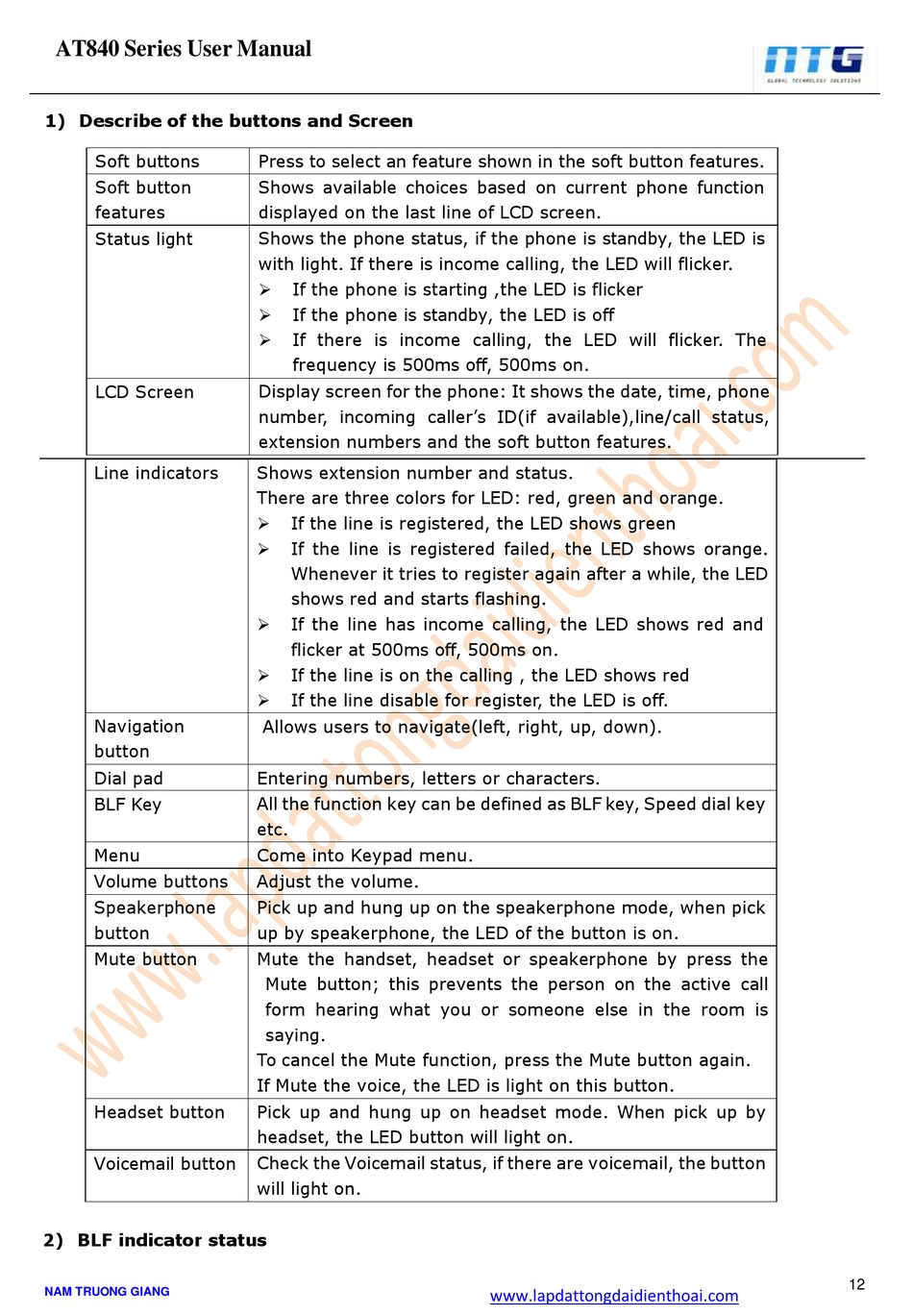

1) Describe of the buttons and Screen

Soft buttons
Soft button
features
Status light
LCD Screen
Line indicators
Navigation
button
Dial pad
BLF Key
Menu
Volume buttons
Speakerphone
button
Mute button
Headset button
Voicemail button

2) BLF indicator status

NAM TRUONG GIANG
Press to select an feature shown in the soft button features.
Shows available choices based on current phone function
displayed on the last line of LCD screen.
Shows the phone status, if the phone is standby, the LED is
with light. If there is income calling, the LED will flicker.
If the phone is starting ,the LED is flicker

If the phone is standby, the LED is off

If there is income calling, the LED will flicker. The

frequency is 500ms off, 500ms on.
Display screen for the phone: It shows the date, time, phone
number, incoming caller‟s ID(if available),line/call status,
extension numbers and the soft button features.
Shows extension number and status.
There are three colors for LED: red, green and orange.
If the line is registered, the LED shows green

If the line is registered failed, the LED shows orange.

Whenever it tries to register again after a while, the LED
shows red and starts flashing.
If the line has income calling, the LED shows red and

flicker at 500ms off, 500ms on.
If the line is on the calling , the LED shows red

If the line disable for register, the LED is off.

Allows users to navigate(left, right, up, down).
Entering numbers, letters or characters.
All the function key can be defined as BLF key, Speed dial key
etc.
Come into Keypad menu.
Adjust the volume.
Pick up and hung up on the speakerphone mode, when pick
up by speakerphone, the LED of the button is on.
Mute the handset, headset or speakerphone by press the
Mute button; this prevents the person on the active call
form hearing what you or someone else in the room is
saying.
To cancel the Mute function, press the Mute button again.
If Mute the voice, the LED is light on this button.
Pick up and hung up on headset mode. When pick up by
headset, the LED button will light on.
Check the Voicemail status, if there are voicemail, the button
will light on.
