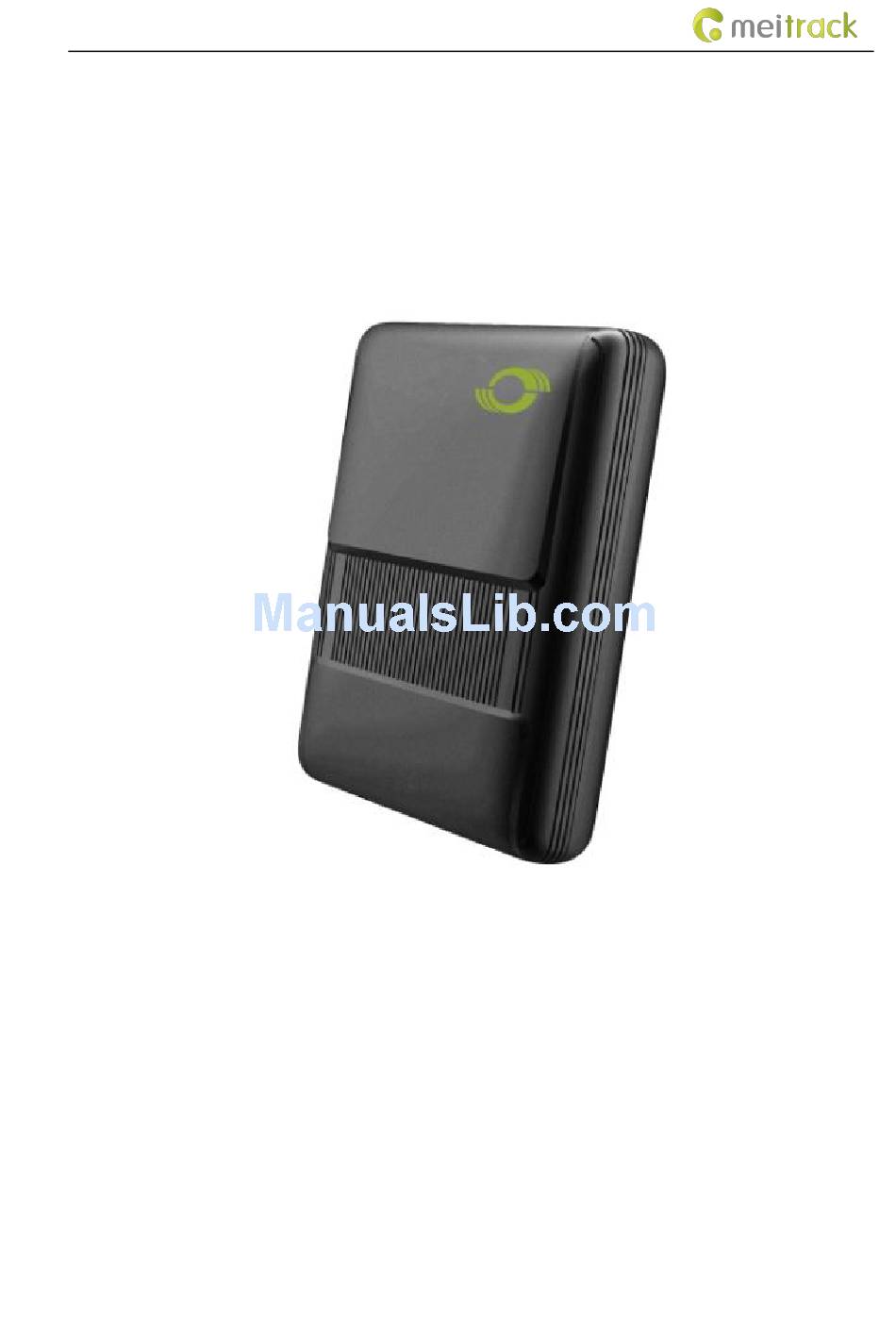

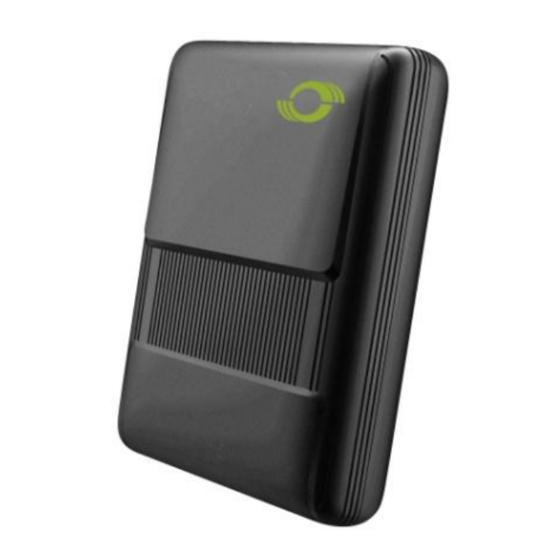

  • Page 1 MEITRACK T322X User Guide MEITRACK T322X User Guide...

  • Page 2: Change History

    Change History File Name MEITRACK T322X User Guide Created By Kyle Lv Product T322X Creation Date 2014-06-04 Update Date 2015-01-12 Subproject User Guide Total Pages Version V1.2 Confidential External Documentation Copyright © 2015 Meitrack Group All rights reserved. - 2 -...

  • Page 3: Table Of Contents

    3.3 Smart Sleep Mode ................................- 5 - 3.4 Data Compression Mode – CCC ............................- 6 - 3.5 Specifications ..................................- 6 - 4 T322X and Accessories ..................................- 7 - 5 View .......................................- 7 - 6 First Use ......................................- 8 - 6.1 Installing the SIM Card ................................- 8 - 6.2 Indicator....................................- 9 -...

  • Page 4: Copyright And Disclaimer

    The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording.

  • Page 5: Other Functions

    Scenario 1: The engine is not connected during detection. If the engine is off (ACC OFF), and the T322X had not been working for 15 minutes, it will automatically enter the power-saving sleep mode. In this way, the GPS module does not work, and the T322X does not upload tracking data at a regular interval.

  • Page 6: Data Compression Mode - Ccc

    Devices communicate with each other through Meitrack protocols. The data header and ending part are in the same format as the Meitrack protocol data format. The middle part of the data is uploaded in CCC data compression mode. For details about the CCC data, see the T322X data analysis manual.

  • Page 7: T322X And Accessories

    Standard accessories: T322X with a built-in battery I/O cable SOS button USB cable Optional accessories: Buzzer GPS antenna Microphone Audio cable 5 View Microphone interface Power & functional cable interfaces Copyright © 2015 Meitrack Group All rights reserved. - 7 -...

  • Page 8: First Use

    6 First Use 6.1 Installing the SIM Card The following figure shows the SIM card slot: SIM card Remove the SIM card cover, and insert the SIM card to the slot. Copyright © 2015 Meitrack Group All rights reserved. - 8 -...

  • Page 9: Indicator

    Connect the T322X to an external power supply. Note: If the T322X is charged by using a USB cable or connecting an external power supply, the T322X has been working. To restart the T322X, just press and hold down the power button.

  • Page 10: Tracking And Anti-Theft

    Use a mobile phone with an authorized phone number to call the T322X SIM card number. The calling enters the smart voice mode automatically. Press 4 on the mobile phone according to the voice prompt. An SMS report about the T322X address link will be received. Click the link to view the T322X location on the map.
  • Page 11 Latitude : 22.513015 =114.057235 Longitude : 114.057235 If your mobile phone does not support HTTP, enter the latitude and longitude on Google Maps to query a location. More SMS Commands Copyright © 2015 Meitrack Group All rights reserved. - 11 -...

  • Page 12: Setting Authorized Phone Numbers

     Set by voice: Dial the T322X SIM card number by using an authorized mobile phone number to set the smart voice function. After dialing, the following voice prompt is played: "Hello. Arming, press 1; disarming, press 2; query arming status, press 3;...

  • Page 13: Ms02 Tracking System

     Configured by Meitrack Manager: Connect the tracker to a PC, run Meitrack Manager to enter the main screen, and click the Tracking tab to set parameters, including enabling the TCP, and setting the IP address, port, APN, and GPRS tracking interval.

  • Page 14: Installing The T322X

    MEITRACK T322X User Guide Obtain the tracker IMEI number from the packing or Meitrack Manager, register a device, set the parameters shown in the following figure, and then click Save. Double-click a device in the panel on the right, and check whether data is updated in Status.
  • Page 15 Formulas for calculating AD analog:  AD1/100 (External analog detection value)  AD4/100 (AD4 is the built-in battery voltage by default.)  Analog input AD5/100 (AD5 is the external power voltage by default.) Copyright © 2015 Meitrack Group All rights reserved. - 15 -...

  • Page 16: Port View

    Connect the power cable (red) and ground wire (black) to the positive and negative electrodes of the vehicle battery respectively. 8.2.4 ACC and Door Detection Different models of cars may be triggered differently. Connect the door detection after a correct trigger mode is set for the tracker. Copyright © 2015 Meitrack Group All rights reserved. - 16 -...

  • Page 17: Remote Power Cut-Off

    8.3 Mounting the T322X Fasten the T322X in the vehicle by using cable ties. The T322X is portable. It can be connected to a cigar lighter of the vehicle through an RS232 port by using a USB cable (5V input).
